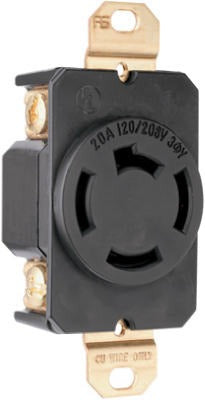

Pass Seymour 7410 Locking Outlet 20A 125/208V Black

Product Description

The PASS SEYMOUR 7410 is a non-NEMA locking outlet rated for 20 amps at 125/208 volts, designed for commercial and industrial electrical installations where a secure, locked connection is required. The face and body are constructed from compact, impact-resistant nylon, making the unit durable in demanding environments. Internal contacts are one-piece high-grade brass for reliable conductivity and long service life. Each unit carries UL listing, CSA certification, and Federal Specification compliance. Licensed electricians install this device in panel-fed branch circuits where inadvertent disconnection must be prevented.

The 7410 is suited for commercial, institutional, and light industrial settings where 125/208-volt, 20-amp locking receptacles are specified. Typical applications include equipment hookups requiring a positive lock against accidental disconnection, such as powered carts, portable HVAC units, and instrumentation. The outlet ships in a box quantity of 10 units, making it practical for multi-unit rough-in or replacement work on a single job site.

Key Features

• Non-NEMA locking configuration rated 20A at 125/208 volts
• Impact-resistant nylon face and body for durability in commercial environments
• One-piece high-grade brass contacts for consistent electrical performance
• NEMA configuration rating and third-party listing clearly marked on each unit face
• UL listed, CSA certified, and Federal Specification compliant
• Packed 10 units per box for efficient multi-unit installations

Compatibility

Designed as an OEM-style replacement or new-install locking outlet for 20-amp, 125/208-volt non-NEMA branch circuit applications in commercial and industrial electrical systems.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the branch circuit at the panel before removing an existing device or wiring the new outlet. Verify that the supply circuit voltage and ampacity match the 20A, 125/208V rating of this outlet before energizing. Do not exceed the device amperage rating or use with conductors undersized for a 20-amp circuit.
