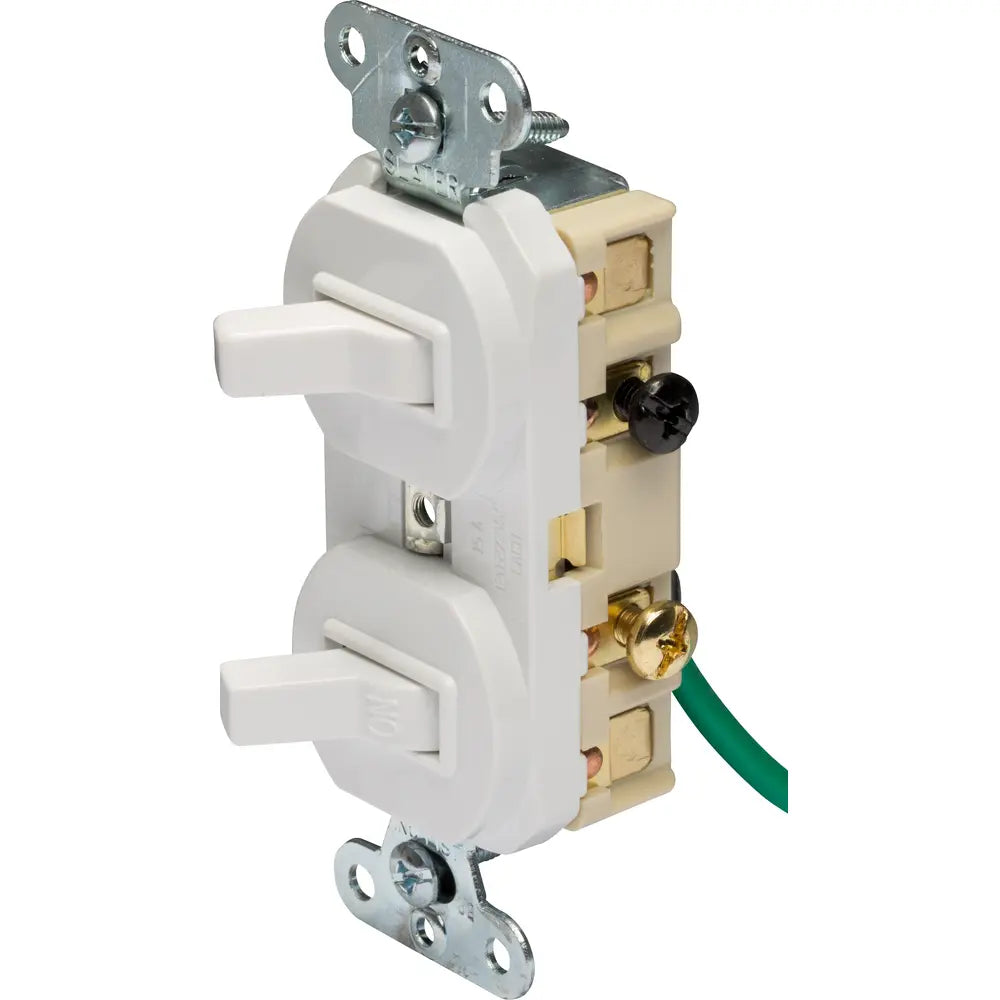

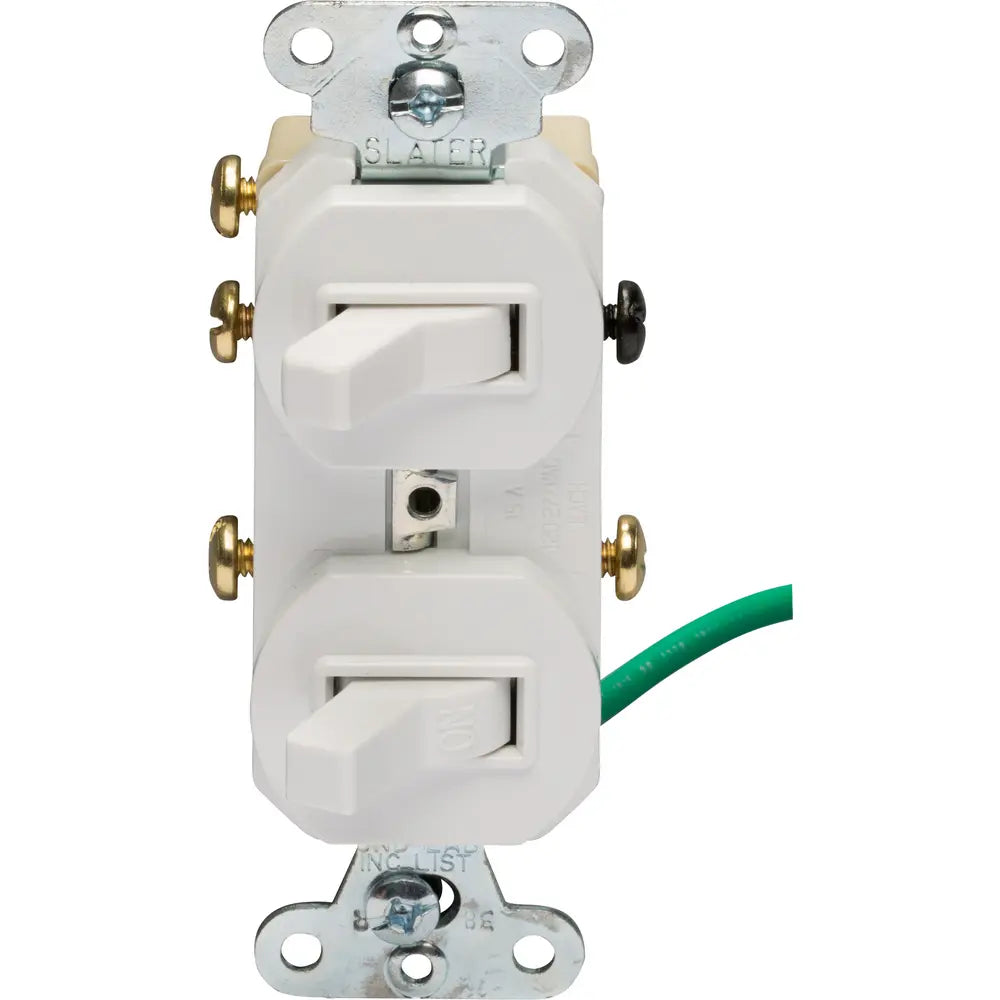

Pass & Seymour 696WG 15A Combination Switch, 120/277 VAC, Side Wire, Single-Pole, White

Product Description

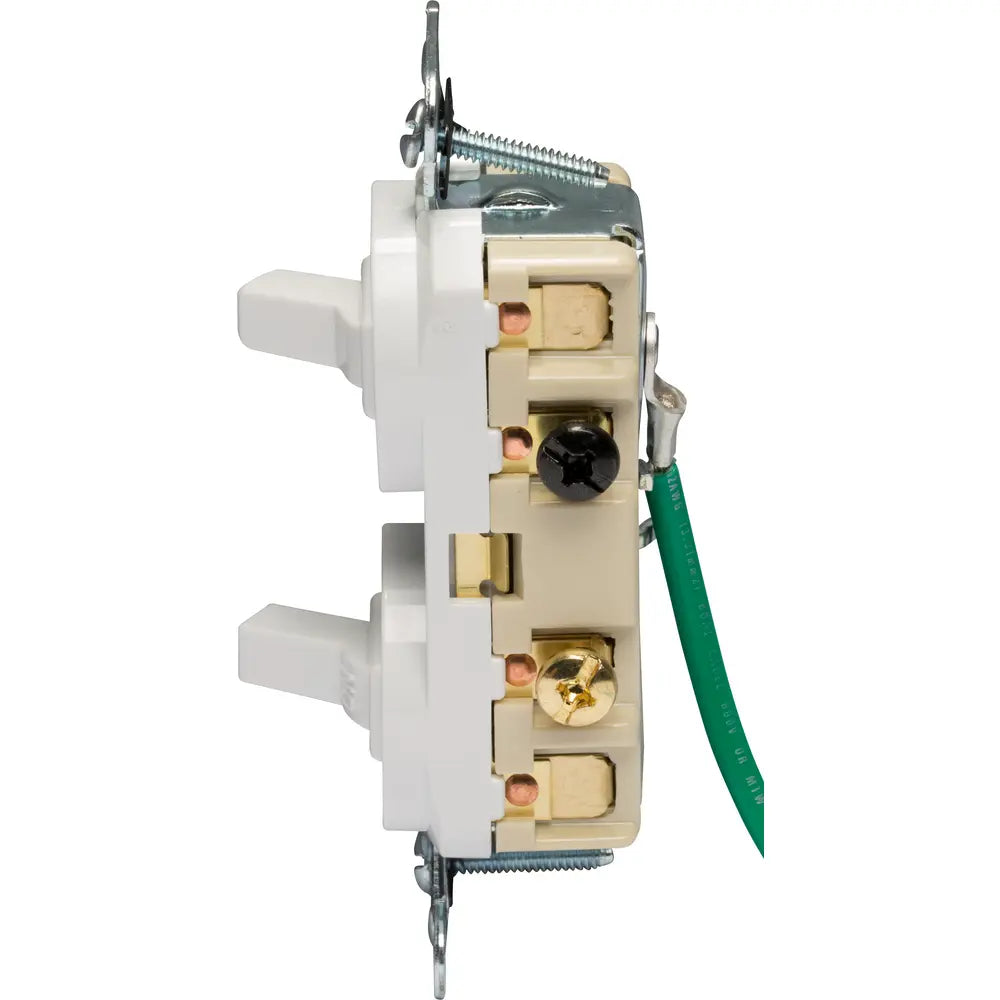

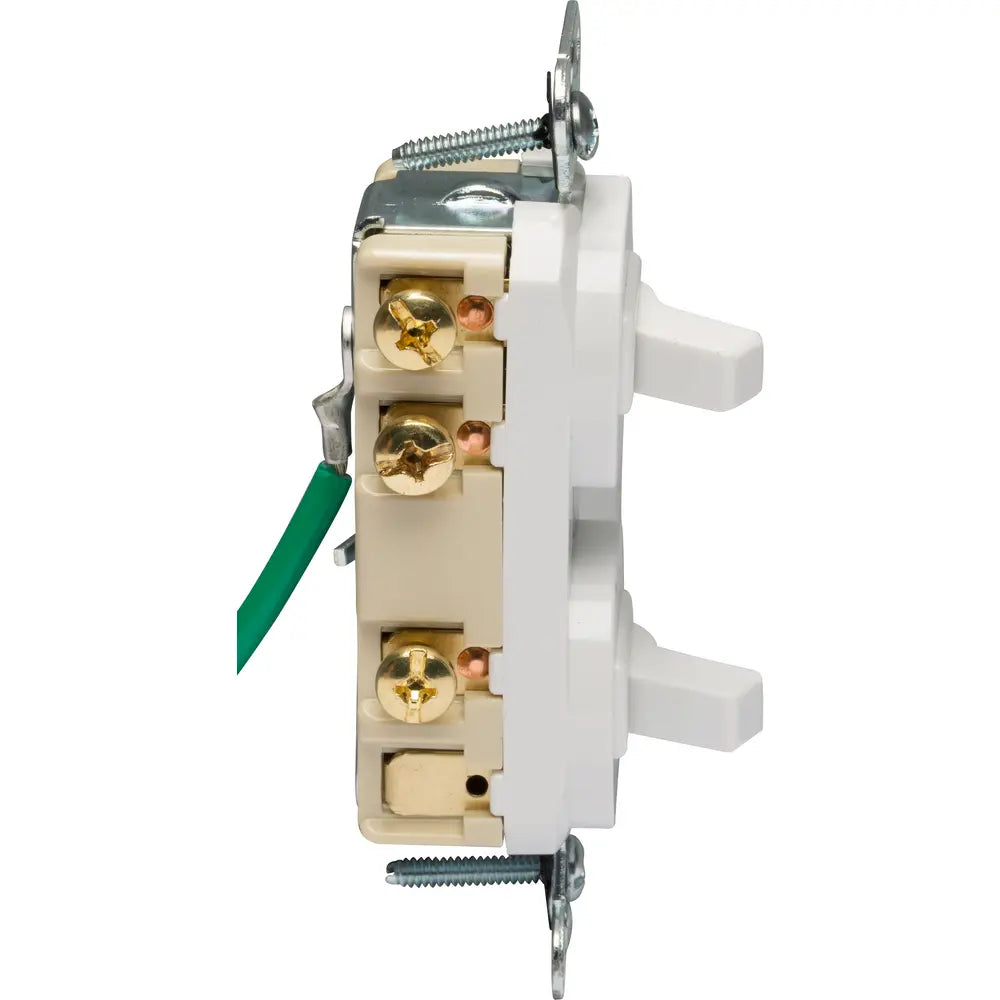

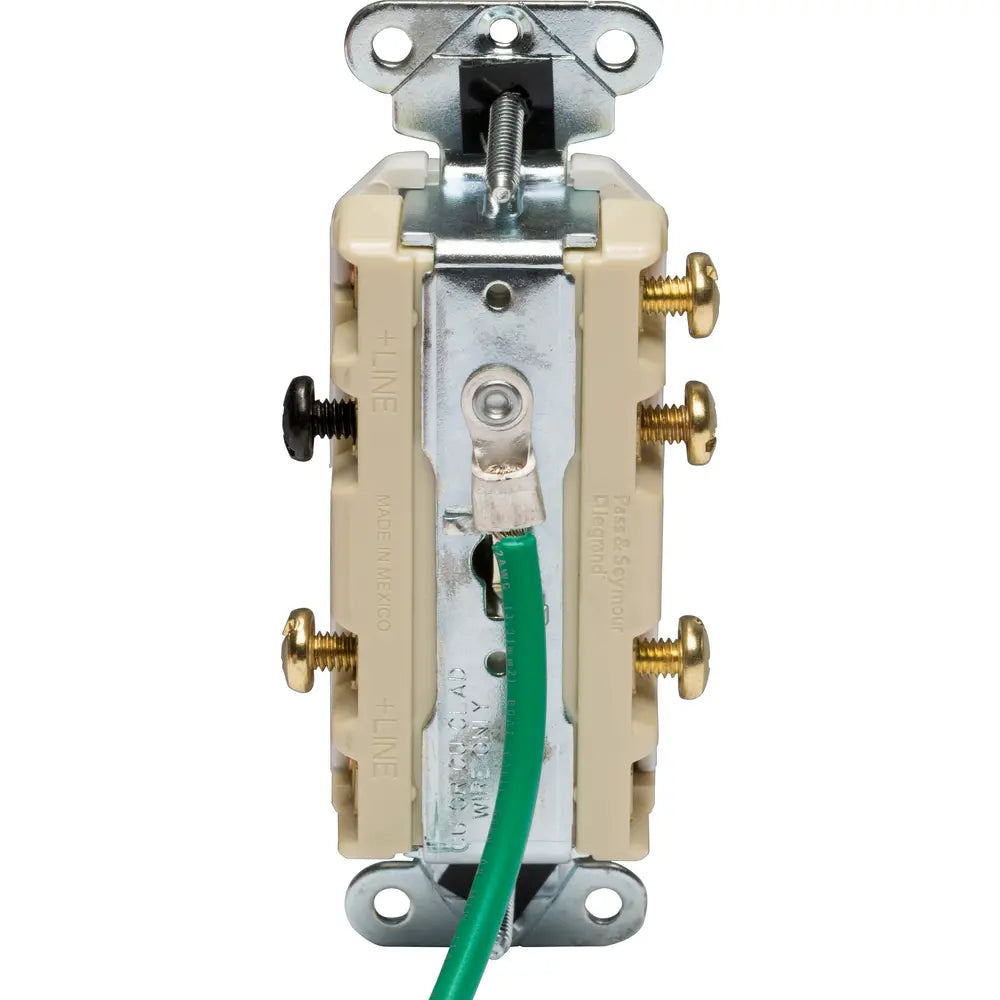

The Pass & Seymour 696WG is a 15A combination switch designed for 120/277 VAC applications. This single-pole device features side wire connections for ease of installation. It allows for a break-off separate or common feed, with the capacity to accommodate both #12 and #14 AWG wires. It is suitable for installation where space is limited, as two devices fit into the space of one.

• 15A rating suitable for most residential and commercial settings
• Meets NEC requirements for grounding
• UL20 listed for safety compliance

Product Highlights

This combination switch is effective for various settings, providing dependable operation in residential and commercial environments.

Product Information

Standard Information

• Brand: Pass & Seymour
• Part Number: 0128-1492

Technical Specifications

• UPC: 785007006230
• Voltage Rating: 120/277 VAC
• Amperage Rating: 15 Amperes
• Contact Rating: 15 Amperes at 120/277 VAC
• Number of Poles: Single-Pole
• Dimensions: 1.32 inches Width x 0.94 inches Depth x 3.28 inches Height
• Operating Temperature: -22°F to 140°F
