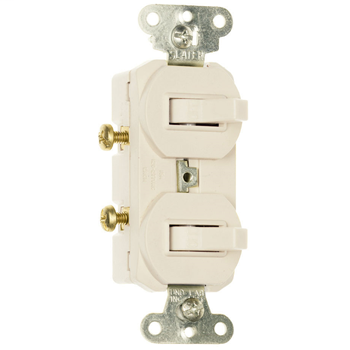

Pass & Seymour 696LA Combination Switch 15 Amps 120/277V - Single Pole, Three-way

Product Description

The Pass & Seymour 696LA is a combination switch suitable for residential and commercial use. It operates at 15 amps and works with voltage levels of 120/277 volts. This single pole, three-way switch comes in a light almond color and is designed for easy installation in various settings.

• Easily accessible break-off for separate or common feed.
• Long-life red neon lamp rated for 1/25 watt, 125 volts.
• Side wire compatible with #12 and #14 AWG.

Product Highlights

This switch features a tamper-resistant design with a dual mechanical shutter system to prevent foreign object insertion. It meets NEC requirements for grounding combination devices. The compact design allows two devices to fit into one space, optimizing installation.

Product Information

Standard Information

• Brand: Pass & Seymour
• Color: Light Almond

Technical Specifications

• MPN: 696LA
• Voltage: 120/277 Volt
• Amperage: 15 Amp
• Dimensions: 1.32 L x 0.94 W x 4.06 H inches
• Type: Combination, Double
• Connection Type: Non-grounding, Side Wire
• Contact Rating: 120 V
• Operating Cycles: 30000
