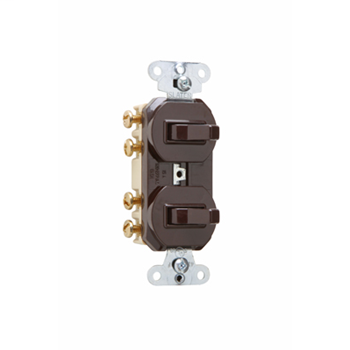

Pass & Seymour 693 15 Amp 120/277 VAC 3-Way Brown Non-Grounding Duplex Combination Switch

Product Description

The Pass & Seymour 693 is a combination switch that operates at 15 amps and 120/277 volts. It features a three-way toggle, making it suitable for various applications in residential and commercial settings. This brown non-grounding duplex combination switch is ideal for controlling lights from multiple locations.

• Easily accessible break-off for separate or common feed.
• Long-life red neon lamp pilot light rated for 1/25 watt and 125 volts.
• Supports side wiring with twelve and fourteen AWG connections.

Product Highlights

This device allows two switches to fit into one space, providing a practical solution for tight installations. It meets NEC requirements for grounding combination devices.

Product Information

Standard Information

• Brand: Pass & Seymour
• Type: Non-grounding Combination Switch

Technical Specifications

• Amperage: 15 Amp
• Voltage: 120/277 VAC
• Height: 3.28 inches
• Width: 1.32 inches
• Depth: 0.94 inches
• Operating Temperature: Maximum continuous 60 degrees Celsius, minimum -30 degrees Celsius
• Approval: UL 20
• Country of Origin: Mexico
