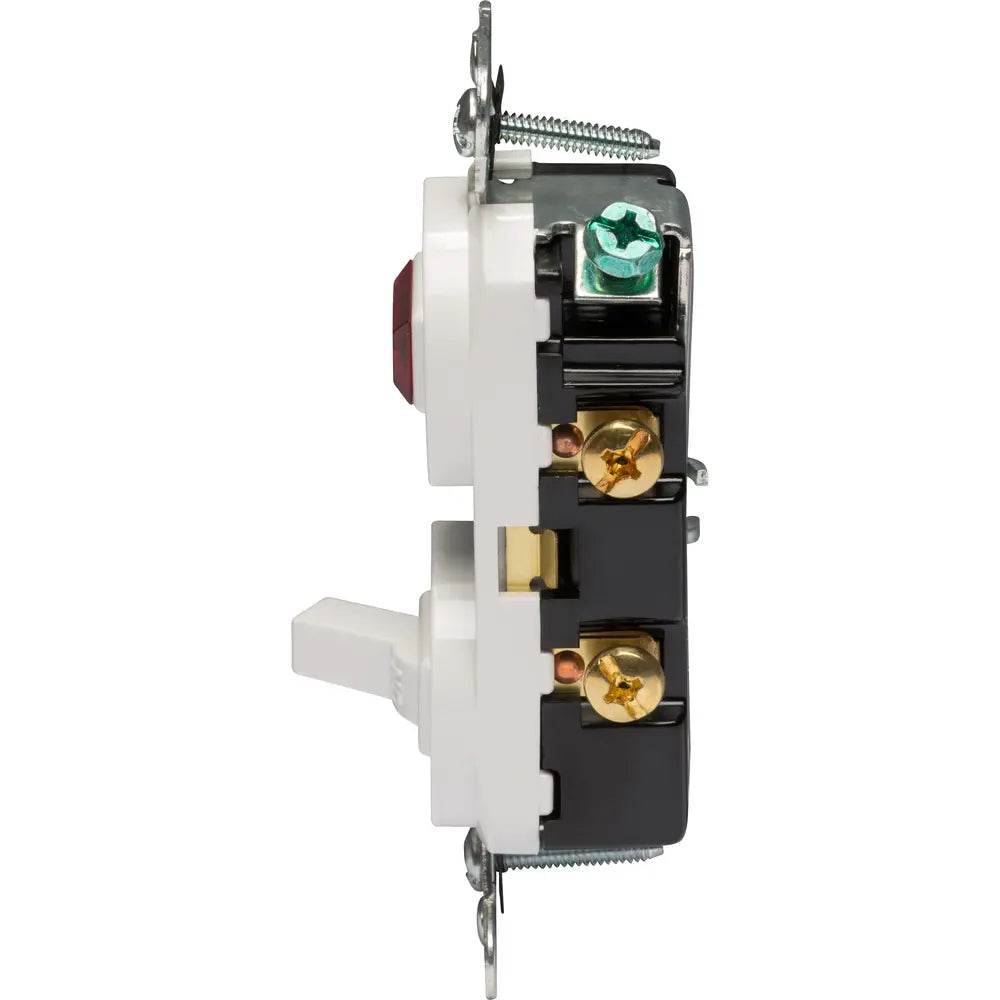

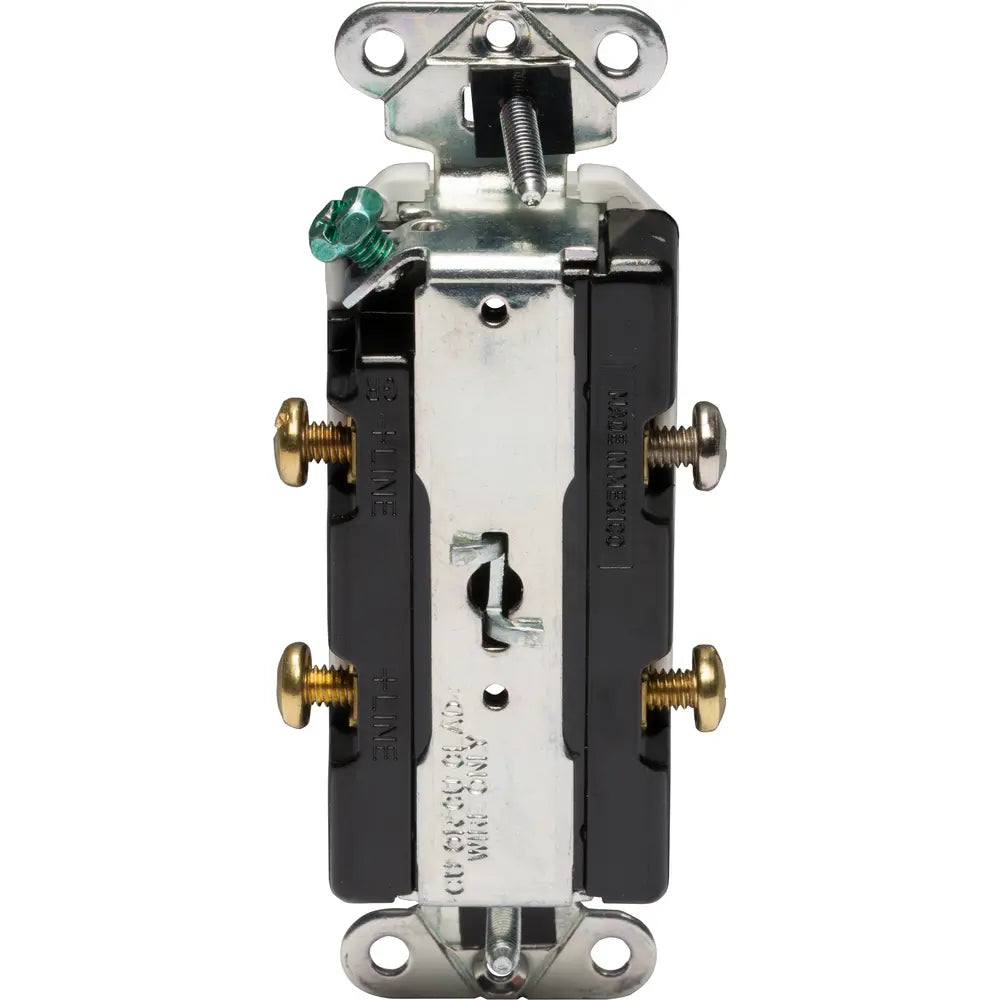

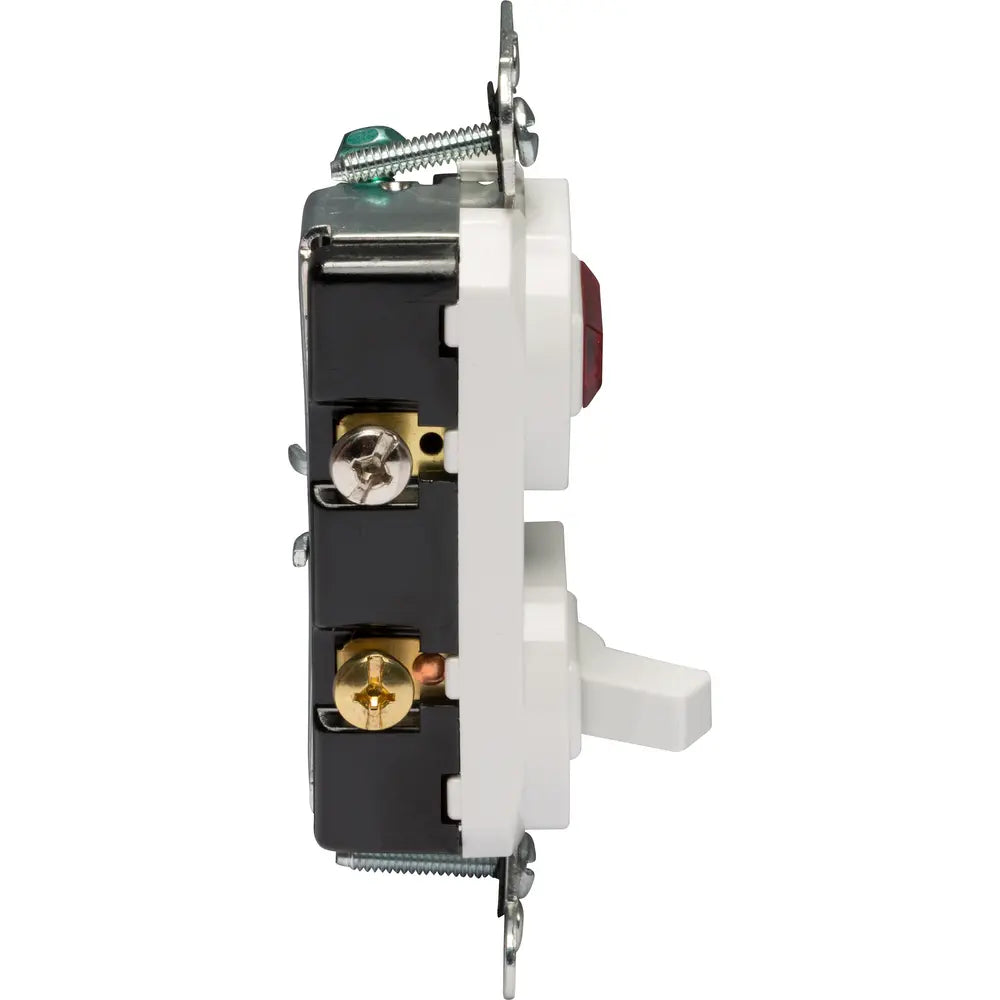

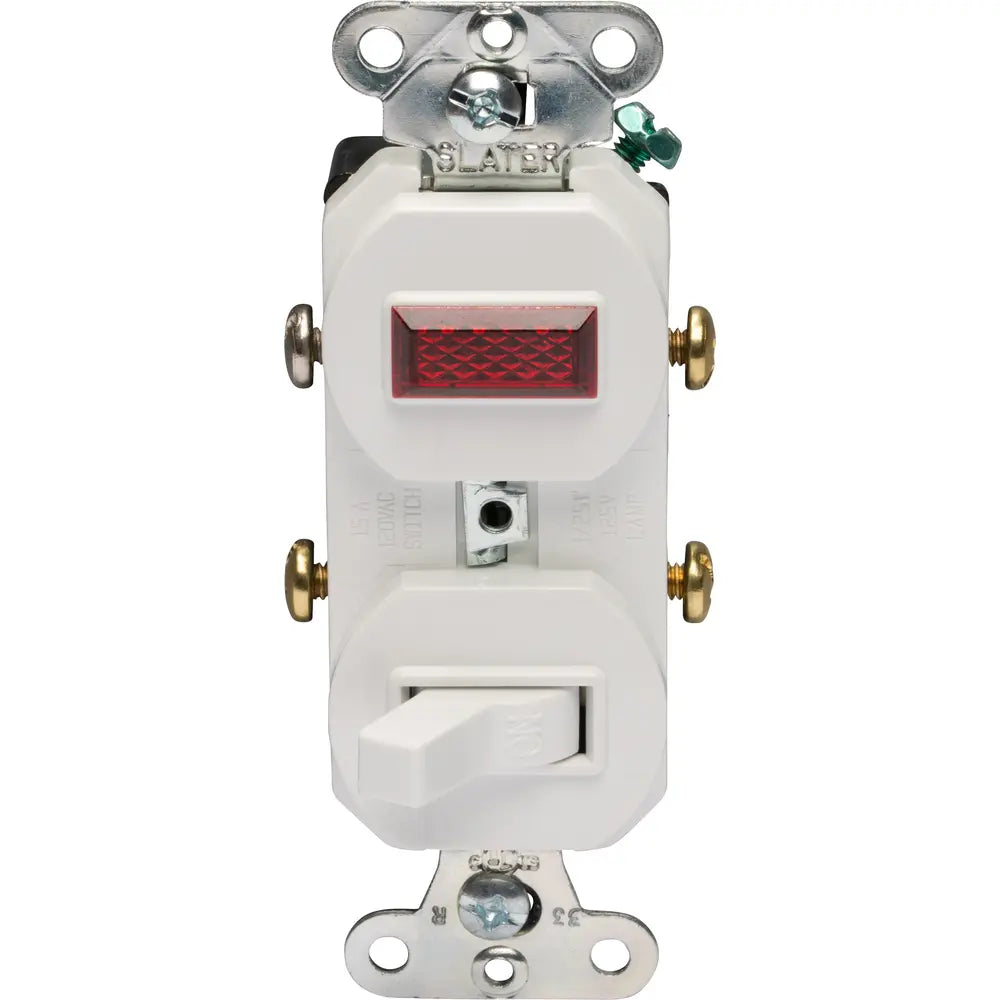

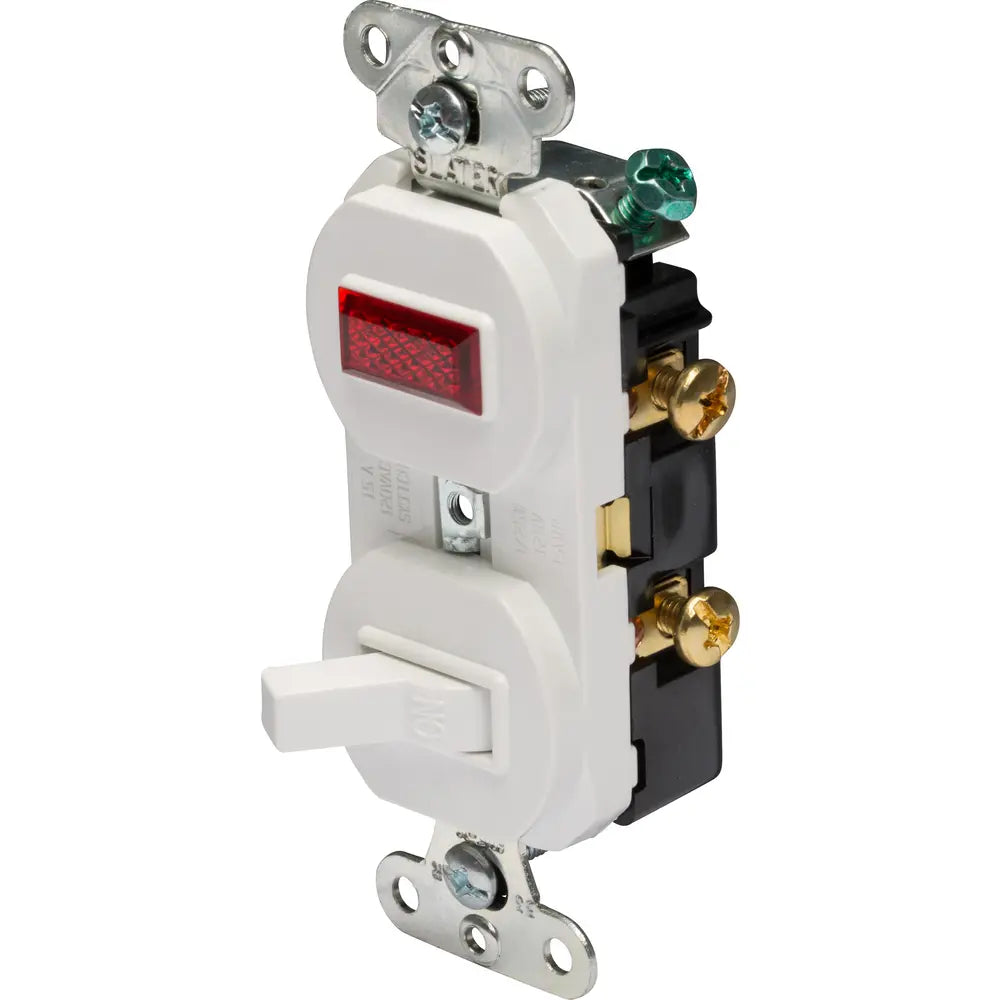

Pass & Seymour 692WG Single-Pole Combination Switch and Pilot Light 15A 120/125VAC

Product Description

The Pass & Seymour 692WG is a single-pole combination switch and pilot light designed for 15 amperes at 120/125 volts alternating current. This device features an accessible break-off for separate or common feed. It includes a long-life red neon lamp rated at one-twenty-fifth watt, 125 volts. The switch supports side wiring with gauge sizes of twelve and fourteen AWG. This allows for two devices to fit into the space of one.

• Break-off design for separate or common feed
• Long-life neon pilot light rated at 1/25 watt
• Accommodates side wiring with gauge sizes #12 and #14 AWG

Product Highlights

This switch is ideal for installations requiring a combination of a standard switch and a pilot light, ensuring visibility in low-light conditions.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer: Pass & Seymour

Technical Specifications

• MPN: 692WG
• Type: Toggle / Pilot Light Switches
• Color: White
• Voltage Rating: 120/125 VAC
• Amperage Rating: 15 Amperes
• Number of Poles: Single-Pole
• Contact Configuration: N-O
• Operating Temperature: -30°C to 60°C
• Environmental Conditions: Dry Location
• Weight: 0.21 Pounds
• Height: 3.3 Inches
• Width: 1.3 Inches
• Depth: 1.2 Inches
• Contact Rating: 15 Amperes at 120/125 volts
• Mounting: Surface
• Standard: UL20
