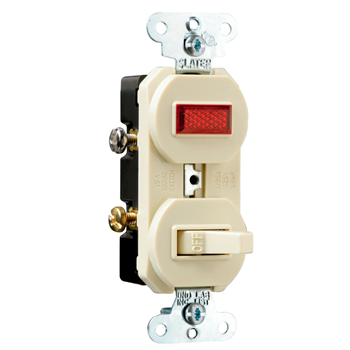

Pass & Seymour 692I Combination Switch and Pilot Light 15 Amps 120 Volt

Product Description

The Pass & Seymour 692I is a combination switch with a pilot light rated for 15 amps and 120 volts. This single pole switch features a built-in pilot light which indicates the power status. It is suitable for residential and commercial applications where visibility of the power status is important.

• Easily accessible break-off for separate or common feed.
• Long-life red neon lamp in pilot light rated at 1/25 watt, 125 volts.
• Compatible with side wiring for ease of installation.

Product Highlights

This combination switch is designed to fit two devices into the space of one. It meets NEC requirements for grounding combination devices and is available in ivory color.

Product Information

Standard Information

• Brand: Pass & Seymour
• Type: Combination, Pilot Light

Technical Specifications

• MPN: 692I
• Voltage: 120 Volt
• Amperage: 15 Amp
• Wattage: 0.04 Watt
• Height: 3.28 inches
• Width: 1.32 inches
• Depth: 0.94 inches
• Approval: UL 20/498
