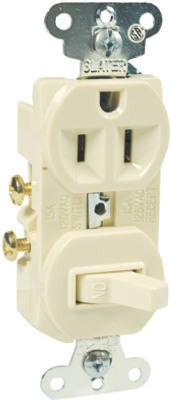

Pass Seymour 691ICC6 Combination Switch Outlet 15A 125V

Product Description

The PASS SEYMOUR 691ICC6 is a combination switch and duplex outlet rated at 15 amps and 125 volts, designed for standard residential and light commercial electrical installations. This single-gang device integrates a toggle switch and a NEMA 5-15R grounded receptacle into the space of one conventional device, making it a practical solution wherever a switched circuit and a general-purpose outlet are needed at the same location. The 3-wire grounding, 2-pole configuration meets common branch circuit requirements, and the ivory finish suits standard wall plate applications. Licensed electricians are the primary installers of this device.

The 691ICC6 is suited for residential rooms, garages, utility spaces, and light commercial settings where a single gang box must serve both switching and receptacle functions. The side-wire terminations allow straightforward installation in standard single-gang boxes. A break-off tab on the device provides the option for separate feed or common feed wiring, giving the installer flexibility to control the outlet from the switch or to keep the outlet always live. The window box bulk packaging format is appropriate for contractor use. Package quantity is 6 units per pack.

Key Features

• Combines a toggle switch and a duplex NEMA 5-15R receptacle in a single-gang footprint
• Break-off tab allows separate or common feed wiring without additional parts
• Side-wire terminations for straightforward conductor connection
• 3-wire grounding, 2-pole design meets standard branch circuit grounding requirements
• UL listed and CSA certified
• Ivory finish compatible with standard single-gang wall plates

Compatibility

Designed as an OEM-style replacement or new-installation device for standard single-gang electrical boxes requiring a combination switch and grounded duplex outlet in a 15A, 125V, NEMA 5-15R configuration.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Shut off the branch circuit breaker and verify the circuit is de-energized with a non-contact voltage tester before beginning work. Side-wire terminations should be secured to the appropriate torque rating listed on the device label. Use the break-off tab to configure separate or common feed before securing the device in the box.
