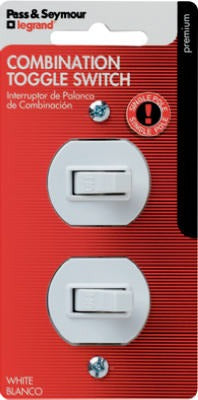

Pass Seymour 690WGCCC5 Combo Switch 15A 120/277V White 5 Pack

Product Description

The PASS SEYMOUR 690WGCCC5 is a dual single-pole combination switch device rated for 15 amps at 120 or 277 volts. It houses two independent single-pole switches in a single-gang form factor, allowing control of two separate circuits from one wall box. The white finish suits standard residential and commercial trim. A grounding connection is built in, and a break-off tab on the device allows the installer to configure either a common feed or separate feed arrangement without additional wiring adapters. Electricians use this device to reduce box fill and consolidate switching points in commercial lighting and HVAC control applications.

This combination switch is suited for both residential and light commercial installations, particularly where two switched circuits must share a single-gang opening. Common applications include controlling two lighting circuits, a fan and light combination, or separate HVAC loads from one location. The 277-volt rating makes it appropriate for fluorescent and LED commercial lighting circuits fed from a 480Y/277-volt panel. Each package contains 5 units, making it practical for multi-room or multi-floor projects. The device ships carded for retail or counter display.

Key Features

• Dual single-pole switches in one single-gang device for reduced box fill
• Rated 15 amps at 120 or 277 volts for residential and commercial lighting circuits
• Break-off tab enables common feed or separate feed wiring without added components
• Built-in grounding connection meets standard grounding requirements
• White finish for compatibility with standard decorator and traditional wallplates
• Carded packaging; 5 units per package

Compatibility

Designed as an OEM-style replacement or new-installation switch for standard single-gang electrical boxes in residential and commercial 120-volt or 277-volt switching applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit at the breaker panel and verify absence of voltage with a meter before making any wiring connections. The break-off tab determines whether both switches share a common line feed or operate on independent feeds — review the wiring diagram supplied with the device before cutting the tab. Standard single-gang boxes must have sufficient cubic-inch capacity for the conductors and device per NEC fill calculation requirements.
