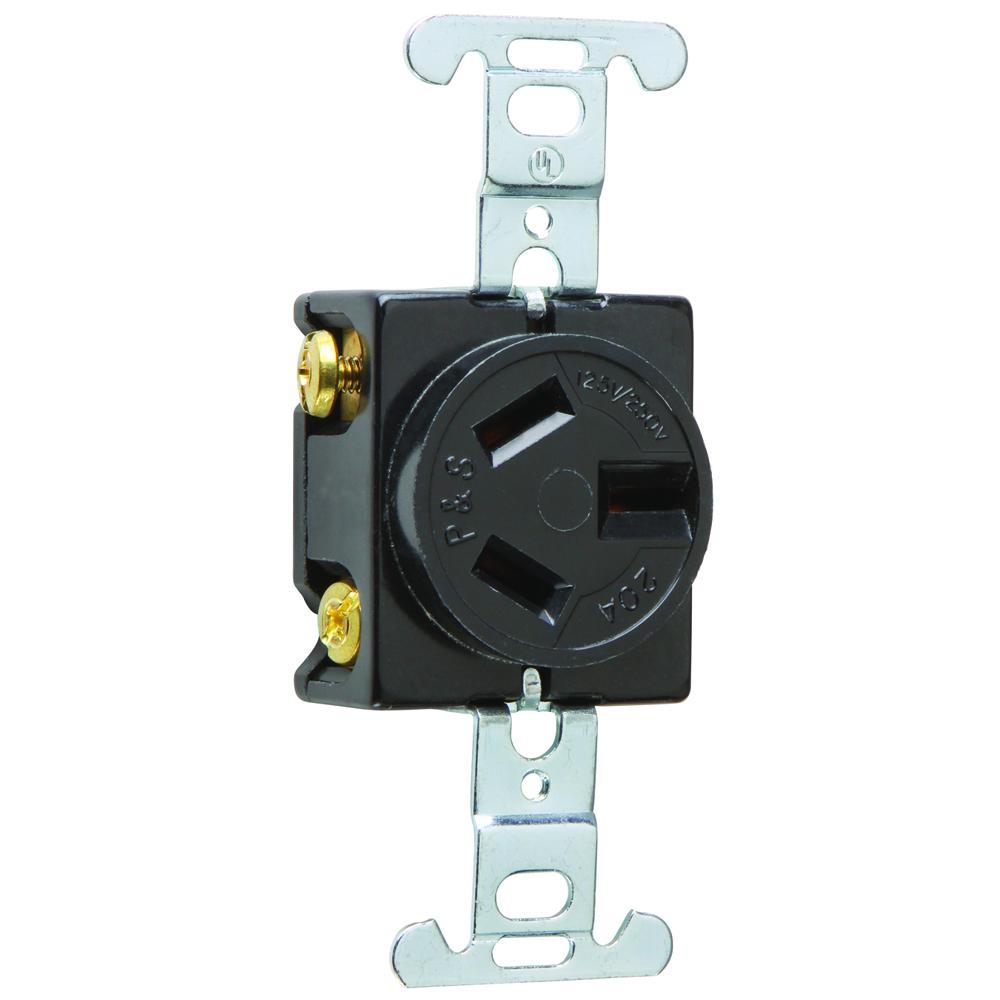

Pass & Seymour 6810 Flush Non-Grounding Single Straight Blade Receptacle 125/250 VAC

Product Description

Pass & Seymour 6810 is a flush non-grounding single straight blade receptacle designed for a voltage of one hundred twenty-five to two hundred fifty volts alternating current (VAC) and a current rating of twenty amps. It features two poles and three wires, following the NEMA 10-20R standard. Constructed from durable nylon, this commercial-grade receptacle is suitable for various wiring applications.

• Rated for 125/250 VAC
• Compatible with 14 to 12 AWG wire size
• Dimensions: 3.3 inches high x 1.15 inches deep

Product Highlights

This receptacle offers reliable performance for electrical installations in residential and commercial settings.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer: Legrand

Technical Specifications

• Type: Flush Non-Grounding Single
• Voltage Rating: 125/250 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Grade: Commercial
• NEMA Rating: NEMA 10-20R
• Material: Nylon
• Color: White
• Dimensions: 3.3 inches H x 1.15 inches D
