Pass & Seymour 663IG Toggle, Grounding Type, Thermoplastic 1.25 Inches Replacement MPN

Product Description

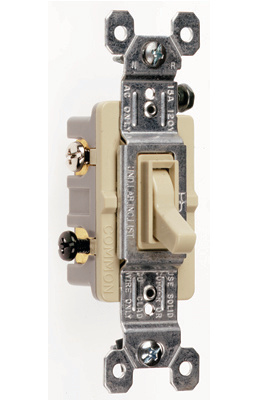

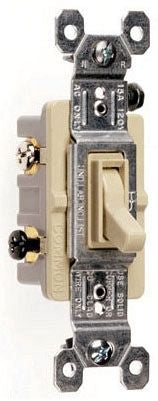

The Pass & Seymour 663-IG toggle switch is designed for both residential and commercial applications. It operates at one hundred twenty volts AC and can handle up to fifteen amps. This switch is made of thermoplastic material, ensuring durability for frequent use.

• Grounding type ensures electrical safety.
• Compatible with 14 to 12 AWG side wire and 14 AWG push wire.
• UL listed and meets NEMA standards for reliable performance.

Product Highlights

This toggle switch is designed for easy installation and features side and push-wire connections. Its thermoplastic frame provides resistance to impact, making it suitable for various environments.

Product Information

Standard Information

• Manufacturer: Pass & Seymour
• Part Number: 663-IG

Technical Specifications

• Voltage Rating: 120 VAC
• Amperage Rating: 15 A
• Grounding Type: Self-grounding
• Material: Thermoplastic
• Dimensions: 3.281 inches H x 1.25 inches W x 1.09 inches D
• Number of Poles: 3
• Installation Type: Wall
