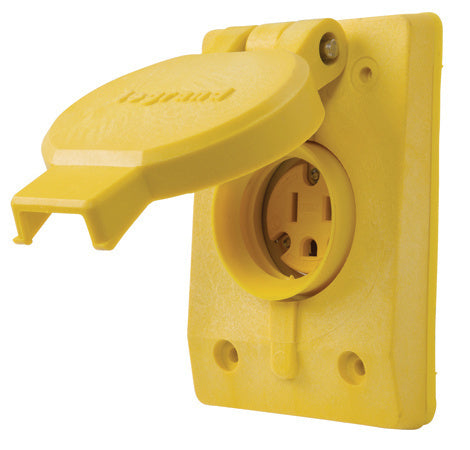

Pass & Seymour 60W47 watertight straight blade single receptacle 15A, 125V

Product Description

The Pass & Seymour 60W47 is a watertight receptacle suitable for commercial applications. This straight blade single receptacle is rated for 15A and 125V. Ideal for mining, mills, and other locations needing a robust electrical connection. It features a Valox lid, cover plate, and receptacle body for impact, chemical, and corrosion resistance.

• Impact-resistant Valox lid, cover plate and receptacle body withstand impacts, chemical & corrosion.
• Spring-loaded flip cover provides protection when device is not in use.
• Stainless-steel hinge spring and pin ensure corrosion resistance.

Product Highlights

Watertight receptacle with a spring-loaded flip cover for protection in harsh environments.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part Number: 60W47
• Country of Origin: United States

Technical Specifications

• Color: Yellow
• Application Sector: Commercial
• Product Line: Pass & Seymour
• Country Of Origin: United States
• Standard: CSA Listed, FSUL, UL Listed
• UPC Number: 785007033694
• Listing Agencies / 3rd Party Agencies CSA Listed: Yes
• Amperage: 15 A
• Connection: Cable
• Environmental Conditions: Moisture Resistance NEMA 3R (Flip Lid Assemblies/Back Boxes) Flammability UL94V0 (boxes & wiring device interiors) UL94V2 (cover plates) UL94HB (wiring device housings, flip lid seals) Operating Temperature -40 00b0C (without impact) to +60 00b0C continuous UV Resistance All exposed materials are UV stabilized
• Number of Poles: Double Pole
• Number of Wires: 3
• Operating Temperature: -40 00b0-60 00b0C
• Operating Temperature Max: 60 00b0C
• Operating Temperature Min: -40 00b0C
• Phase: Single
• Wire Size: 18 - 12 AWG
• Application: Commercial
• Mounting Type: Surface
• Color Family: Yellow
• Current Rating: 15 A
• Grade: Industrial
• Manufacturer Part Number: 60W47
• NEMA Rating: 5-15R
• Primary Type: Straight Blade
• Termination: screw
• Type: Receptacle
• Voltage Rating: 125 V
