Pass & Seymour 5850-W Commercial Spec-Grade Single Receptacle 20A 250V

Product Description

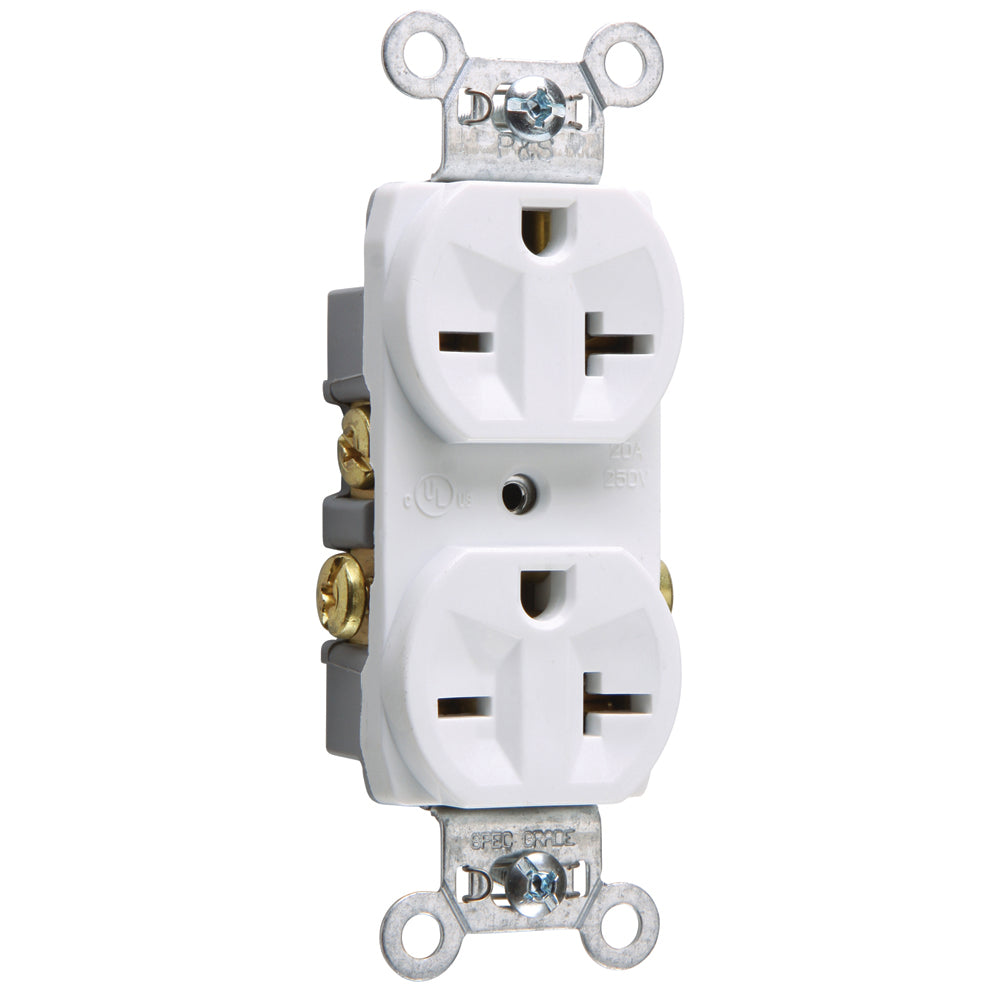

The Pass & Seymour 5850-W is a commercial spec-grade duplex receptacle designed for side wiring, rated at 20A and 250V. Features a corrosion-resistant, plated steel strap locked into the face and back body. The receptacle has an impact-resistant nylon face and thermoplastic back body.

• Corrosion-resistant, plated steel strap locked in to face and back body.
• Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
• Accepts #14 - #10 AWG solid or stranded copper or copper-clad wire.

Product Highlights

Ideal for commercial applications, this receptacle offers durability and ease of installation with its robust construction and convenient wiring features.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part Number: 5850-W
• Country of Origin: Mexico

Technical Specifications

• Color: White
• Finish: Matte
• Application Sector: Commercial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Single Piece Plated Steel Mounting Strap: Yes
• Wall Plate Included: No
• Number of Receptacles: 2
• Outlet Type: Straight Blade
• Standard: UL 498, WC596, FEDSPEC
• UPC Number: 785007585018
• Product Depth US: 0.78 in
• Product Height US: 2.635 in
• Product Width US: 1.322 in
• cULus ListingNumber: E140596
• cULus Listed: Yes
• Product Environmental Profile: Yes
• Amperage: 20 A
• Connection Location: Side Only
• Wire Connection Type: Screw Terminals
• Indoor/Outdoor: Indoor
• NEMA Configuration Code: 6-20R
• Number of Poles: 2 Pole
• Number of Wires: 3 Wire
• Voltage: 250.0 V
• Wire Size: 10 AWG
• Material: Nylon
• Connector Type: Plug-In
• Specification Met: NEMA
• Material Type: Nylon
• Applications: Residential/Commercial
• Capacity: Duplex
• Conductor Size: 14-10 AWG
• Grade: Commercial
• Mounting Type: Wall
• Brand: Pass & Seymour
• Sub Brand: Pass & Seymour
• 12-Digit UPC: 785007585018
• GTiN: 00785007585018
• Product UPC: 78500758501
• UNSPSC: 39121406
• Depth: 0.78 Inch
• Height: 2.635 Inch
• Width: 1.322 in
• Certifications: CULUS,FEDSPEC
• UNSPSC Code: 39120000
• Manufacturer Part Number: 5850W
• Unit of Measure: EA
