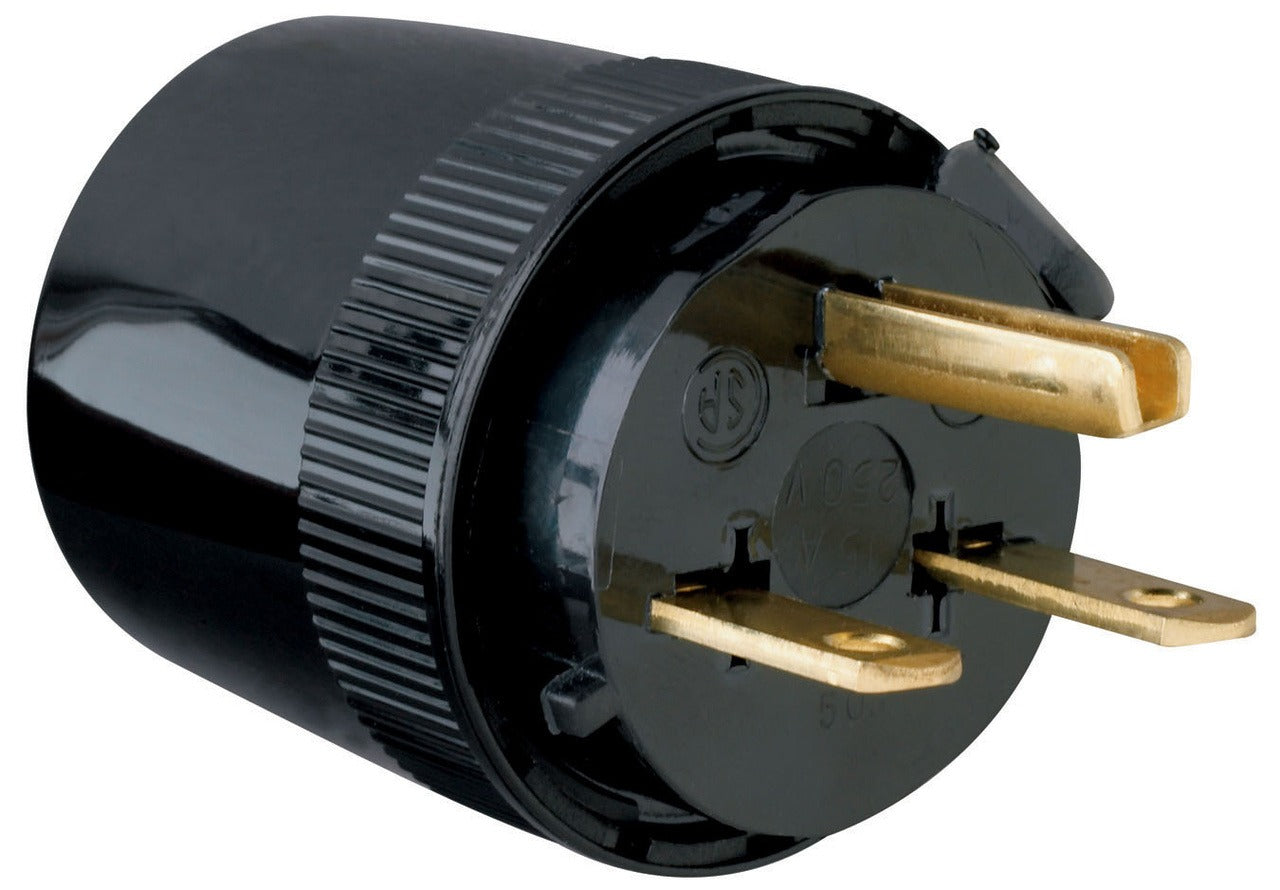

Pass & Seymour 5666-BK Medium-Duty Dead Front Plug 15A 250V (NEMA 6-15P) 5666BK

Product Description

Pass & Seymour 5666-BK is a medium-duty dead-front straight blade plug rated 15 A, 250 V for 2-pole, 3-wire grounding applications. It features all-nylon construction for impact and chemical resistance, internal finger grips for secure cord retention, and a turn-and-twist ready-to-wire body for quick assembly. The NEMA 6-15P configuration accepts cord diameters 0.230–0.655 in and conductor sizes #14–#10 AWG; cULus listed to UL 498 for indoor commercial use.

• Rated 15 A, 250 V; NEMA 6-15P, 2-pole, 3-wire grounding
• All-nylon construction with chemical resistance and internal finger grips; cord diameter 0.230–0.655 in, AWG 14–10
• Turn-and-twist ready-to-wire design for quick assembly; cULus listed to UL 498

Product Highlights

Medium-duty dead-front straight blade plug for indoor commercial and stage applications with nylon construction and ready-to-wire assembly.

Product Information

Standard Information

• Brand: PASS & SEYMOUR
• Manufacturer Part Number: 5666-BK
• Country of Origin: Mexico
