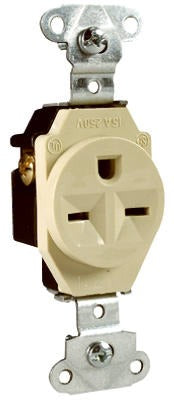

Pass Seymour 5651ICC8 Single Outlet 15A 250V Nema 6-15R

Product Description

The PASS SEYMOUR 5651ICC8 is a heavy-duty, commercial-grade single grounding outlet rated at 15 amps and 250 volts. It features a NEMA 6-15R configuration with 2-pole, 3-wire grounding, making it suited for equipment requiring a dedicated 250-volt circuit. The outlet is built with an unbreakable face and back body to prevent device breakage in demanding service environments. Superior blade retention holds plugs firmly in place, reducing nuisance disconnects. This package includes 8 outlets, sold as a window box unit. Licensed electricians and commercial electrical contractors are the primary installers for this device.

This outlet is intended for commercial and specification-grade installations where 250-volt, 15-amp grounding receptacles are required. Typical applications include industrial equipment, power tools, laboratory instruments, and other loads that operate on 250-volt circuits and require a NEMA 6-15R receptacle. The side-wire termination accepts 14 AWG through 12 AWG stranded and solid copper wire, accommodating standard branch circuit conductors used in commercial wiring projects.

Key Features

• NEMA 6-15R configuration — 2-pole, 3-wire grounding, 15A at 250V
• Superior blade retention prevents plugs from loosening or falling out
• Unbreakable face and back body construction resists damage in commercial environments
• Side-wire termination accepts 14 AWG through 12 AWG stranded and solid copper wire
• Commercial and specification grade — meets UL, CSA, and Federal Specification standards
• Sold as a package of 8 outlets in a window box

Compatibility

Designed as an OEM-style specification-grade replacement or new-installation receptacle for commercial and industrial branch circuits requiring a NEMA 6-15R grounding outlet rated at 15 amps and 250 volts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Always de-energize the circuit at the breaker panel and verify the circuit is dead with a voltage tester before beginning work. Use the side-wire terminals with properly stripped 14 AWG or 12 AWG copper conductors and ensure all connections are tight and secure. Do not use this receptacle on 120-volt circuits — the NEMA 6-15R configuration is rated exclusively for 250-volt applications.
