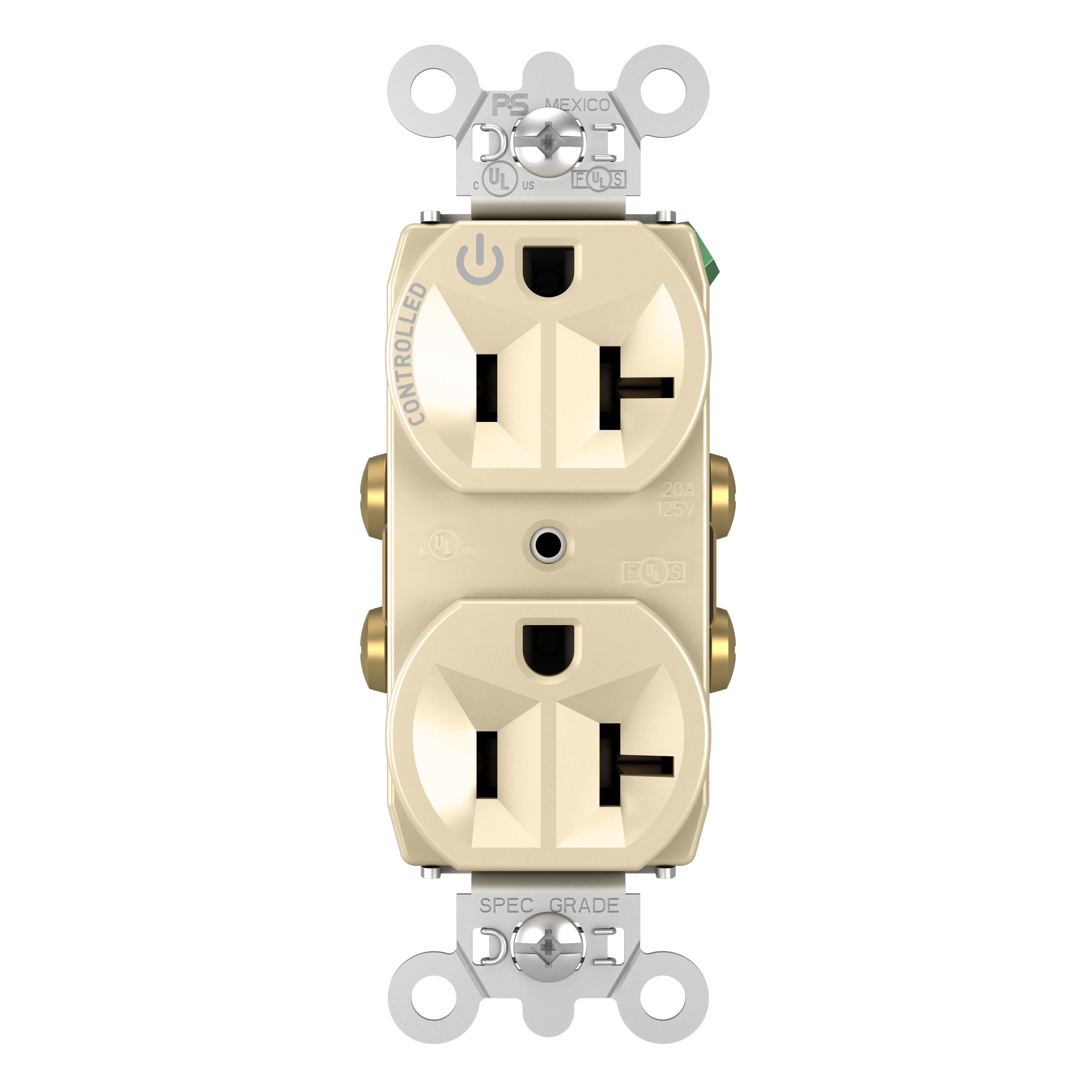

Pass & Seymour 5362CHI Decorator Duplex Half Controlled Plug Load 125 VAC

Product Description

The Pass & Seymour 5362CH-I is a decorator duplex half controlled plug load straight blade receptacle. This product features a robust design that meets code requirements and energy efficiency standards. It has a marked controlled receptacle for easy identification, made from corrosion-resistant plated steel and high-strength nylon for reliable performance.

• Designed for various plug load control solutions
• Easy installation with screw pressure plate back wiring
• NEMA approved and compliant with NEC and CA Title 24

Product Highlights

This receptacle is ideal for commercial use, supporting durability and functionality under demanding conditions.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer: Legrand

Technical Specifications

• Type: Decorator Duplex Half Controlled Plug Load
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• NEMA Rating: NEMA 5-20R
• Temperature Rating: -40 to 60 degrees C
• Material: Nylon/PVC
• Dimensions: 0.78 inches L x 1.322 inches W x 3.281 inches H
• Terminal Type: Back/Side Wire
• Grade: Commercial/Specification
