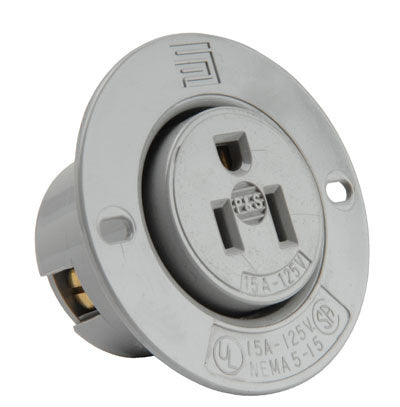

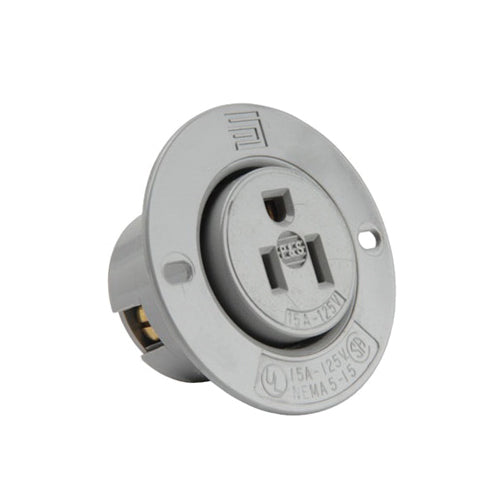

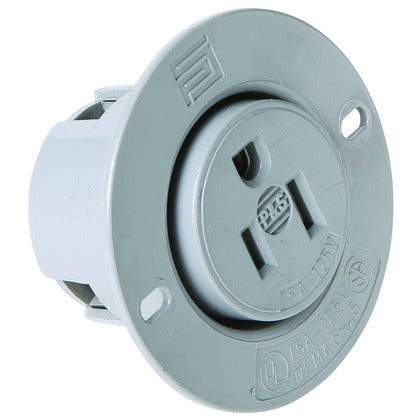

Pass & Seymour 5279-SS flanged outlet 15A 125V

Product Description

The Pass & Seymour 5279-SS is a straight blade, 2-pole, 3-wire flanged outlet. Constructed with thermoplastic for excellent impact and chemical resistance. The NEMA configuration is molded on the flange for easy field identification. Ideal for commercial applications requiring a durable and reliable power connection.

• All thermoplastic construction, provides excellent impact and chemical resistance.
• Available in Gray or Black.
• NEMA configuration molded on flange, easy field identification.

Product Highlights

Durable thermoplastic construction, easy NEMA identification, ideal for commercial use.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part Number: 5279-SS
• Country of Origin: Mexico

Technical Specifications

• Color: Gray
• Application Sector: Commercial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Standard: UL 498
• UPC Number: 785007527919
• Product Depth US: 1.374 in
• Product Width US: 2.562 in
• CSA Listed: Yes
• CSA File Number: 16063
• cUL Listed: Yes
• cUL ListingNumber: 140596
• Amperage: 15 A
• Number of Poles: Double Pole
• Number of Wires: 3
• Wire Size: 14 - 10 AWG
• Brand / Manufacturer: PASS & SEYMOUR
• Voltage: 125 VAC
• Series: 5279
• Catalog Number: 5279-SS
• Catalog / Class: Flanged Outlet
• SKU: 5279-SS
• UNSPSC Code: 39120000
• Brand: Pass & Seymour
• Contact Type: Socket
• Current Rating: 15 A
• Grade: Commercial
• Manufacturer Part Number: 5279SS
• Material: Thermoplastic
• Mounting Type: Flange Mount
• NEMA Rating: 5-15R
• NEMA Type: 5-15R
• Number of Contacts: 3
• Primary Type: Straight Blade
• Termination: screw
• Type: Flanged Outlet
• UPC Code: 785007527919
• Voltage Rating: 125 V
• Enclosure: IP20
• Amperage Rating: 15 A
• NEMA Configuration: 5-15R
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantFederal SpecificationUL 498
• UNSPSC: 39121402
• Manufacturer: Legrand
