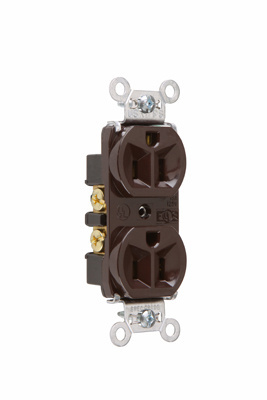

Pass & Seymour 5262 Duplex Straight Blade Receptacle 15 Amp 125 Volt

Product Description

The Pass & Seymour 5262 is a spec grade duplex receptacle designed for reliable performance at 15 amps and 125 volts. This receptacle can be wired from the back or sides, providing flexibility for installation.

• Corrosion-resistant design enhances durability.
• LED protection indicators for immediate status.
• Accepts #10 - #14 AWG conductors for versatile wiring.

Product Highlights

This receptacle is ideal for commercial applications, built with a strong nylon face and features that promote safe and effective wiring. The isolated terminal compartments prevent interference, ensuring reliable electrical contact.

Product Information

Standard Information

• Brand: Pass & Seymour
• Sub Brand: Pass & Seymour

Technical Specifications

• Amperage: 15 Amp
• Applications: Commercial Grade
• Capacity: Duplex
• Conductor Size: 14-10 AWG
• Connection Type: Back and Side Wire
• Dielectric Strength: 2000 V
• Grade: Specification
• Material: Nylon
• Mounting Type: Wall, Flush
• NEMA: 5-15R
• Number of Poles: 2 Pole
• Number of Wires: 3 Wire
• Size: 1.322 L x 0.780 W x 3.281 H In
• Temperature Rating: -40 degrees C to 60 degrees C
• Type: Hard Use
• Voltage: 125 Volt
