Pass & Seymour 5251W Receptacle Bl Str 125VAC 15A 2 3 WHT

Product Description

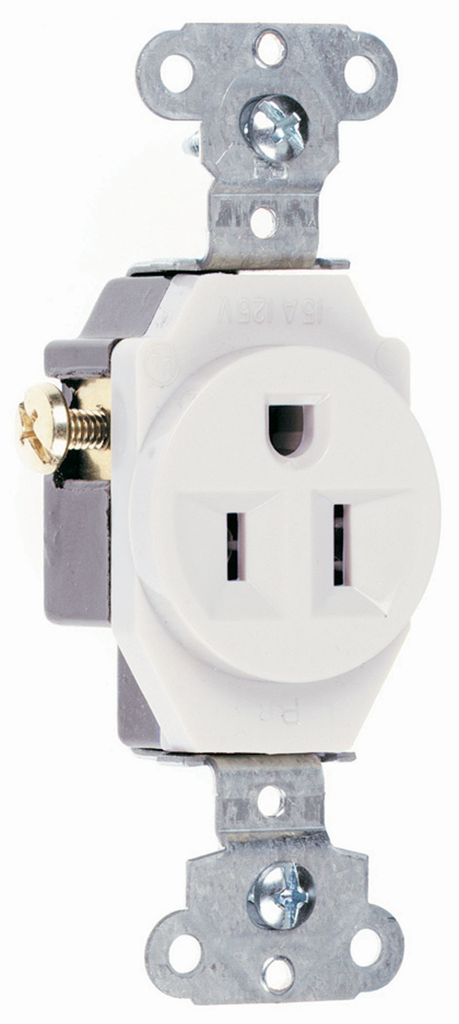

The Pass & Seymour 5251W is a straight blade receptacle with a voltage rating of one hundred twenty-five volts and an amperage rating of fifteen amps. It is designed for heavy-duty use in both residential and commercial applications. This receptacle features two poles and three wires and complies with the NEMA 5-15R rating. It is colored white and constructed with thermoplastic material to ensure durability.

• Grounding heavy-duty single receptacle
• UL 94-V2 flammability rating
• Auto-ground clip for positive grounding

Product Highlights

Ideal for a variety of electrical applications, this receptacle provides reliable performance and safety.

Product Information

Standard Information

• Manufacturer: Legrand
• Brand: Pass & Seymour

Technical Specifications

• MPN: 5251W
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: 5-15R
• Material: Thermoplastic
• Operating Temperature: -40 to 60 degrees Celsius
• Dimensions: 3.3 inches H x 1.32 inches W x 1.08 inches D
• Weight: 0.16 lb
