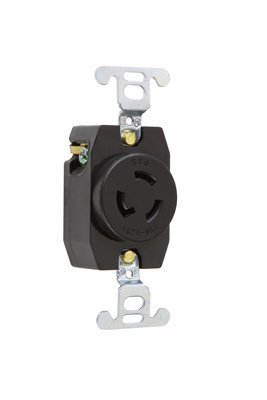

Pass & Seymour 4710 Locking Device Receptacle 15A 125V NEMA L5-15R

Product Description

The Pass & Seymour 4710 Locking Device Receptacle is designed for industrial use offering reliable performance. This receptacle is rated for 15 amps and 125 volts with a NEMA L5-15R configuration. The product features a compact design with an impact-resistant nylon face and body that are ultrasonically welded together for enhanced durability.

• Constructed from high-grade brass for excellent conductivity
• Designed for easy installation with back wire capability
• Meets UL 498 and CSA standards for safety

Product Highlights

This locking receptacle is ideal for a variety of applications in both commercial and industrial settings, ensuring safety and effectiveness in powering essential equipment.

Product Information

Standard Information

• Manufacturer: Pass & Seymour
• Type: Locking

Technical Specifications

• Voltage: 125 Volts
• Amperage: 15 Amps
• NEMA Rating: L5-15R
• Dimensions: Length 3.281 inches, Width 1.437 inches, Height 2.25 inches
• Material: Nylon
• Number of Poles: 2
• Number of Wires: 3
• Approval Ratings: UL 498, CSA
