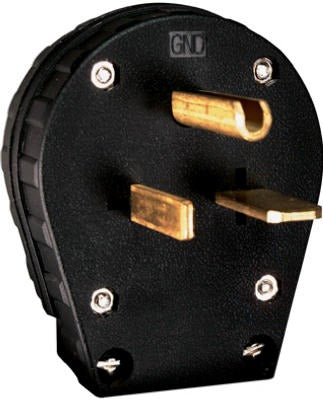

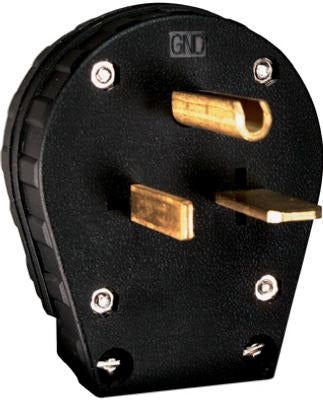

Pass Seymour 3869CC5 Hd Dual Power Plug 30/50A Nema 6-30/6-50

Product Description

The PASS SEYMOUR 3869CC5 is a heavy duty dual power angle plug rated for 250 volts with interchangeable blades that allow configuration as either a 30-amp or 50-amp plug. It features a 2-pole, 3-wire grounding design and meets NEMA 6-30 and NEMA 6-50 standards. The dead front design eliminates exposed live parts when the plug is disconnected, improving job-site safety. This plug ships in a box of 5 units and is installed by licensed electricians on commercial and industrial power circuits requiring high-amperage 250-volt connections.

The 3869CC5 is suited for heavy duty applications where a single plug must serve dual power requirements without stocking two separate parts. Typical install scenarios include portable equipment feeds, temporary power panels, and equipment hookups on job sites where both 30A and 50A circuits may be encountered. The plug is UL Listed for use with aluminum wire, making it compatible with aluminum branch-circuit conductors in addition to copper. It meets Federal Specification requirements and carries CSA certification, supporting use on both commercial and government contract work.

Key Features

• Interchangeable blades allow field configuration for either 30A or 50A service without separate parts
• Rated 250V, 2-pole, 3-wire grounding for NEMA 6-30 and NEMA 6-50 circuits
• UL Listed for use with aluminum wire, expanding conductor compatibility
• Dead front design prevents contact with live parts when unplugged
• UL Listed, CSA certified, and meets Federal Specification requirements
• Sold as a box of 5 units, reducing per-unit cost on multi-connection jobs

Compatibility

Designed as an OEM-style replacement or new-installation plug for NEMA 6-30 and NEMA 6-50 receptacle configurations on 250-volt, 2-pole, 3-wire grounding circuits.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit before wiring the plug. Confirm blade configuration for the target amperage before securing conductors, and verify that conductor gauge matches the selected 30A or 50A rating. Do not exceed the rated voltage or amperage of the plug.
