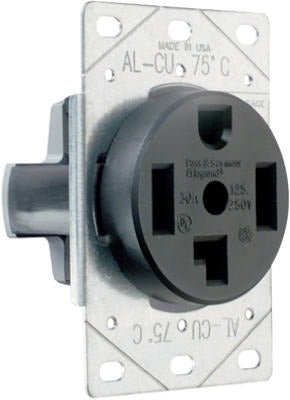

Pass Seymour 3864CC6 Nema 14-30 Dryer Outlet 30A 125/250V Black

Product Description

The PASS SEYMOUR 3864CC6 is a flush-mount dryer outlet rated for 30 amps at 125/250 volts, designed for residential and light commercial laundry circuit terminations. Built to NEMA 14-30 configuration, it provides a 3-pole, 4-wire grounding connection that meets current NEC requirements for dryer circuits. The outlet features double-wipe contacts made from a high-performance copper-based alloy, which improves contact reliability and reduces resistance over time. It is UL Listed and specifically approved for use with aluminum wiring, making it suitable for older residential panels where aluminum branch circuit conductors are present. Licensed electricians are the typical installers for this device.

This outlet is intended for flush-mount installation in a standard window box configuration. It is designed for dedicated 30-amp dryer branch circuits in residential settings and can be used in new construction or service replacement work. The NEMA 14-30 configuration is the current standard for residential electric dryer circuits, providing a separate ground conductor compared to the older 3-wire NEMA 10-30 configuration. For wall plate finishing, this outlet is designed for use with a 2-gang wall plate, specifically the S3862c. Each package contains 6 units.

Key Features

• NEMA 14-30 configuration — 3-pole, 4-wire grounding for compliant dryer circuit termination
• Rated 30 amps at 125/250 volts for dedicated dryer branch circuits
• UL Listed for use with aluminum wiring — suitable for aluminum branch circuit conductors
• Double-wipe contacts of high-performance copper-based alloy for reliable, low-resistance connection
• Flush-mount design installs in a window box with a standard 2-gang wall plate (S3862c)
• Black finish; sold in a package of 6 units

Compatibility

Designed for use with 2-gang wall plate S3862c. Installs in a window box. Suitable as an OEM-style replacement or new-installation flush-mount dryer outlet on NEMA 14-30 circuits.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit at the panel and verify absence of voltage with a meter before beginning work. The NEMA 14-30 outlet requires a dedicated 30-amp, 240-volt circuit with a separate ground conductor. Do not use this outlet as a replacement for NEMA 10-30 without first verifying that the branch circuit includes a separate equipment grounding conductor.
