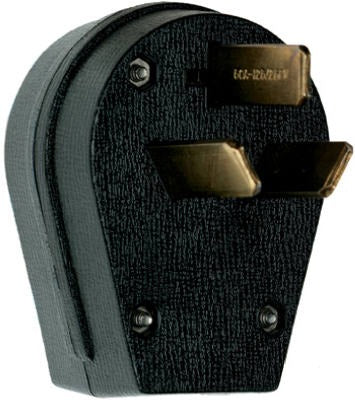

Pass Seymour 3861CC5 Range Dryer Plug 30A/50A Nema 10-30/10-50

Product Description

The PASS SEYMOUR 3861CC5 is a dual-configuration angle plug designed for heavy-duty range and dryer circuits in residential and light commercial applications. It operates at 125/250 volts and features interchangeable blades that allow the installer to configure the plug for either a 30-amp or 50-amp circuit, making it a versatile single-SKU solution for both NEMA 10-30 and NEMA 10-50 outlets. The 3-pole, 3-wire non-grounding design meets the legacy wiring configurations still common in older residential panels. UL Listed, CSA certified, and compliant with Federal Specifications, this plug is also UL Listed for use with aluminum wire, expanding its compatibility with older aluminum-wired branch circuits.

This plug is suited for connecting electric ranges and dryers to wall receptacles in residential kitchens and laundry rooms. Its dead front design eliminates exposed live parts during handling, reducing shock risk during installation. Electricians working on service upgrades, appliance replacements, or retrofit installs will find the interchangeable blade feature useful when the circuit ampacity needs to be confirmed on-site. The angle body orientation keeps the cord exit low-profile at the receptacle face. Each box contains 5 units, making it practical for electrical contractors stocking service vehicles or shop inventory.

Key Features

• Interchangeable blades allow field configuration for either 30A (NEMA 10-30) or 50A (NEMA 10-50) circuits
• Rated 125/250 volts for standard residential range and dryer branch circuits
• UL Listed for use with aluminum wire, compatible with older aluminum branch-circuit conductors
• Dead front design covers live contacts to reduce shock hazard during handling and installation
• 3-pole, 3-wire non-grounding configuration matches legacy NEMA 10-series receptacles
• UL Listed, CSA certified, and meets Federal Specifications

Compatibility

Designed for use with NEMA 10-30 and NEMA 10-50 receptacles. Suitable for electric range and dryer circuits wired to 3-wire, non-grounding configurations per legacy NEC provisions. UL Listed for use with both copper and aluminum conductors.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Shut off the branch circuit breaker and verify the circuit is de-energized before connecting or disconnecting the plug. Confirm blade configuration matches the circuit ampacity before final assembly. The non-grounding design is intended for replacement use on existing 3-wire circuits only and is not suitable for new installations requiring a grounding-type connection.
