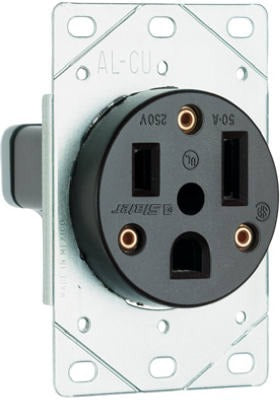

Pass Seymour 3804CC6 50A 250V Nema 6-50R Flush Outlet

Product Description

The PASS SEYMOUR 3804CC6 is a flush mount power outlet rated for 50 amps at 250 volts, configured as a NEMA 6-50R receptacle. It features a 2-pole, 3-wire grounding design and is finished in black. This outlet is UL Listed, including for use with aluminum wiring, making it suitable for installations where aluminum branch circuit conductors are present. Licensed electricians install this receptacle in commercial and residential applications requiring high-amperage 250-volt service, such as welding equipment, large compressors, and similar industrial loads. The window-box style housing supports flush mounting in standard wall assemblies.

This outlet is designed for flush mount installation in a 2-gang wall box configuration. It pairs with the S3862c 2-gang wall plate for a finished installation. Typical use cases include workshop environments, commercial service panels, and any application requiring a dedicated 50-amp, 250-volt circuit without a ground pin in the NEMA 6-series pattern. The 3-wire grounding configuration provides equipment grounding without a neutral conductor, which is standard for NEMA 6-series devices serving resistive and motor loads.

Key Features

• 50-amp, 250-volt rating suitable for high-draw equipment circuits
• NEMA 6-50R configuration: 2-pole, 3-wire grounding, no neutral
• UL Listed for use with aluminum wire, expanding installation compatibility
• Flush mount design integrates cleanly with standard wall assemblies
• Black finish for consistent appearance in commercial or industrial settings
• Compatible with S3862c 2-gang wall plate for a complete finished installation

Compatibility

Designed for use with the PASS SEYMOUR S3862c 2-gang wall plate. Fits standard window-box and 2-gang wall box installations requiring a NEMA 6-50R flush mount receptacle.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Disconnect and lock out the branch circuit at the panel before beginning any wiring work. This receptacle is rated for aluminum wire; use antioxidant compound and proper aluminum-rated terminals per NEC requirements when terminating aluminum conductors. Do not substitute a NEMA 6-50R receptacle where a NEMA 14-50R or other configuration is required by the connected equipment.
