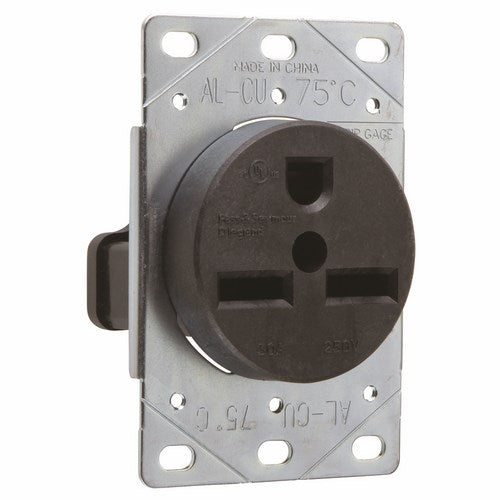

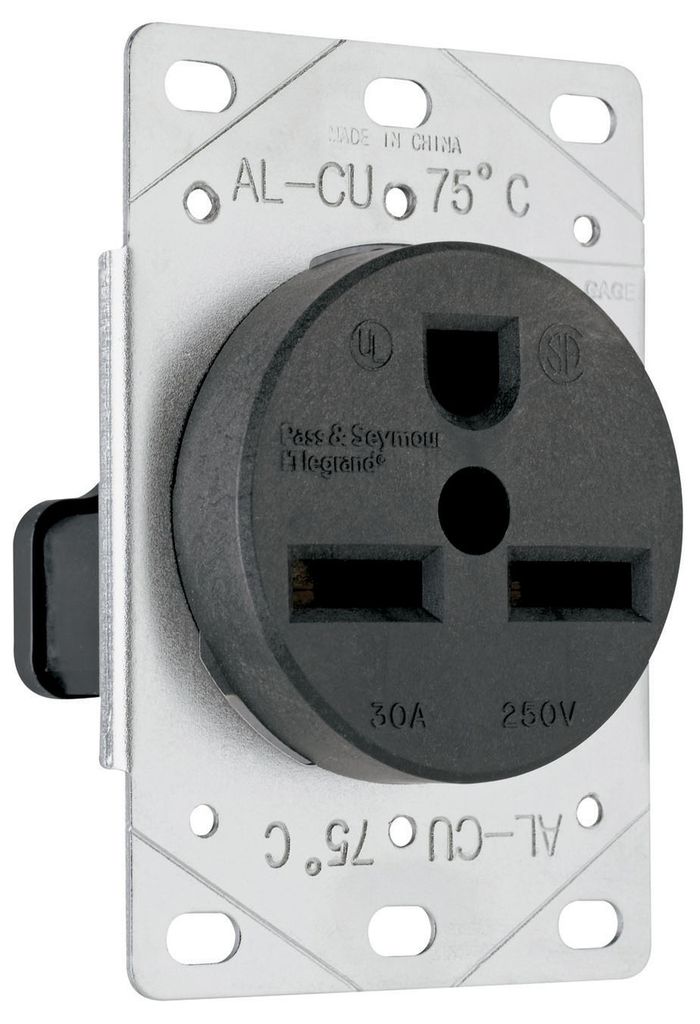

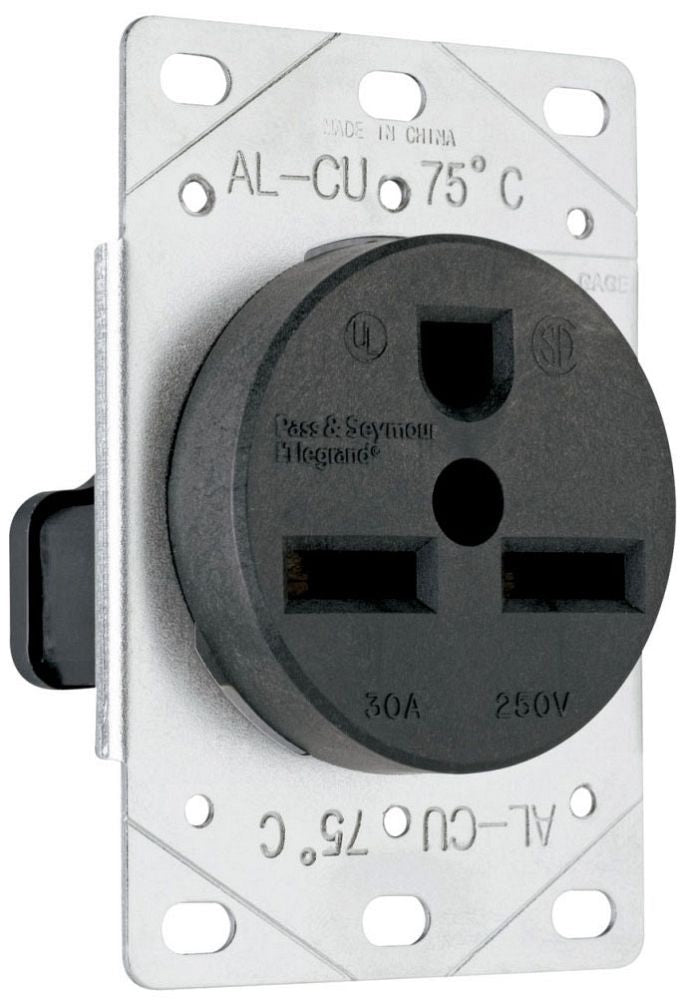

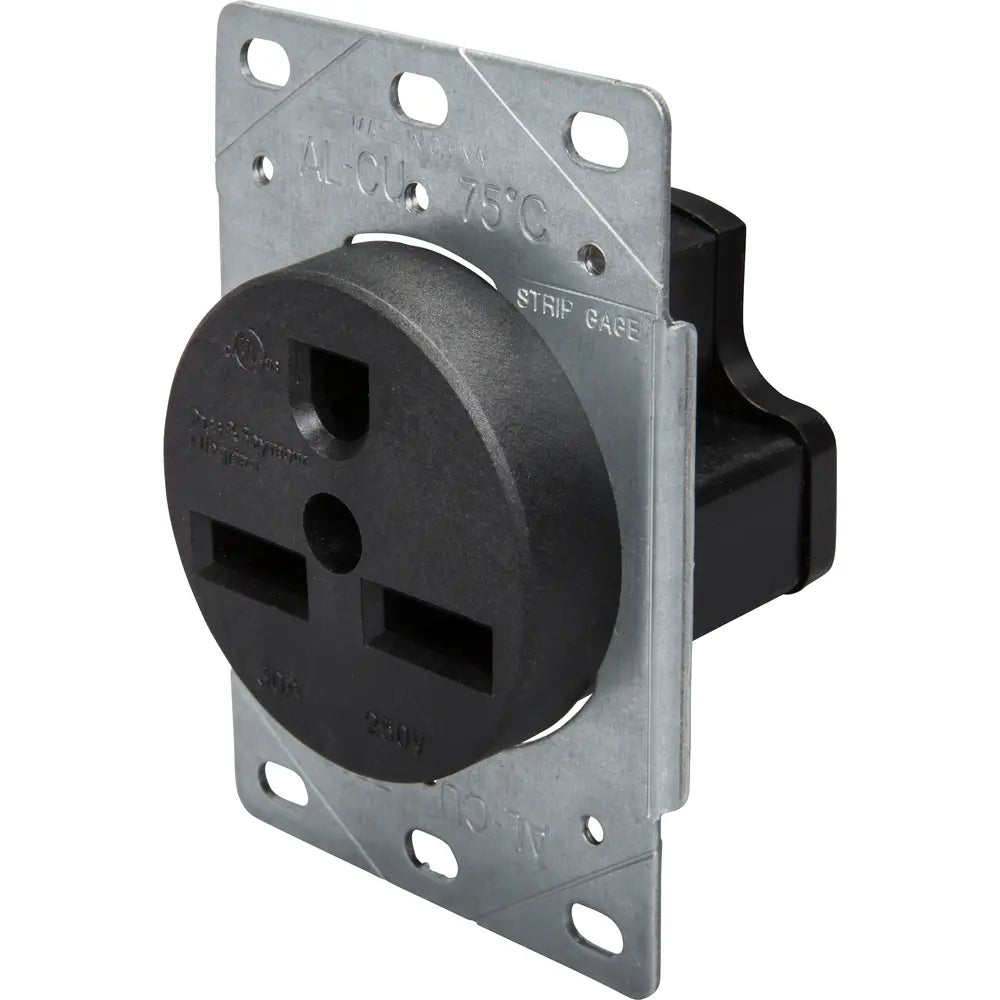

Pass & Seymour 3801 Straight Blade Receptacle 30A 250VAC 2-Pole 3-Wire

Product Description

The Pass & Seymour 3801 is a straight blade receptacle designed for high amperage applications. It operates at two hundred fifty volts and thirty amps. This receptacle features two poles and three wires for optimal power distribution. It uses thermoplastic materials for durability.

• Rated for two hundred fifty volts and thirty amps
• Constructed with thermoplastic for durability
• Designed for industrial and commercial applications

Product Highlights

This receptacle is commonly used in industrial and commercial settings. It is suitable for air conditioners, dryers, and other high-amperage devices.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part No: 3801

Technical Specifications

• Voltage Rating: 250 VAC
• Amperage Rating: 30 A
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: 6-30R
• Material: Thermoplastic
• Dimensions: 3.75 inches H x 2.5 inches W x 2.2 inches D
• Mounting: Flush
