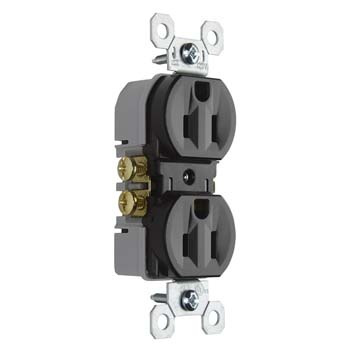

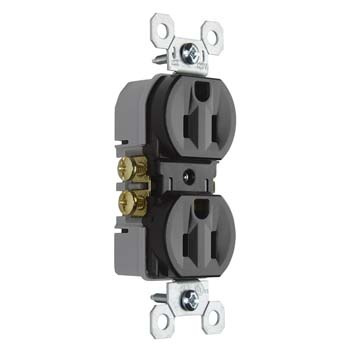

Pass & Seymour 3232 Straight Blade Receptacle, 125 VAC, 15 Amp, Duplex Grounding

Product Description

The Pass & Seymour 3232 Straight Blade Receptacle is designed for reliable power access in both commercial and residential settings. This duplex receptacle operates at 125 VAC and supports an amperage rating of 15 A. It features two poles and three wires for robust connectivity. The product is constructed with thermoplastic material in brown, making it suitable for various applications.

• Duplex grounding for enhanced safety
• Compatible with 14 to 12 AWG solid wire
• Side wire terminal for easy installation

Product Highlights

This receptacle is ideal for both new constructions and renovations. It includes a traditional design with a low profile face and long-term blade retention for improved performance.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer: Legrand

Technical Specifications

• MPN: 3232
• Type: Duplex Grounding
• NEMA Rating: 5-15R
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Material: Thermoplastic
• Dimensions: 4.2 in H x 1.32 in W x 0.96 in D
