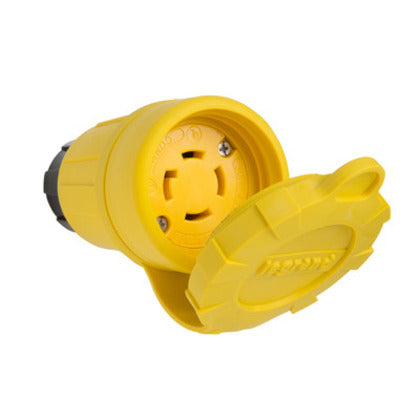

Pass & Seymour 29W75 Turnlok® Watertight NEMA 4X/6P Locking Connector 30A

Product Description

The Pass & Seymour 29W75 is a Turnlok® watertight locking connector with a multipoint sealing system that provides environmental protection of NEMA 4, 4X, 6, 6P, and IP67 rated. It is suitable for industrial applications. It stands up to impacts, oils, chemicals, heat, and weather.

• Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat , and weather.
• Nickel-Plated blades and contacts for long lasting, superior corrosion resistance.
• Multipoint sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated.

Product Highlights

This Pass & Seymour Turnlok connector is NEMA 4, 4X, 6, 6P, and IP67 rated. It features a thermoplastic elastomer construction and nickel-plated blades and contacts.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part Number: 29W75
• Country of Origin: United States

Technical Specifications

• Color: Yellow
• Type: Connector
• Application Sector: Industrial
• Product Line: Pass & Seymour
• Country Of Origin: United States
• Watertight: Watertight
• Standard: UL Listed, CSA Listed
• UPC Number: 785007033496
• Product Length US: 4.75 in
• Product Width US: 2.35 in
• Amperage: 30 A
• Flanged: No
• Number of Phases: 3
• Connector Style: Locking
• Moisture Resistance: NEMA 4, 4X, 12, 6, 6P/IP65, 66, 67 (Plug & Connector only)
• Flammability: UL94V0 (boxes & wiring device interiors)
• Operating Temperature: -40 C (without impact) to +60 C continuous
• UV resistance: All exposed material s are UV stabilized
• IP Rating: IP67
• Indoor/Outdoor: Both
• NEMA Configuration Code: L15-30R
• Number of Poles: 3-Way
• Number of Wires: 4
• Operating Temperature Max: 60 C
• Operating Temperature Min: -40 C
• Terminal Accommodation: #12 AWG - #6 AWG
• Voltage: 250V
• Wire Size: 12 AWG to 6 AWG
• Phase: 3
• Item: Watertight Locking Connector
