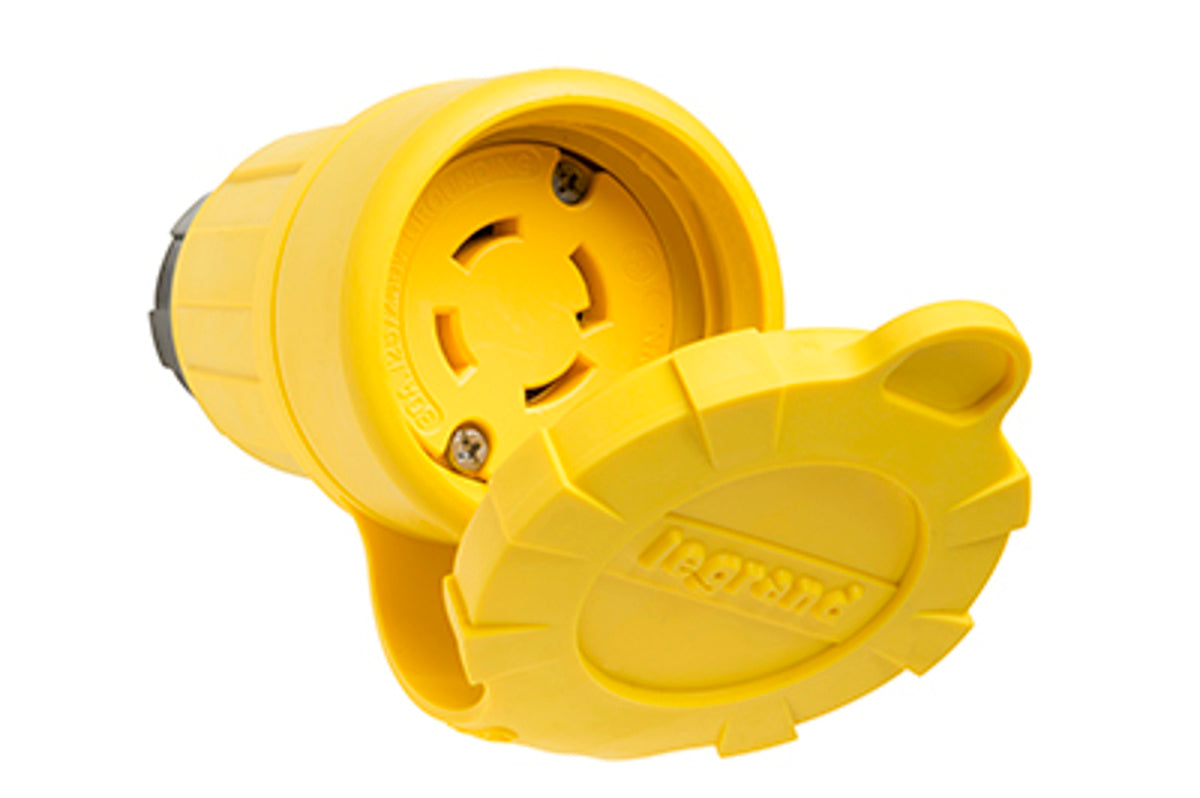

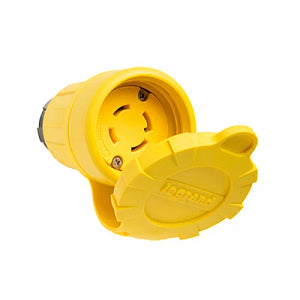

Pass & Seymour 29W74 Turnlok Watertight NEMA 4X/6P Locking Connector

Product Description

The Pass & Seymour 29W74 Turnlok watertight locking connector features a multipoint sealing system that provides environmental protection of NEMA 4, 4X, 6, 6P, and IP67 rated. Constructed with thermoplastic elastomer (TPV), it stands up to impacts, oils, chemicals, heat, and weather. Ideal for industrial applications.

• Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat , and weather.
• Nickel-Plated blades and contacts for long lasting, superior corrosion resistance.
• Multipoint sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated.

Product Highlights

The Turnlok connector offers robust construction and multiple seals, ensuring protection against harsh environments and ease of installation.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part Number: 29W74
• Country of Origin: United States

Technical Specifications

• Color: Yellow
• Type: Connector
• Application Sector: Industrial
• Product Line: Pass & Seymour
• Country Of Origin: United States
• Watertight: Watertight
• Standard: UL Listed, CSA Listed
• Product Length US: 4.75 in
• Product Width US: 2.35 in
• Amperage: 30 A
• Flanged: No
• Number of Phases: 1 Phase
• Connector Style: Locking
• Moisture Resistance: NEMA 4, 4X, 12, 6, 6P/IP65, 66, 67 (Plug & Connector only)
• Flammability: UL94V0 (boxes & wiring device interiors)
• Operating Temperature: -40 C (without impact) to +60 C continuous
• UV resistance: All exposed material s are UV stabilized
• IP Rating: IP67
• Indoor/Outdoor: Both
• NEMA Configuration Code: L14-30R
• Number of Poles: 3-Way
• Number of Wires: 4
• Operating Temperature Max: 60 C
• Operating Temperature Min: -40 C
• Terminal Accommodation: #12 AWG - #6 AWG
• Voltage: 277/480 VAC
• Length: 4-7/8 in
• Special Features: Rated watertight for 1 500 psi high-pressure hosedown P&S Turnlok watertight plugs & connectors feature rugged construction multiple seals to ensure protection against the environment and ease of installation.
• Features: Watertight
• Environmental Conditions: Moisture Resistance NEMA 4 4X 12 6 6P/IP65 66 67 (Plug & Connector only) Flammability UL94V0 (boxes & wiring device interiors) Operating Temperature -40 C (without impact) to +60 C continuous UV resistance All exposed material s are UV stabilized
• Amperage Rating: 30 A
• Cord Diameter: 0.56 to 0.775 in
• Enclosure: NEMA 4/4X/12/6/6P/IP67
• Material: Rubber
• NEMA Rating: NEMA L14-30R
• Series: Turnlok
• Temperature Rating: -40 to 60 deg C
• Terminal Type: Screw
• Voltage Rating: 125/250 V
• Ground Type: Grounding
• Pole/Wire: 3P4W
• Design: Lockable
• Insulation: Uninsulated
• Device Configuration: Female
• Wiring Method: Screw
• Environmental Condition: Watertight
• Wire Size: 12 - 6 AWG
• Grade: Industrial
• Enclosure Type: NEMA L14-30R, Watertight
• Grounding Style: Grounding
• Contact Material: Electroless Nickel Coated Brass
• Body Material: EPTR Rubber
