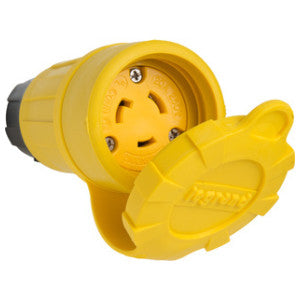

Pass & Seymour 27W48 Turnlok® Watertight NEMA 4X/6P Locking Connector

Product Description

The Pass & Seymour 27W48 is a locking watertight connector with a NEMA configuration of L6-20. Its multipoint sealing system provides environmental protection, rated NEMA 4, 4X, 6, 6P, and IP67. Constructed from thermoplastic elastomer (TPV), it withstands impacts, oils, chemicals, heat, and weather.

• Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat , and weather
• Nickel-Plated blades and contacts for long lasting, superior corrosion resistance
• Multi-point sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated

Product Highlights

This Pass & Seymour locking watertight connector is ideal for industrial applications requiring robust environmental protection.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part Number: 27W48
• Country of Origin: United States

Technical Specifications

• Color: Yellow
• Type: Connector
• Application Sector: Industrial
• Product Line: Pass & Seymour
• Country Of Origin: United States
• Watertight: Watertight
• Standard: UL Listed, CSA Listed
• UPC Number: 785007033779
• Product Length US: 4.03 in
• Product Width US: 1.85 in
• Amperage: 20 A
• Flanged: No
• Number of Phases: 1
• Connector Style: Locking
• Moisture Resistance: NEMA 4, 4X, 12, 6, 6P/IP65, 66, 67 (Plug & Connector only)
• Flammability: UL94V0 (boxes & wiring device interiors)
• Operating Temperature: -40 C (without impact) to +60 C continuous
• UV resistance: All exposed material s are UV stabilized
• IP Rating: IP67
• Indoor/Outdoor: Both
• NEMA Configuration Code: L6-20R
• Number of Poles: Double Pole
• Number of Wires: 3
• Operating Temperature Max: 60 C
• Operating Temperature Min: -40 C
• Terminal Accommodation: #14 AWG - #10 AWG
• Voltage: 250.0 V
• Frequency Rating: 50 Hz
• Connection Type: Female Locking Blade
• Enclosure Type: NEMA L6-20
• Terminal Type: Screw
• Mounting Type: Free Hanging
• Grounding Style: Grounding
• Material: Rubber
• Applications: Industrial
• Conductor Size: 14-10 AWG
• Cord Type: 12/3 SJ, 14/3 S to 10/3 S, .475" min to .720" max
• Wire Size: 10 AWG
• Brand: Legrand
• Sub Brand: Pass & Seymour
• GTiN: 00785007033779
• Product UPC: 78500703377
• UNSPSC: 39121403
• Diameter: 2.53 Inch
• Length: 4.03 Inch
• Width: 1.85 in
• Buy American Compliant: Y
• ECCN: EAR99
• AWG Range: 14 - 10 AWG
• Rated Voltage: 250V
• Color Family: Yellow
