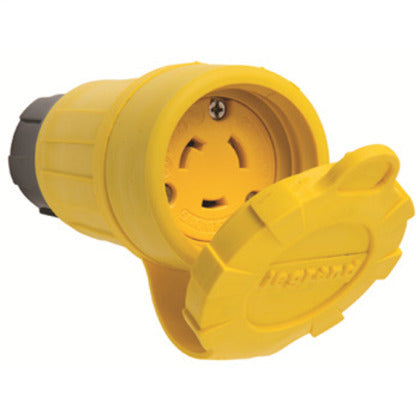

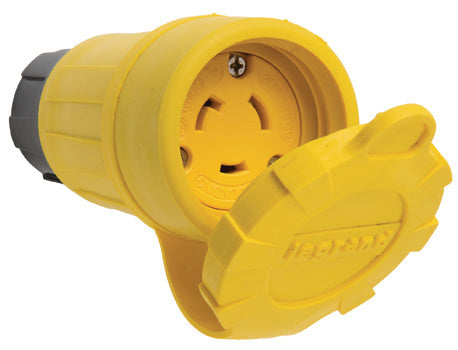

Pass & Seymour 27W47 Turnlok Watertight Connector 20A 125V L5-20R

Product Description

The Pass & Seymour 27W47 Turnlok watertight connector is rated for 1,500 psi high-pressure hosedown. It features rugged construction and multiple seals to ensure environmental protection and ease of installation. This connector is ideal for industrial applications.

• Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat and weather.
• Nickel-plated blades and contacts for long-lasting, superior corrosion resistance.
• Multi-point sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated.

Product Highlights

Watertight connector with robust construction, ideal for industrial use.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part Number: 27W47
• Country of Origin: USA

Technical Specifications

• Color: Yellow
• Type: Connector
• Application Sector: Industrial
• Product Line: Pass & Seymour
• Country Of Origin: United States
• Features: Watertight
• Standard: UL Listed, CSA Listed
• UPC Number: 785007032598
• Product Depth US: 4.03 in
• Product Height US: 1.85 in
• Product Width US: 1.85 in
• Amperage: 20 A
• Flanged: No
• Number of Phases: 1
• Connector Style: Locking
• Environmental Conditions: Moisture Resistance NEMA 4, 4X, 12, 6, 6P/IP65, 66, 67 (Plug & Connector only) Flammability UL94V0 (boxes & wiring device interiors) Operating Temperature -40 00b0C (without impact) to +60 00b0C continuous UV resistance All exposed material s are UV stabilized
• IP Rating: IP67
• Indoor/Outdoor: Both
• NEMA Configuration Code: L5-20R
• Number of Poles: Double Pole
• Number of Wires: 3
• Operating Temperature: -40 00b0-60 00b0C
• Operating Temperature Max: 60 00b0C
• Operating Temperature Min: -40 00b0C
• Terminal Accommodation: #14 AWG - #10 AWG
• Voltage: 125.0 V
• Frequency Rating: 50 Hz
• Connection Type: Female Locking Blade
• Enclosure Type: NEMA L5-20
• Terminal Type: Screw
• Mounting Type: Free Hanging
• Grounding Style: Grounding
• Material: Rubber
• Amperage Rating: 20 A
• Voltage Rating: 125 V
• Applications: Industrial
• Conductor Size: 14-10 AWG
• Cord Type: 12/3 SJ, 14/3 S to 10/3 S, .475" min to .720" max
• Wire Size: 10 AWG
• Brand: Legrand
• Sub Brand: Pass & Seymour
• 12-Digit UPC: 785007032598
• GTiN: 00785007032598
• Product UPC: 78500703259
• UNSPSC: 39121403
• Depth: 4.03 Inch
• Diameter: 2.53 Inch
• Height: 1.85 Inch
• Length: 4.88 Inch
• Width: 1.85 in
• Buy American Compliant: Y
