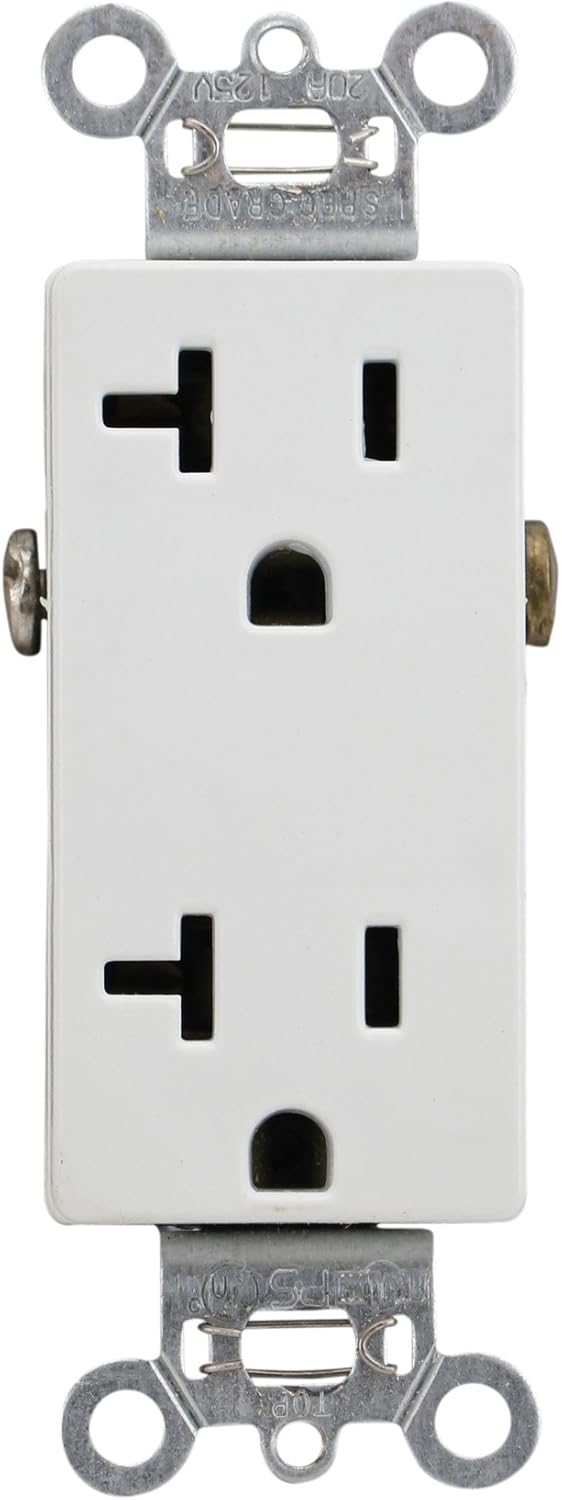

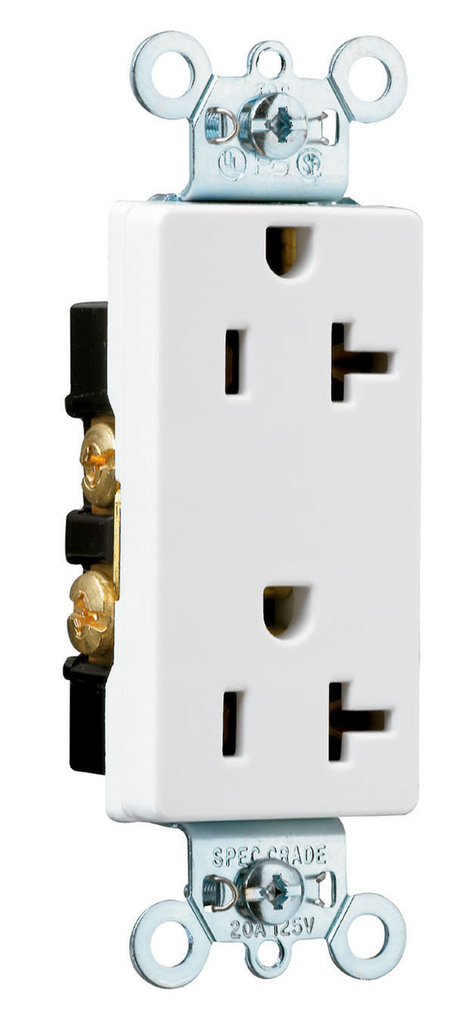

Pass & Seymour 26342W 20-Amp Decorator Duplex Receptacle, White

Product Description

The Pass & Seymour 26342W is a 20-amp decorator duplex receptacle designed for both residential and commercial use. This receptacle supports a voltage rating of 125 volts and allows for a maximum amperage of 20 amps. It features a compact and heavy-duty design suitable for various applications.

• Corrosion-resistant, plated steel strap ensures durable assembly.
• Impact-resistant nylon face enhances the longevity of the product.
• Compatible with standard wall plates and supports easy installation.

Product Highlights

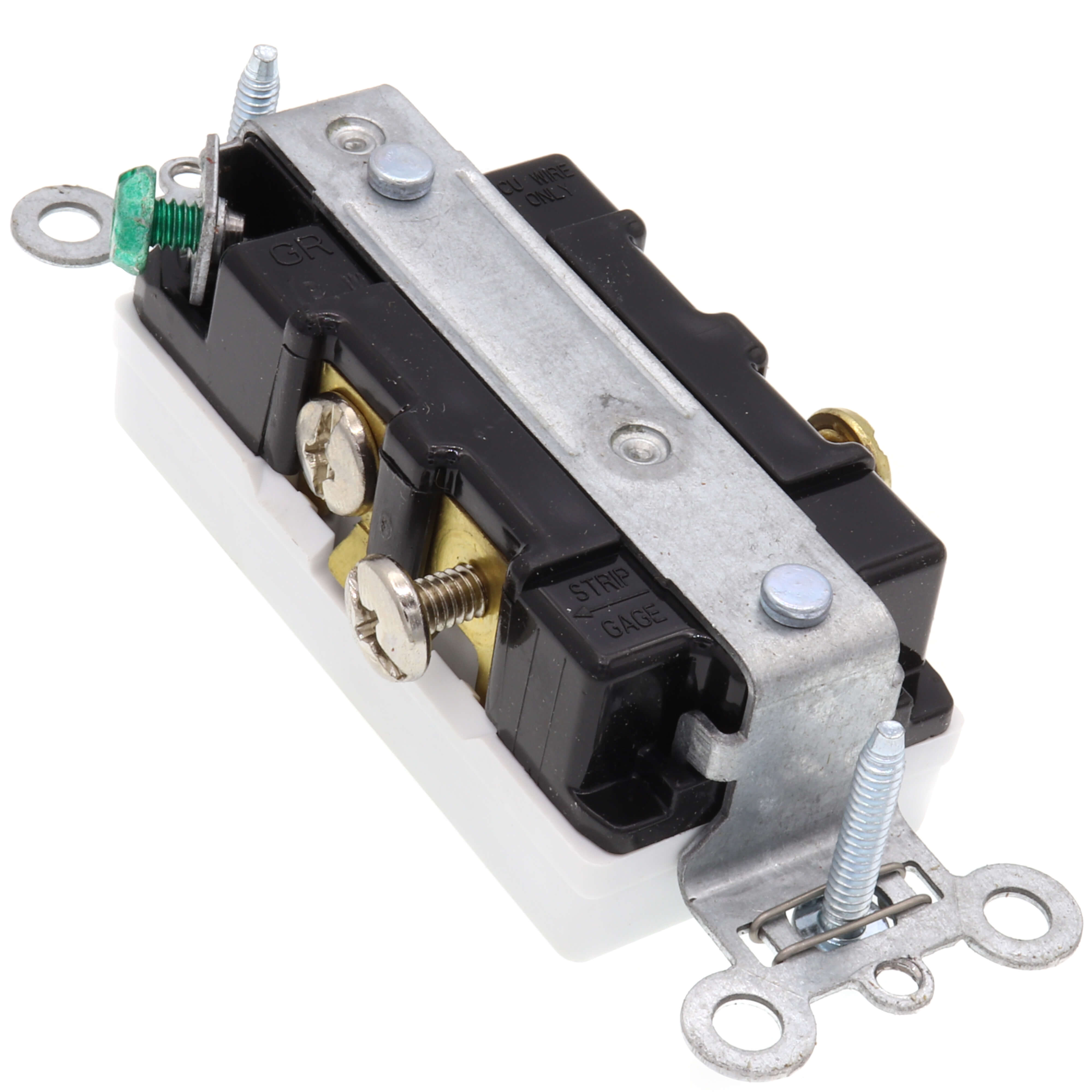

This receptacle includes a one-piece, brass, triple-wipe power contact for lasting retention and a side wire terminal for easy wiring. It is important to note that this model is not tamper resistant, so verify compliance with local electrical codes.

Product Information

Standard Information

• Manufacturer: Pass & Seymour
• Model Number: 26342W

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Poles: 2
• Wires: 3
• Material: Nylon
• Dimensions: 3.8 in H x 1.322 in W x 0.833 in D
• Wire Size: 4 AWG
• Country of Origin: Mexico
