Product Description

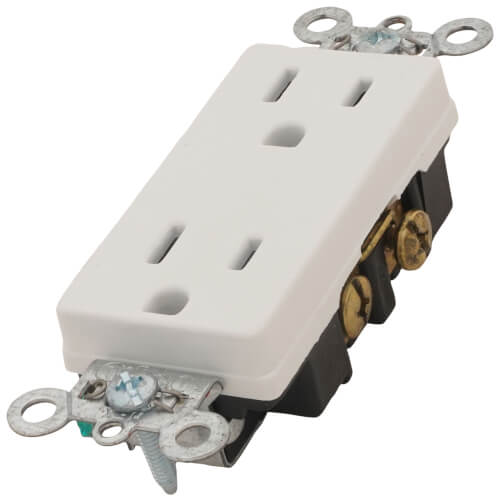

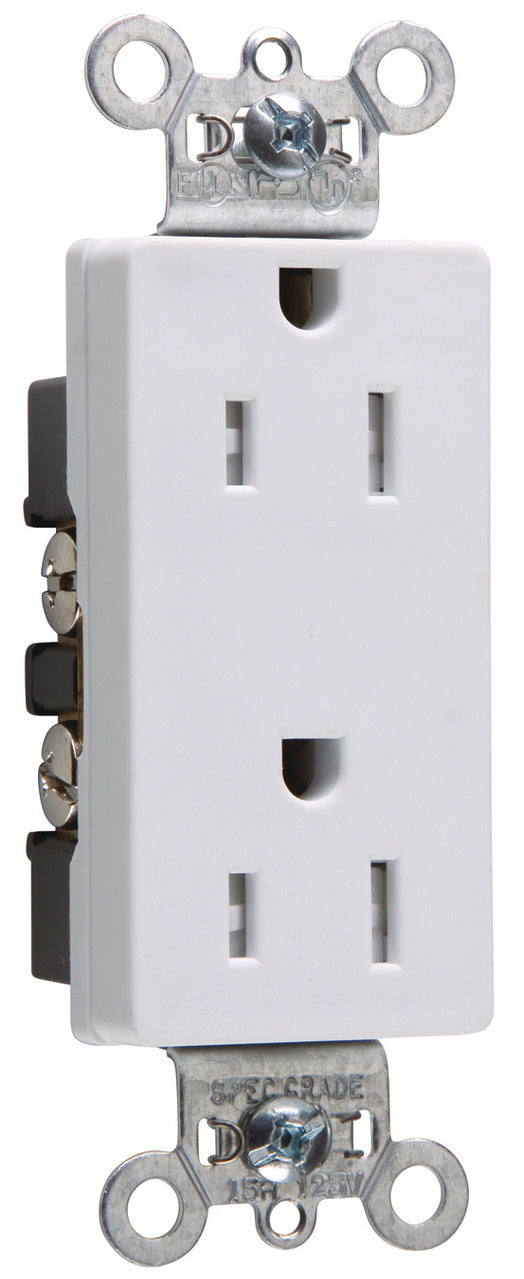

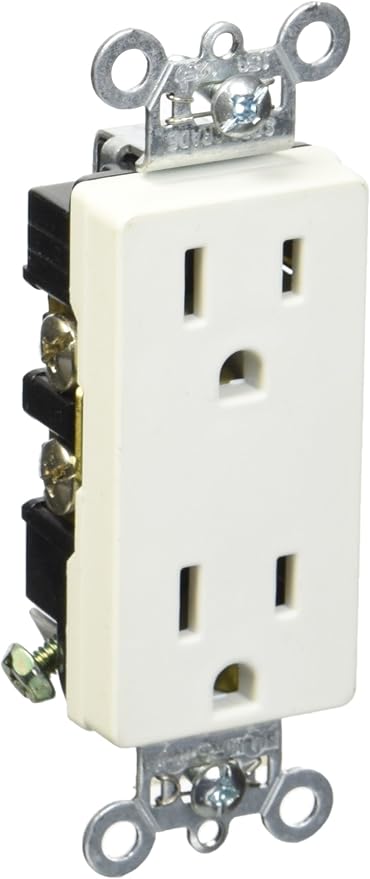

The Pass & Seymour 26252-W is a heavy-duty decorator specification grade receptacle. This duplex receptacle has a voltage rating of 125V and a current rating of 15A. Features include a corrosion-resistant, plated steel strap and a one-piece, brass, triple-wipe power contacts for lasting retention. The impact-resistant nylon face offers enhanced durability.

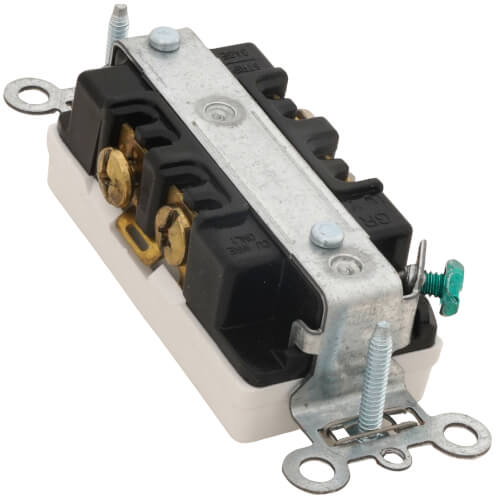

- Corrosion-resistant, plated steel strap locked into assembly.
- One-piece, brass, triple-wipe power contacts for lasting retention.
- Heavy-duty compact design for easier installation and long lasting performance.
Product Highlights
This heavy-duty receptacle is ideal for commercial and residential applications. It features a durable nylon face and back and side wire capability.
Product Information
Standard Information
-
Brand: Pass & Seymour
-
Manufacturer Part Number: 26252-W
-
Country of Origin: Mexico
Technical Specifications
-
Color: White
-
Country Of Origin: Mexico
-
Product Line: Pass & Seymour
-
Application Sector: Residential/Commercial
-
Standard: UL 498
-
Number of Poles: 2
-
Voltage: 125 V
-
Connection: Wire Ground
-
Number of Wires: 3
-
Application: Commercial
-
Amperage: 15 A
-
Wiring: 3 Wire
-
Total Power Outlets: 2
-
Material Type: Copper
-
Grade: Commercial/Residential/Specification
-
NEMA Rating: NEMA 5-15R
-
Temperature Rating: -40 to 60 deg C
-
Terminal Type: Back/Side Wired
-
Type: Decorator Duplex Grounding Heavy Duty
-
Voltage Rating: 125 VAC
-
Finish: Gloss
-
Capacity: Duplex
-
Conductor Size: 4 AWG
-
Connection Type: Wire Ground, Back and Side Wire
-
Duty Rating: Heavy Duty
-
Material: Nylon
-
Mounting Type: Wall
-
NEMA: 5-15R
-
Style: Decorator
-
TC Connection: Wire Ground
-
Depth: 0.78 Inch
-
Height: 2.635 Inch
-
Width: 1.322 in
-
Certifications: CULUS,FEDSPEC
-
cULus ListingNumber: E140596
-
cULus Listed: Yes
-
Connection Location: Back and Side
-
Wire Connection Type: Screw Terminals
-
Indoor/Outdoor: Indoor
-
Is Tamper-Resistant: Yes
-
NEMA Configuration Code: 5-15R
