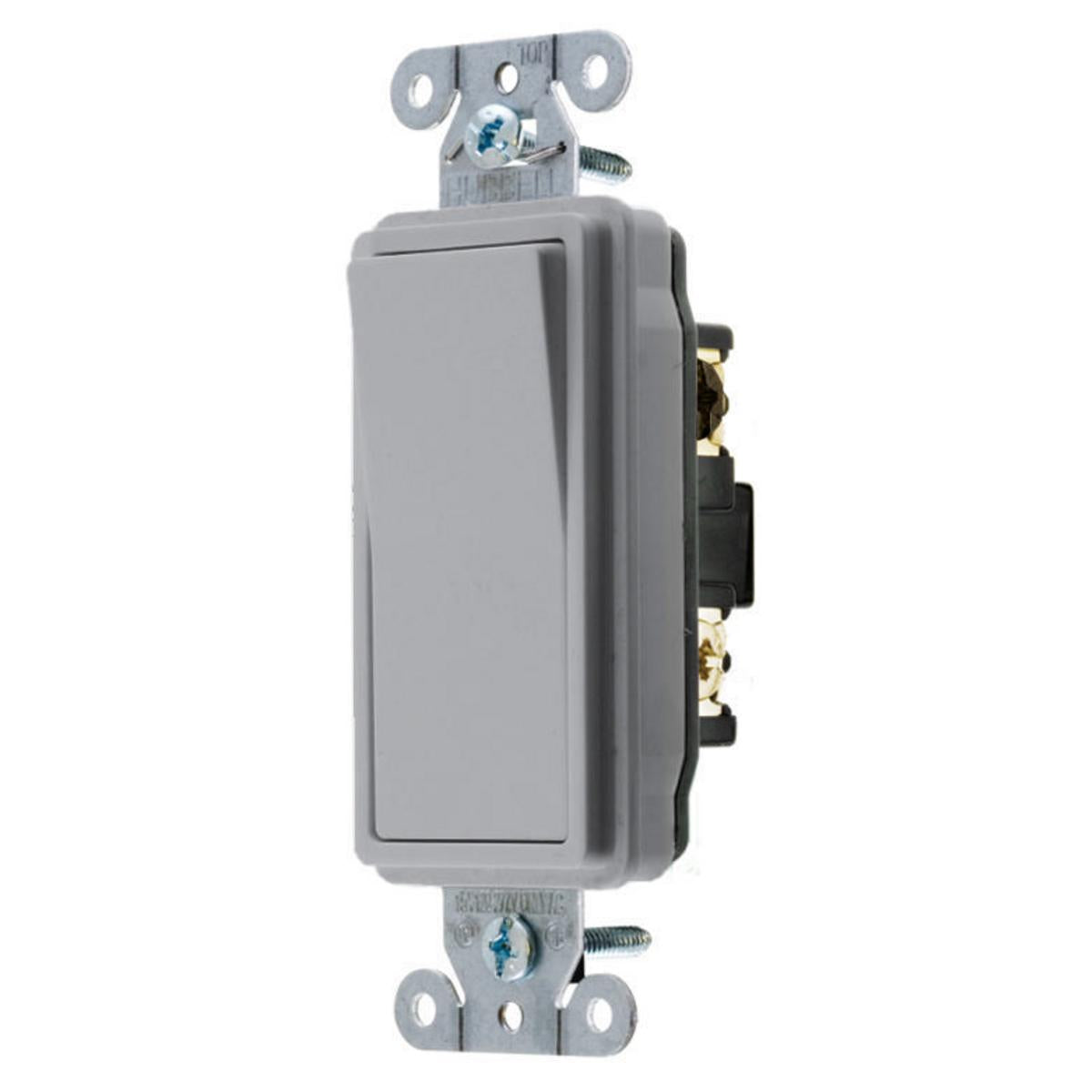

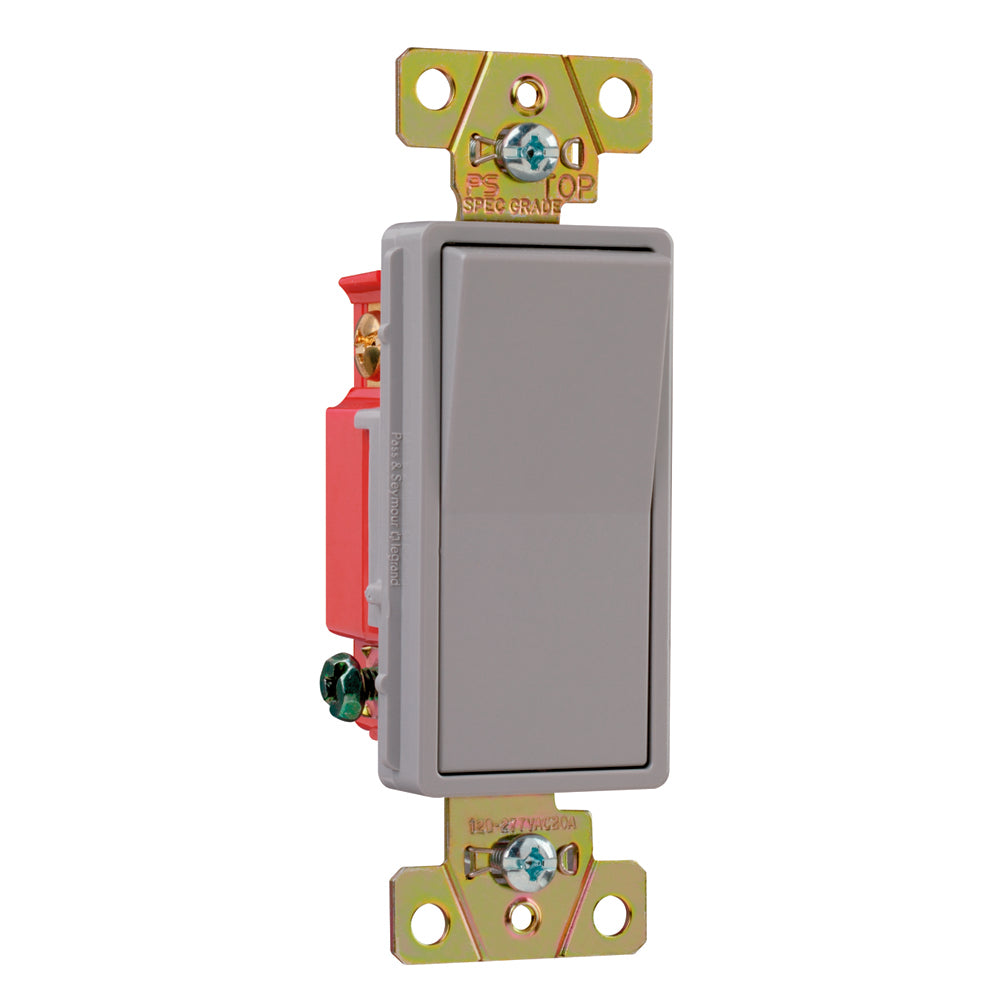

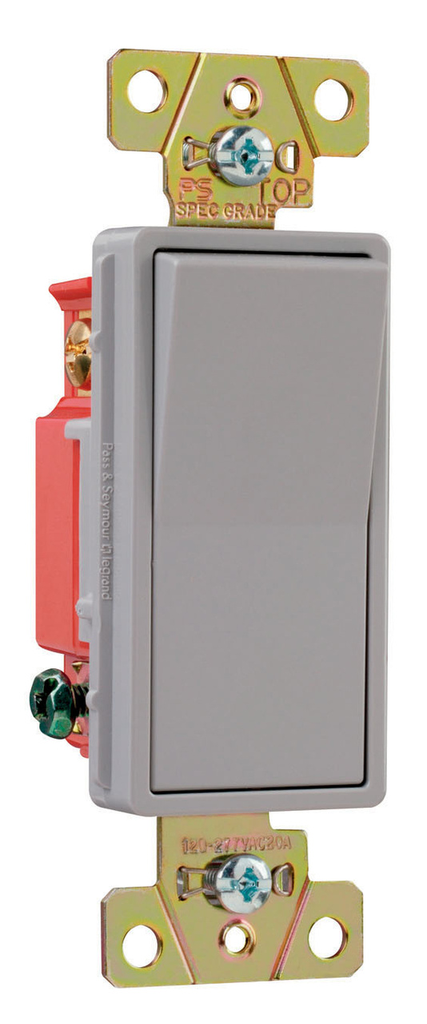

Pass & Seymour 2623-GRY Decorator 3way Switch 20A 120/277V

Product Description

The Pass & Seymour 2623-GRY is a three-way decorator switch designed for back and side wiring. It has a contact rating of twenty amps at one hundred twenty to two hundred seventy-seven volts. This switch is ideal for various residential and commercial applications.

• Supports back and side wiring for installation flexibility.
• Impact-resistant design ensures durability and longevity.
• Compatible with #14 to #10 AWG stranded or solid copper wire.

Product Highlights

This switch features a cushioned thermoplastic paddle for smooth and quiet operation. The unique butterfly contact design reduces the number of moving parts, enhancing reliability.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer: Legrand

Technical Specifications

• Voltage Rating: 120/277 VAC
• Current Rating: 20 A
• Number of Poles: 3
• Dimensions: 4.2 in H x 1.3 in W x 1.06 in D
• Material: Polycarbonate
• Mounting Type: Wall
• Operating Cycles: 10000
• Insulation Type: Bare
• Certifications: UL, CSA
