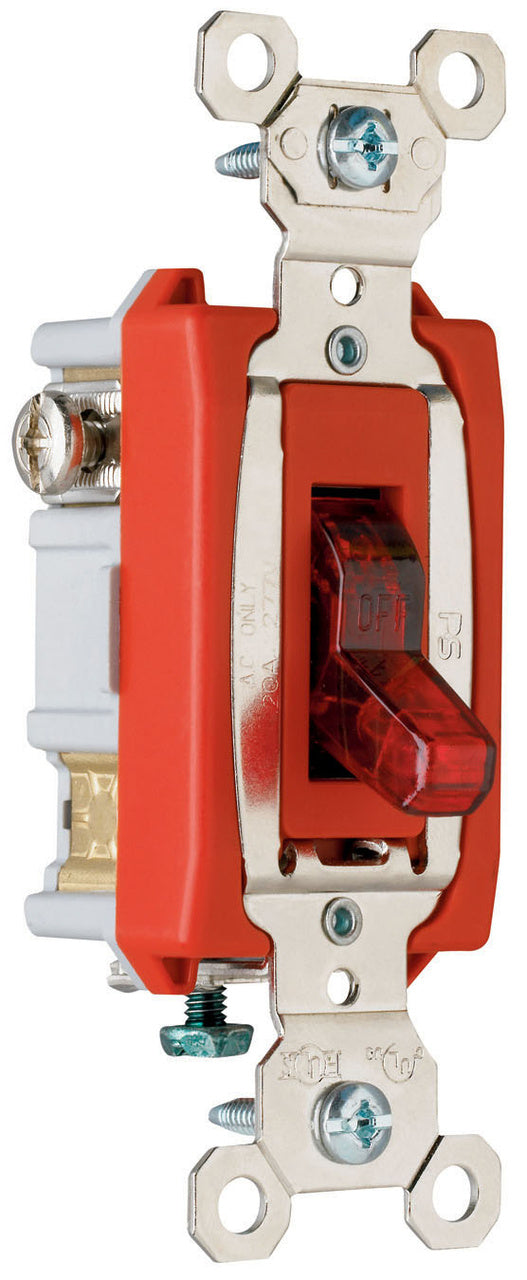

Pass & Seymour 20AC1-RPL Industrial Extra Heavy Duty Specification Grade Switch 20A

Product Description

The Pass & Seymour 20AC1-RPL is an industrial extra heavy-duty specification grade single pole switch. This switch features back and side wiring and is rated for 20A 277V. It is constructed with a high-strength thermoplastic polycarbonate toggle and a back body made of glass-reinforced nylon.

• Accepts #14 - #10 AWG copper or copper-clad conductors.
• Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
• Cam controls fast ''make'' and positive ''break'' to minimize arcing.

Product Highlights

This heavy-duty switch is suitable for commercial and industrial applications. It features oversized silver alloy contacts for long life and better heat dissipation.

Product Information

Standard Information

• Brand: PASS & SEYMOUR
• Manufacturer Part Number: 20AC1-RPL
• Country of Origin: Mexico

Technical Specifications

• Color: Red
• Type: Switch
• Material: Thermoplastic
• Finish: Matte
• Application Sector: Commercial, Industrial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Chemical Resistant: Yes
• Wall Plate Included: No
• Number of Switches: 1
• Switch Type: Toggle
• Warranty Type: 1-Year Limited Warranty
• Standard: UL 498/20, FEDSPEC
• UPC Number: 785007195842
• Product Depth US: 1.073 in
• Product Height US: 3.281 in
• Product Width US: 1.32 in
• cULus ListingNumber: 140597
• cULus Listed: Yes
• Amperage: 20 A
• Connection Location: Back and Side
• Requires Neutral Wire: No
• Wire Connection Type: Screw Terminals
• Indoor/Outdoor: Indoor
• Load Rating: 20 A @ 120/277 VAC
• Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
• Mounting Type: Wall Box
• Number of Gangs: 1
• Number of Poles: Single Pole
• Horsepower Rating: 1 HP @ 120 VAC, 2 HP @ 240 VAC
• Throw Type: Single Throw
• Terminal Accommodation: #14 AWG - #10 AWG
• Voltage: 120/277 VAC
