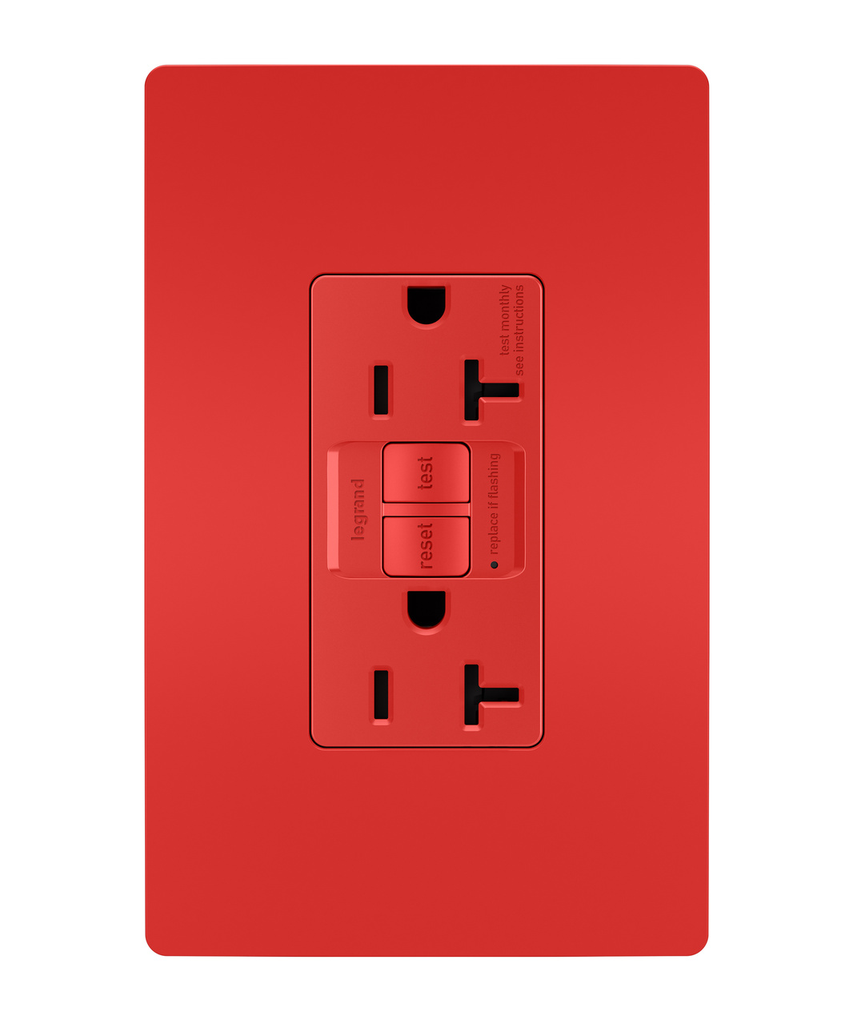

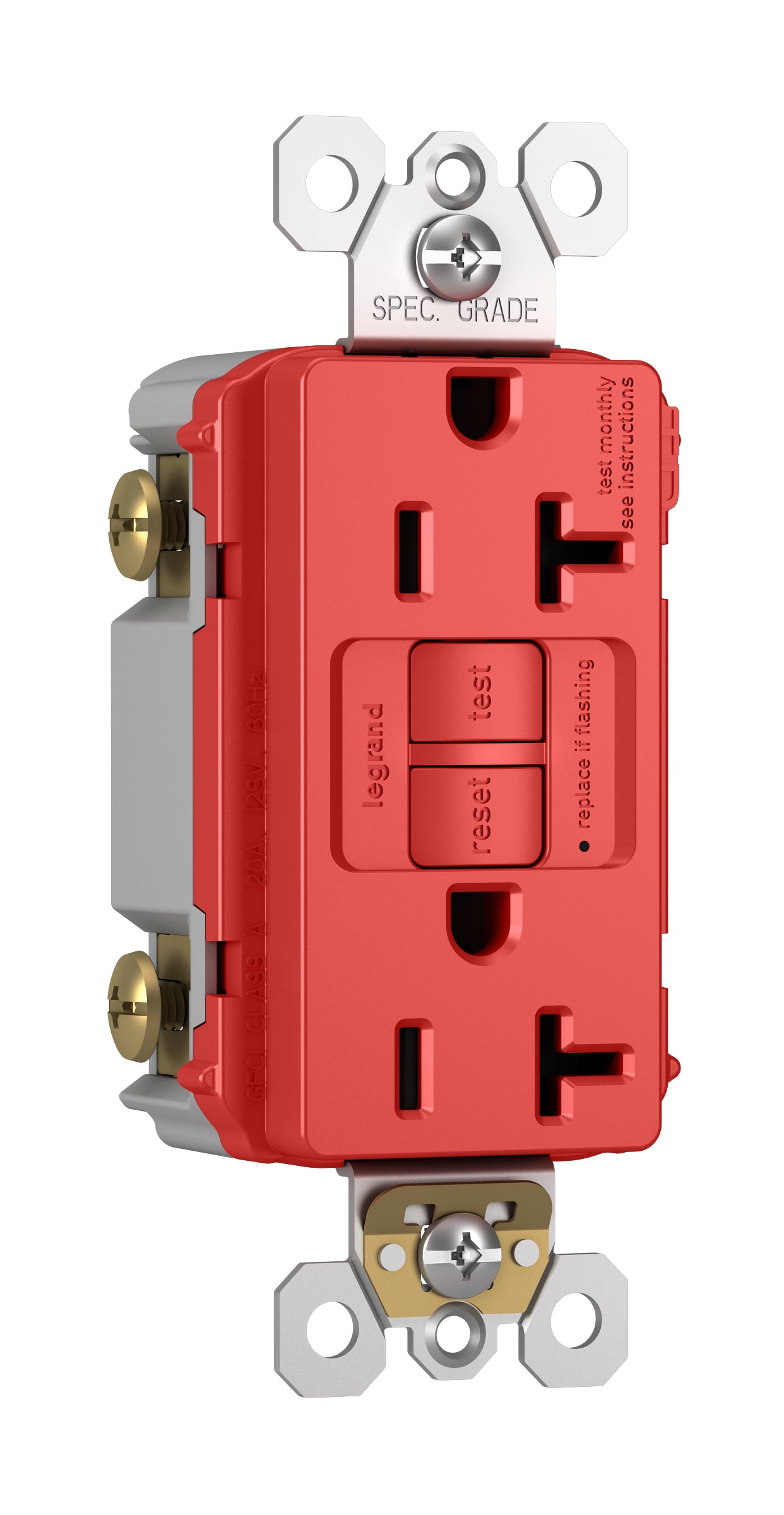

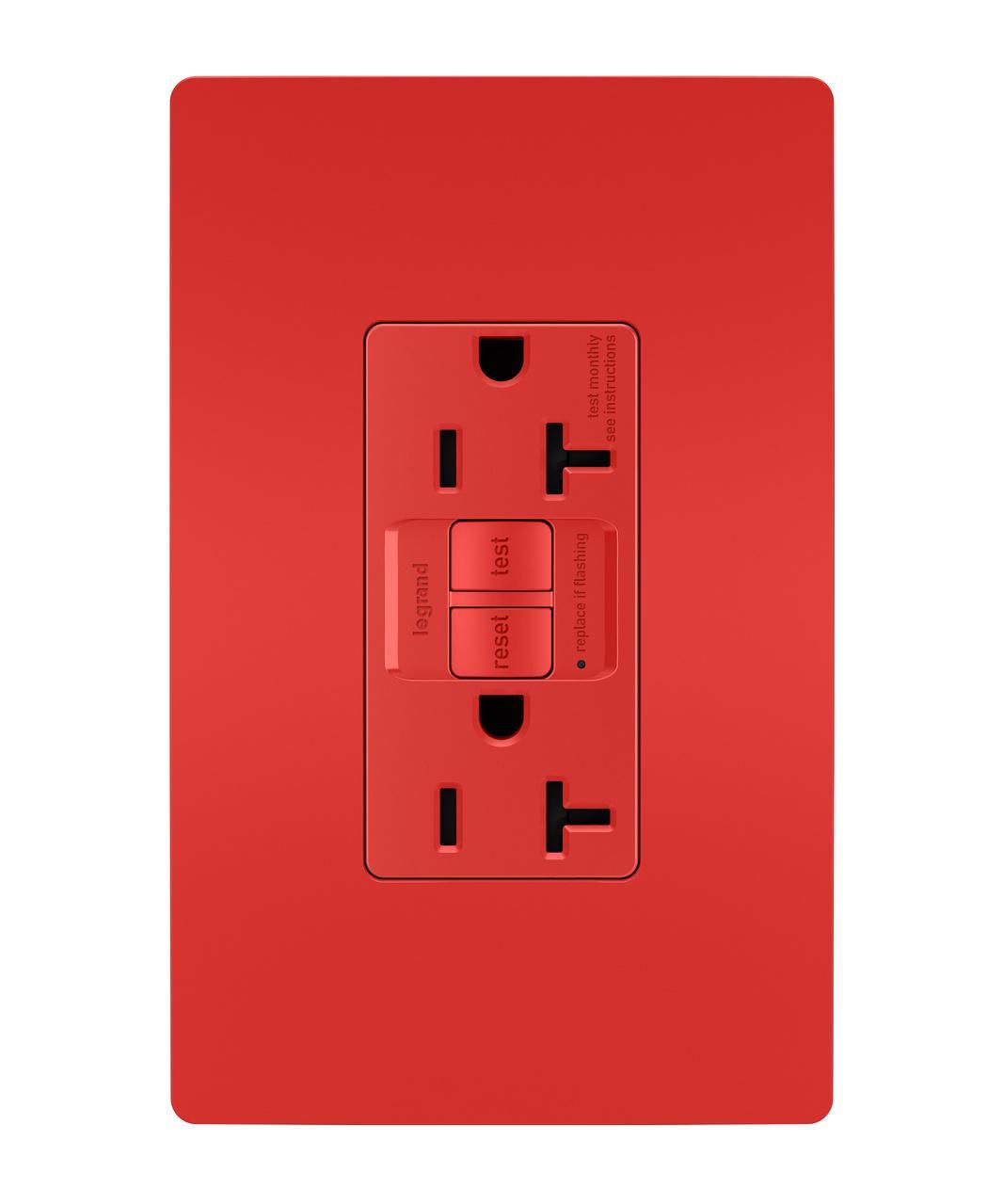

Pass & Seymour 2097TRRED Duplex Self-Test Tamper-Resistant GFCI Receptacle 125V 20A

Product Description

The Pass & Seymour 2097TRRED is a self-test tamper-resistant GFCI receptacle with a voltage rating of one hundred twenty-five volts and an amperage rating of twenty amps. This receptacle features automatic testing every three seconds to ensure ongoing protection against ground faults. The red color of the receptacle easily identifies it as a GFCI outlet.

• Self-test feature that conducts checks every three seconds.
• Includes SafeLock protection that disconnects power if the device fails.
• Designed for easy installation with back and side wire capabilities.

Product Highlights

GFCI protection is essential in areas near water sources, making this receptacle suitable for kitchens, bathrooms, and outdoor settings.

Product Information

Standard Information

• Brand: Pass & Seymour
• MPN: 2097TRRED

Technical Specifications

• Voltage Rating: 125 Volt
• Amperage Rating: 20 Amp
• Color: Red
• Material: Thermoplastic
• Frequency Rating: 60 Hz
• Dimensions: 1.03 inches Length x 1.73 inches Width x 4.2 inches Height
• Temperature Rating: -35 to 66 degrees C
• NEMA Rating: 5-20R
• Number of Wires: 3
• Number of Poles: 2
• Grounding: Auto Grounding
• Certifications: cULus Listed
• Trip Time: 0.025 Second Nominal
• Applications: For Commercial and Residential Use
