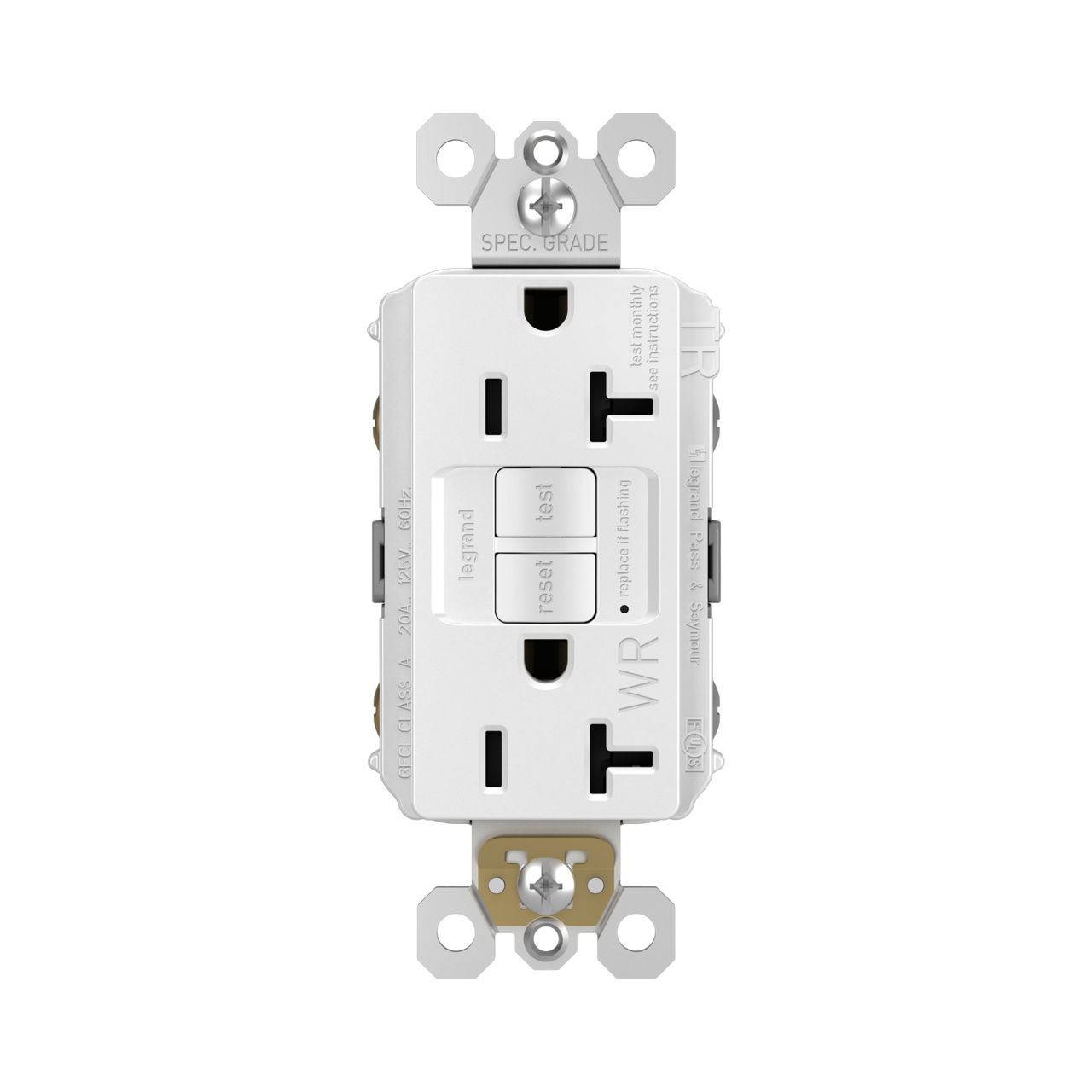

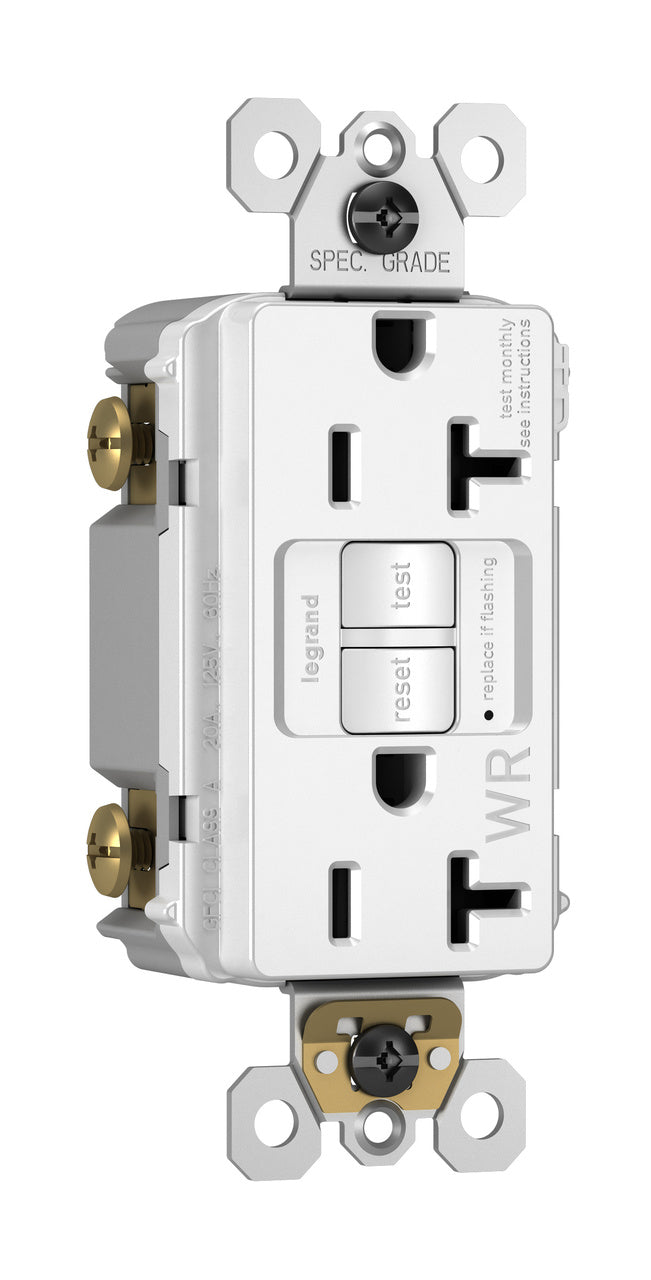

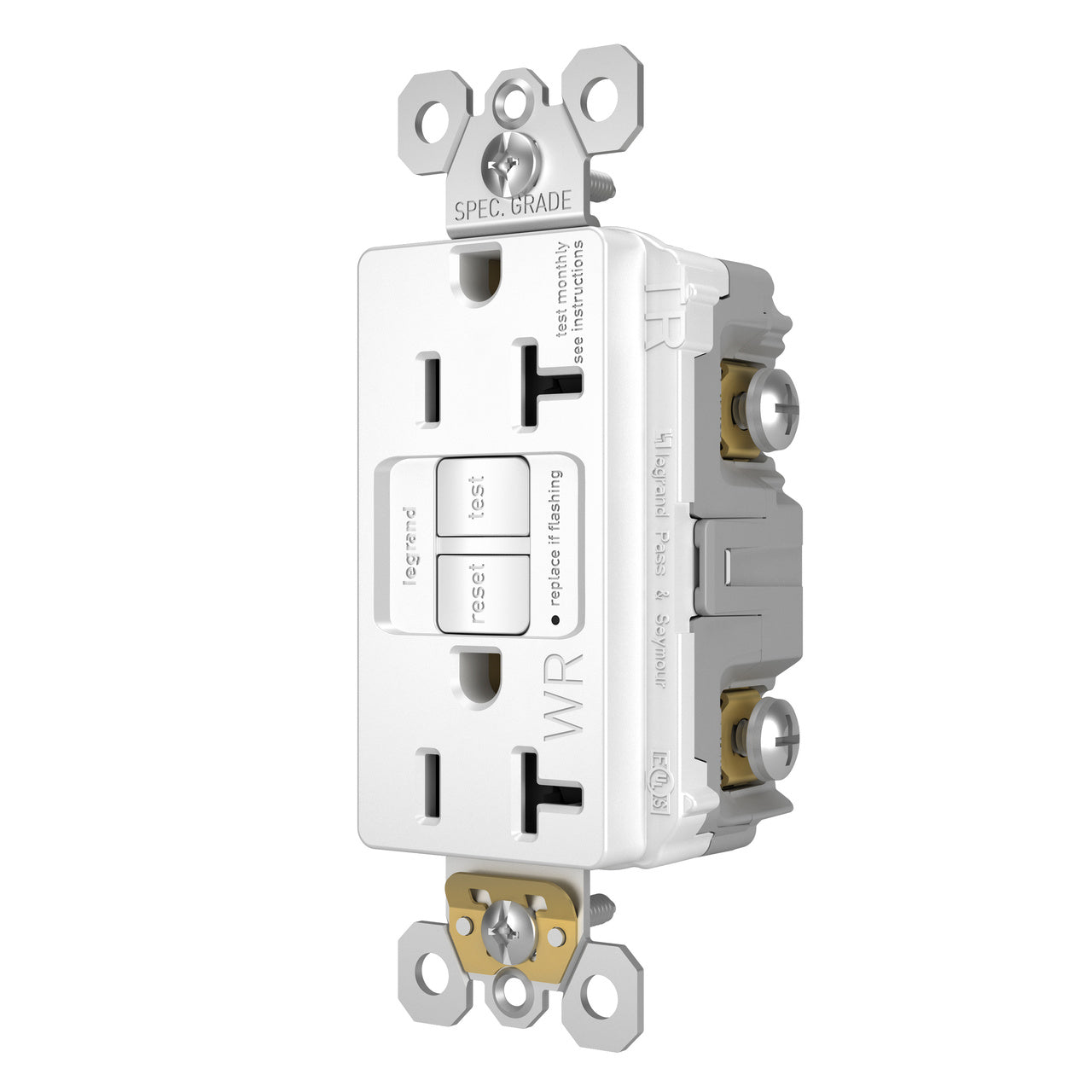

Pass & Seymour 2097TRAPLW Radiant Tamper-Resistant Weather-Resistant 20A Duplex Self-Test GFCI Receptacles with SafeLock Protection

Product Description

The Pass & Seymour 2097TRAPLW GFCI receptacle from the Radiant collection self-tests every three seconds, ensuring shock protection. Meeting National Electrical Code requirements, it simplifies identifying and resolving trips. Designed for outdoor use, this model includes tamper and weather resistance. 20A outlets are suitable for larger appliances and commercial settings.

• Protects against shock caused by ground-fault occurrences with a reset button right on the device.
• Conducts an industry-leading automatic self-test every 3 seconds, with an indicator light that flashes upon failure.
• Equipped with SafeLock protection: if critical components are damaged and protection is lost, power to the outlet is disconnected.

Product Highlights

Maximize safety with GFCI protection featuring sleek, clean lines. It replaces any standard receptacle with ease, in as little as 10 minutes. Features durable, high-impact resistant thermoplastic construction.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part Number: 2097TRAPLW
• Country of Origin: China

Technical Specifications

• Color: White
• Finish: Satin
• Application Sector: Commercial, Multi-Dwelling Unit, Residential
• Product Line: Pass & Seymour
• Country Of Origin: China
• Features: Self-Test, Weatherproof

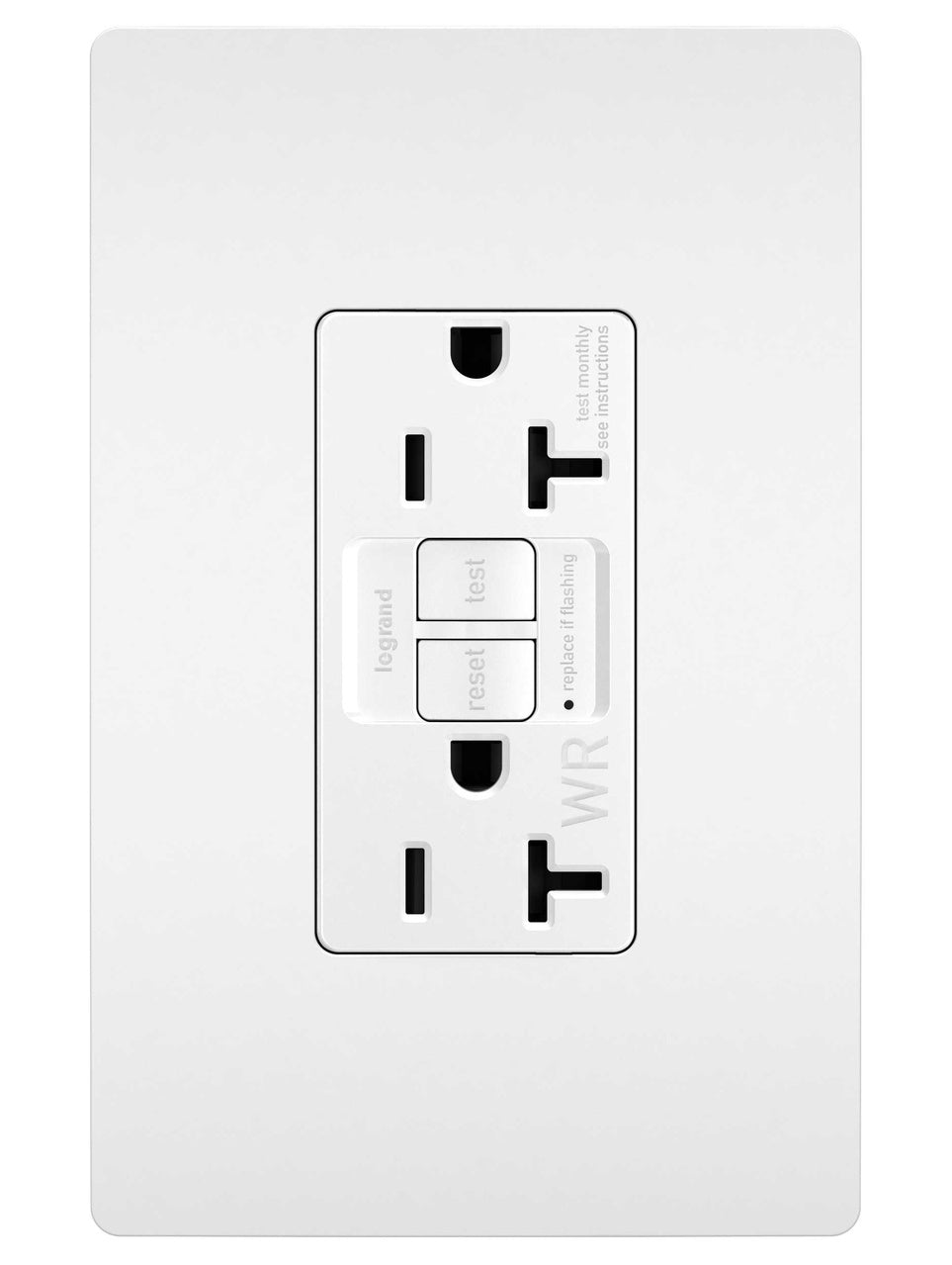

• Wall Plate Included: Yes
• Number of Receptacles: 2
• Outlet Type: GFCI, Tamper-Resistant, Weather-Resistant
• Standard: cULus, UL Listed, FSUL
• UPC Number: 785007036107
• Product Depth US: 1.13 in
• Product Height US: 4.2 in
• Product Width US: 1.73 in
• cULus ListingNumber: E42190
• cULus Listed: Yes
• Product Environmental Profile: Yes
• Amperage: 20 A

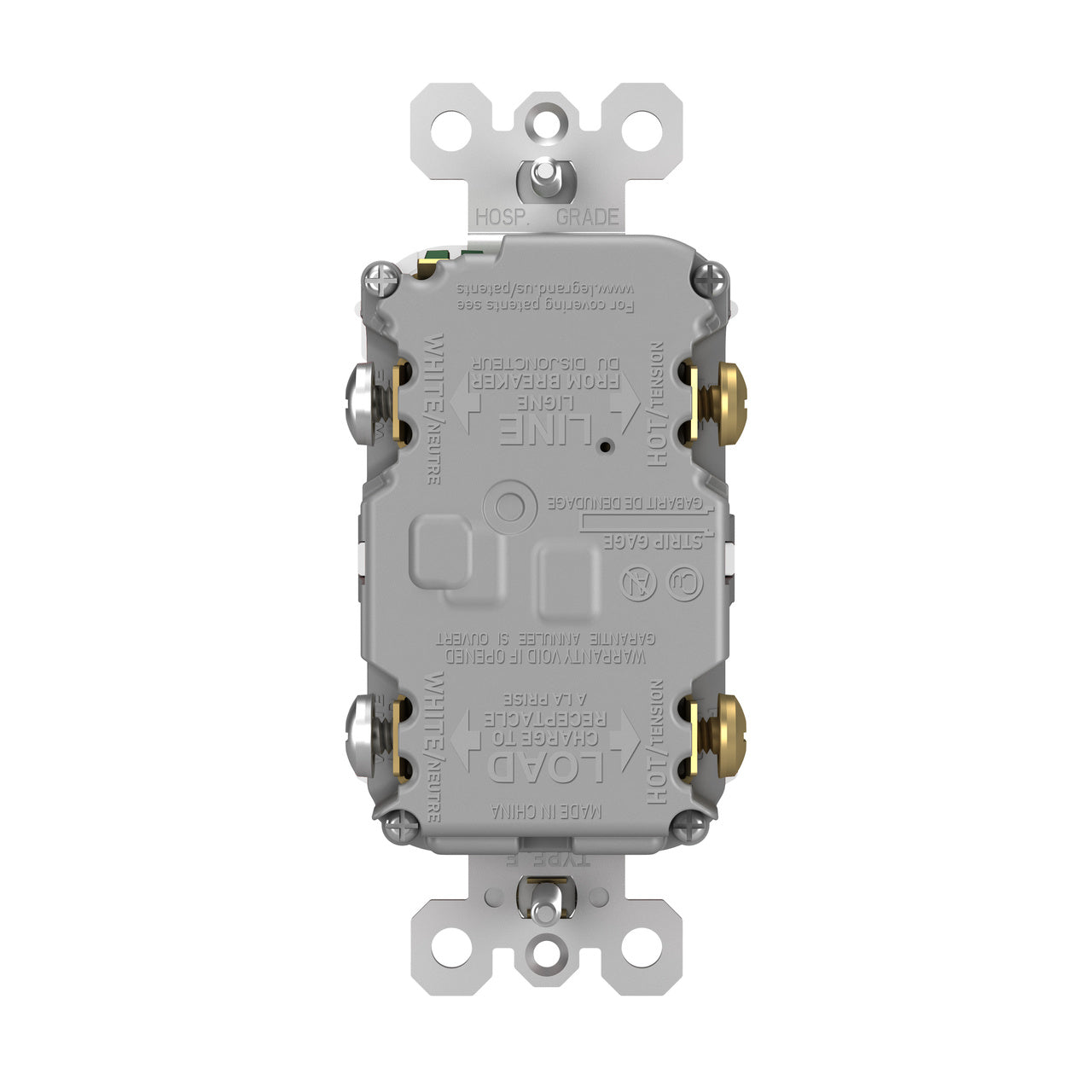

• Connection Location: Back and Side
• Wire Connection Type: Internal Pressure Plates, Screw Terminals
• Environmental Conditions: 95% Humidity, UL 94 V2
• Indoor/Outdoor: Both
• Is Tamper-Resistant: Yes
• Mounting Type: Box
• NEMA Configuration Code: 5-20R
• Number of Gangs: 1
• Number of Poles: Double Pole
• Number of Wires: 3
• Voltage: 125.0 V
