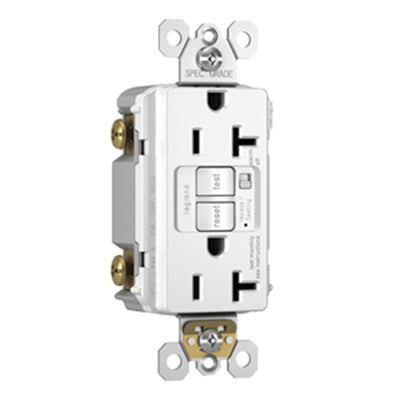

Pass Seymour 2097-TRAW Tamper-Resistant Self-Test GFCI Duplex Receptacle With Audible Alarm 20-Amp 125-Volt NEMA 5-20R

Product Description

The Pass Seymour 2097-TRAW is a tamper-resistant self-test GFCI duplex receptacle designed to enhance safety in electrical installations. It features a current rating of twenty amps and a voltage rating of one hundred twenty-five volts, making it suitable for various applications. The device incorporates an audible alarm that alerts users to a tripped condition.

• Trip level of four to six milli-amperes with a quick trip time of zero point zero two five seconds
• Durable nylon construction withstands harsh environments and meets V-2 flammability standards
• Configured for NEMA 5-20R with back or side terminal connections for flexibility

Product Highlights

This GFCI duplex receptacle is UL and CSA certified, ensuring compliance with industry standards for safety and reliability. It features a patented shutter system to prevent the improper insertion of foreign objects.

Product Information

Standard Information

• Brand: Pass Seymour
• Country of Origin: China

Technical Specifications

• Manufacturer Part Number: 2097-TRAW
• Voltage Rating: 125 Volt
• Amperage Rating: 20 Amp
• NEMA Configuration: NEMA 5-20R
• Dielectric Strength: 1500 Volt Minimum
• Trip Level: 4 - 6 Milli-Amp
• Trip Time: 0.025 sec
• Dimensions: 1.73 Inch Width x 1.03 Inch Depth x 4.2 Inch Height
