Pass Seymour 1597TRAWCCD4 Gfci Receptacle 15A 125V White 4 Pack

Product Description

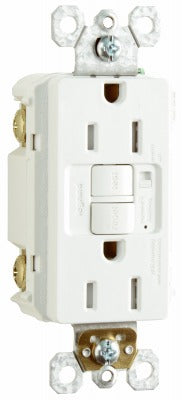

The PASS SEYMOUR 1597TRAWCCD4 is a decorator-style, tamper-resistant, self-testing GFCI receptacle rated at 15 amps and 125 volts. It is designed for use in residential and light commercial branch circuits where ground-fault protection is required by code. The receptacle features an audible alarm that sounds when the device has tripped or failed a self-test cycle, giving installers and occupants a clear indication that protection is no longer active. The high-impact-resistant thermoplastic body holds up to the physical demands of everyday installation. This package contains 4 receptacles. Licensed electricians install this device during new construction, remodels, or receptacle replacements in wet or damp-location circuits.

This GFCI receptacle is suited for kitchens, bathrooms, garages, outdoor outlets, unfinished basements, crawl spaces, and other locations specified under NEC Article 210.8. The decorator form factor fits standard single-gang and multi-gang wallplates. The tamper-resistant shutter mechanism blocks insertion of foreign objects into a single slot, meeting NEC requirements for tamper resistance in dwelling units. The Safelock protection feature prevents the receptacle from being wired in a way that bypasses GFCI protection on downstream outlets.

Key Features

• Self-testing circuitry automatically verifies GFCI protection status without manual intervention
• Audible alarm activates when the device trips or detects a self-test failure, alerting occupants to lost protection
• Tamper-resistant shutters meet NEC dwelling-unit requirements for child safety
• Safelock protection prevents miswiring that would defeat downstream GFCI coverage
• High-impact-resistant thermoplastic construction for durability in demanding install environments
• Decorator style fits standard decorator wallplates and multi-gang configurations

Compatibility

Designed as an OEM-style replacement or new-construction GFCI receptacle for standard 15-amp, 125-volt residential and light commercial branch circuits requiring ground-fault protection per NEC Article 210.8.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the NEC and all applicable local codes. De-energize the branch circuit at the panel and verify zero voltage with a meter before beginning wiring. Follow the LINE and LOAD terminal markings precisely if downstream outlet protection is required. After installation, press the TEST button to confirm proper GFCI operation before energizing downstream devices.
