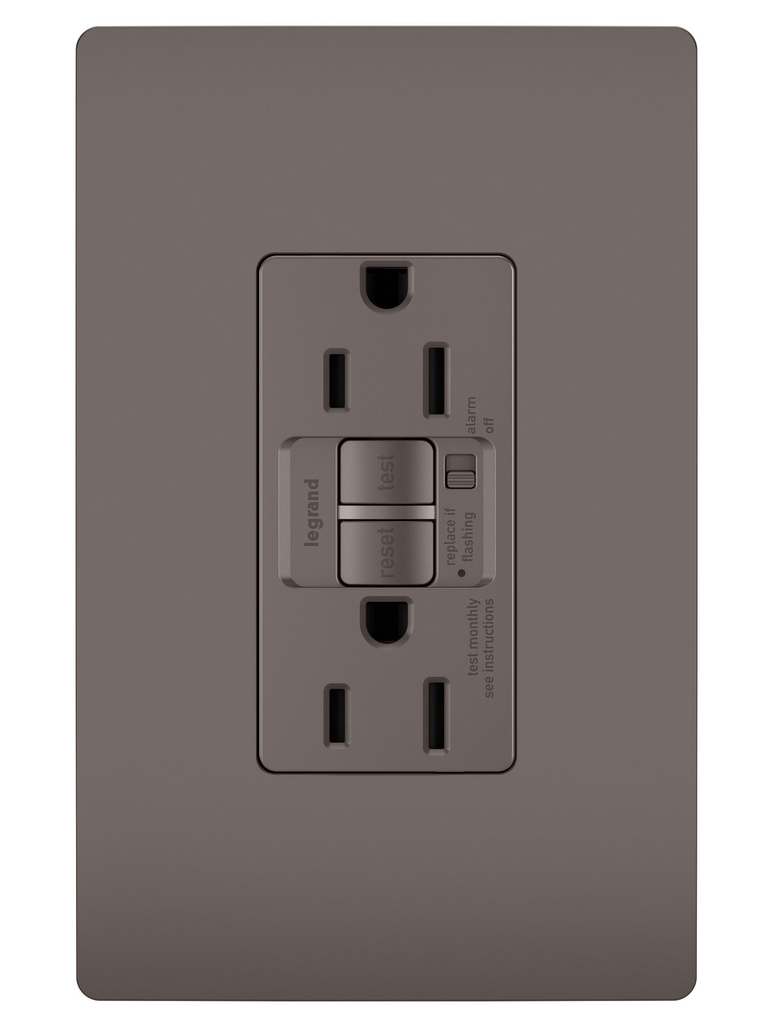

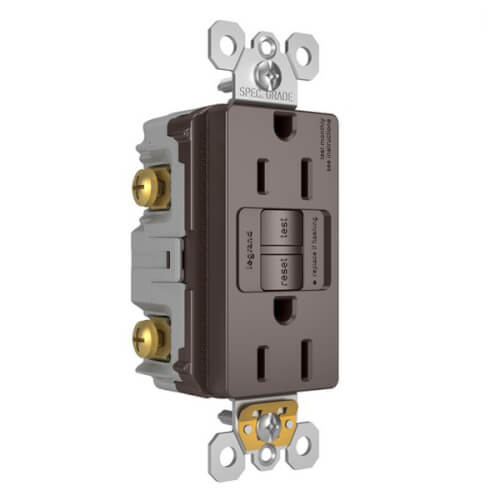

Pass & Seymour 1597TR GFCI Receptacle Duplex Tamper-Resistant 125 VAC 15 Amp NEMA 5-15R

Product Description

The Pass & Seymour 1597TR GFCI receptacle is designed with safety in mind. This device offers duplex tamper-resistant protection and operates at one hundred twenty-five volts with a current rating of fifteen amps. It is suitable for residential and specification applications.

• Self-testing function every three seconds
• SafeLock protection disconnects power if a fault is detected
• High impact-resistant thermoplastic construction

Product Highlights

The device is user-friendly, ensuring that in the event of a fault, it automatically tests itself for efficiency.

Product Information

Standard Information

• Product Type: Duplex Self-Test Tamper-Resistant
• Voltage Rating: 125 VAC

Technical Specifications

• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: NEMA 5-15R
• Temperature Rating: -35 to 66 degrees C
• Frequency Rating: 60 Hz
• Dimensions: 1.03 inches L x 1.73 inches W x 4.2 inches H
• Material: Nylon/Thermoplastic
• Weight: 0.25 lb
