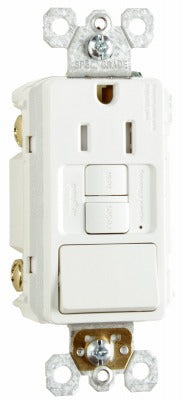

Pass Seymour 1597SWTTRWCCD4 Gfci Switch Combo 15A 125V White 4-pack

Product Description

The PASS SEYMOUR 1597SWTTRWCCD4 is a decorator-style combination device that integrates a single-pole switch and a self-testing tamper resistant GFCI receptacle into a single unit. Rated at 15 amps and 125 volts, it delivers both switching and ground-fault protection from one gang location. The body is constructed from high-impact resistant thermoplastic, and the GFCI function includes Safelock Protection, which locks out power if the device fails a self-test, preventing a false sense of security. This unit supports up/down switching orientation and is sold in a pack of four. It is installed by licensed electricians in residential and light commercial applications.

This combination device is suited for locations that require both switching control and GFCI protection at the same outlet box, such as bathrooms, kitchens, garages, and outdoor-adjacent spaces. The single-pole switch is rated for motor loads up to 1/2 HP, making it appropriate for exhaust fans and similar equipment. The tamper resistant receptacle meets code requirements for child protection in dwelling units. The decorator form factor fits standard decorator wallplates. Each package contains four units, suited for multi-location jobs or service truck stocking.

Key Features

• Self-testing GFCI automatically verifies ground-fault protection at regular intervals
• Safelock Protection locks out the receptacle if the device fails a self-test
• Tamper resistant shutters meet NEC requirements for dwelling unit receptacle protection
• Single-pole switch rated for up to 1/2 HP motor loads
• Up/down switching orientation supported
• High-impact resistant thermoplastic body for durability in demanding environments
• Decorator style fits standard decorator wallplates and multi-gang configurations

Compatibility

Designed as an OEM-style replacement or new-installation combination GFCI-switch device for standard single-gang electrical boxes in residential and light commercial wiring applications.

Installation Notes

Installation must be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Always shut off the branch circuit breaker and verify the circuit is de-energized with a non-contact voltage tester before wiring. Follow the line and load terminal markings on the device for correct GFCI protection of downstream outlets. The self-test function should be verified after installation using the test and reset buttons.
