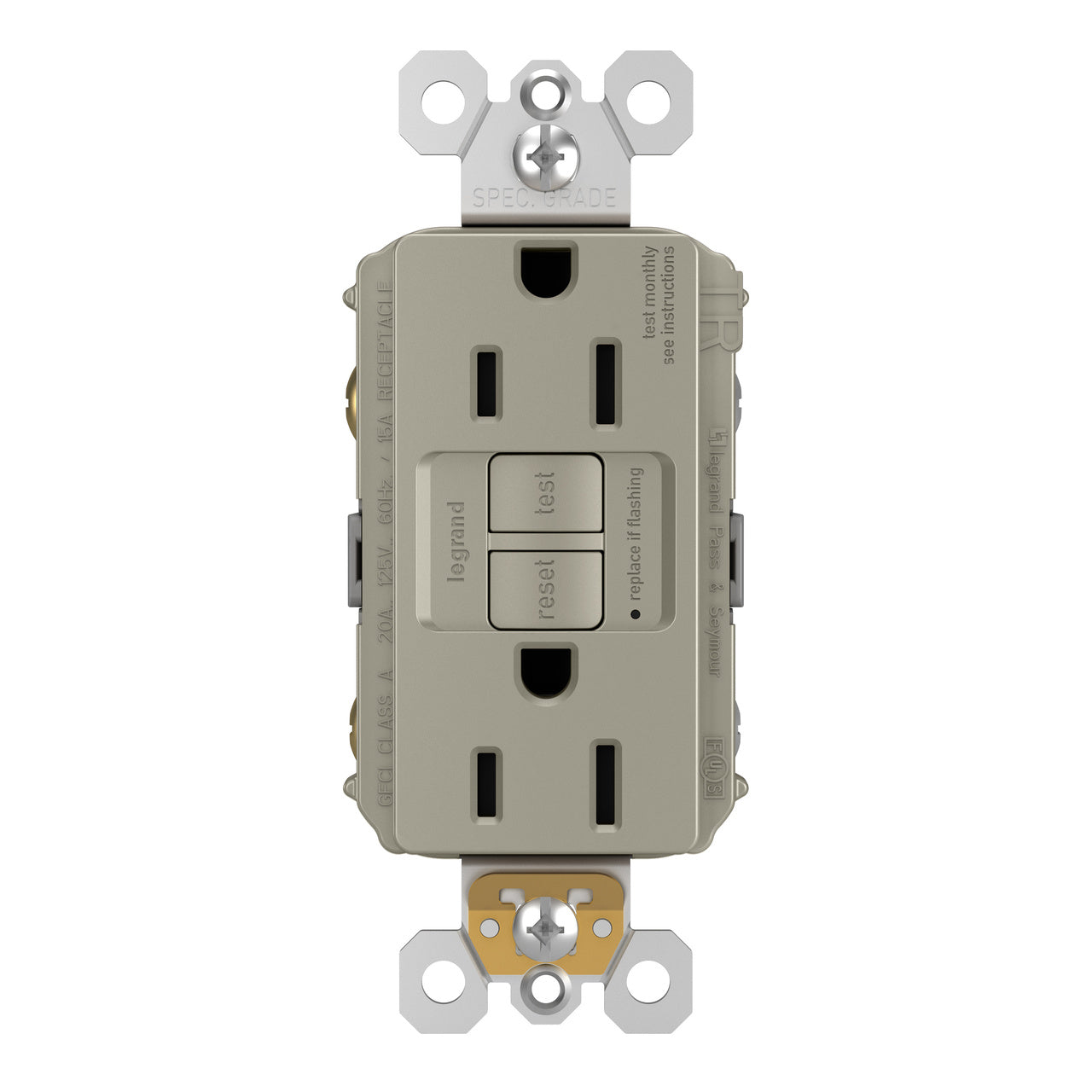

Pass & Seymour 1597-TRNICC4 radiant Tamper-Resistant 15A Duplex Self-Test GFCI Receptacles with SafeLock Protection

Product Description

The Pass & Seymour 1597-TRNICC4 GFCI receptacles from the radiant collection self-test automatically every three seconds to ensure reliable protection from shock due to ground fault occurrences. Meeting National Electrical Code requirements for ground fault protection. Spec-Grade devices are engineered to meet federal specifications for use in commercial installations.

• Protects against shock caused by ground-fault occurrences. Unlike breaker alternatives, GFCI receptacles make it easier to fix trips with a reset button right on the device.
• Conducts an industry-leading automatic self-test every 3 seconds. If the device ever fails, the indicator light flashes to signal it should be replaced.
• Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.

Product Highlights

Maximize safety with GFCI protection featuring the sleek, clean lines of radiant. GFCI protection is required by code in bathrooms, kitchens, garages, basements, and outdoor areas.

Product Information

Standard Information

• Brand: Pass & Seymour
• Manufacturer Part Number: 1597-TRNICC4
• Country of Origin: China

Technical Specifications

• Color: Nickel
• Finish: Metallic
• Application Sector: Commercial, Multi-Dwelling Unit, Residential
• Product Line: Pass & Seymour
• Country Of Origin: China
• Self-Test: Yes
• Wall Plate Included: No
• Number of Receptacles: 2
• Outlet Type: GFCI, Tamper-Resistant
• UPC Number: 785007049398
• Product Depth US: 1.13 in
• Product Height US: 4.2 in
• Product Width US: 1.73 in
• cULus ListingNumber: E42190
• cULus Listed: Yes
• Product Environmental Profile: Yes
• Amperage: 15 A
• Connection Location: Back and Side
• Wire Connection Type: Internal Pressure Plates, Screw Terminals
• Environmental Conditions: 95% Humidity, UL 94 V2
• Frequency Rating: 60 Hz
• Indoor/Outdoor: Indoor
• Is Tamper-Resistant: Yes
• Mounting Type: Box
• NEMA Configuration Code: 5-15R
• Number of Gangs: 1
• Number of Poles: Double Pole
• Number of Wires: 3
• Voltage: 125.0 V
• Brand: Pass & Seymour
• GTIN: 0785007049398
• UPC: 0785007049398
• Plate Design: Duplex Outlet
• Suitable For: Wall, Interior
• Operation Method: Outlet
• Outlet Configuration: Duplex
• Outlet Style: Double
• Box Shape: Rectangular
• Material: Nickel
• Model: 1597TRNICC4
• Resistance Properties: Tamper Resistant
• Applications: Commercial,Multi-Dwelling Unit,Residential
• Sub Brand: radiant
• Product UPC: 78500704939
• Depth: 1.13 Inch
• Height: 4.2 Inch
• Width: 1.73 in
• Certifications: CULUS
