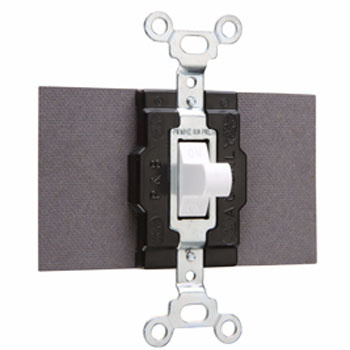

Pass & Seymour 1250W Manual Controller, Single Pole, Double Throw, 15A 120/277V

Product Description

The Pass & Seymour 1250W is a reliable manual controller designed for single pole and double throw applications. This toggle switch operates at 15 amps with a voltage rating of 120/277 volts, making it suitable for various industrial uses. The switch is constructed with durable materials to ensure long-lasting performance in demanding conditions.

• Single Pole, Double Throw design for versatile control.
• Built to handle 15 amps and works with 120/277V systems.
• Compatible with #14 - #10 AWG copper or copper-clad conductors.

Product Highlights

This product features oversized silver alloy contacts that improve heat dissipation, enhancing its life span. It can mount in standard device boxes or NEMA 1 enclosures.

Product Information

Standard Information

• Brand: Pass & Seymour
• Type: Non-Reversing

Technical Specifications

• Amperage: 15 Amp
• Voltage: 120 Volt
• Height: 3.281 Inch
• Width: 1.5 Inch
• Depth: 1.469 Inch
• Contact Rating: 15 Amp, 120/277V
• Applications: Industrial
• Contact Configuration: SPDT
