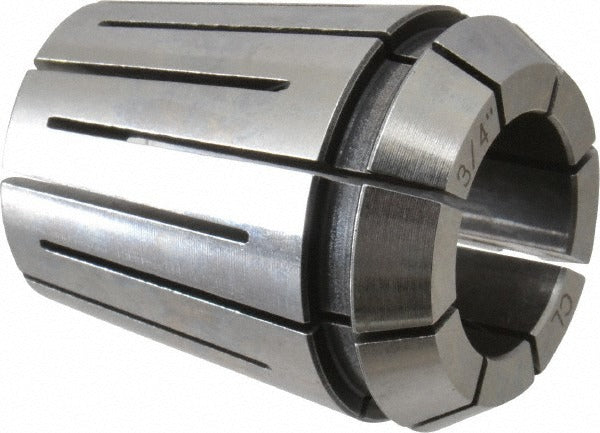

Parlec ERS32-0750 ER32 Collet 0.75 Inch

Product Description

The PARLEC ERS32-0750 is an ER32 series collet designed for use in ER32-compatible toolholding systems on CNC machining centers, milling machines, and drilling equipment. This collet accepts a 0.75 inch (3/4 inch) shank diameter tool and has an overall length of 1.574 inches. ER32 collets are the workholding standard across a wide range of precision machining operations, and the ERS32-0750 provides consistent clamping force and concentricity for turning, milling, drilling, and tapping applications. Installation and removal are handled by machinists and tool crib personnel using a standard ER32 collet chuck and spanner wrench.

This collet is suited for use in machine shops running CNC or manual spindle equipment with ER32-spec collet chucks. It is appropriate for both production and job-shop environments where 0.75 inch tooling such as end mills, drills, reamers, or taps are routinely used. The compact 1.574 inch overall length keeps the tool assembly close to the spindle, reducing overhang and improving rigidity during cuts.

Key Features

• ER32 collet series for broad chuck compatibility
• 0.75 inch (3/4 inch) collet bore for standard shank tooling
• 1.574 inch overall length minimizes tool overhang
• 1800 clamping pressure rating for secure tool retention
• Lightweight at 0.33 pounds for easy handling and tool changes

Compatibility

Designed as an OEM-style replacement or direct-fit collet for ER32-standard collet chucks used in CNC milling, drilling, and tapping applications.

Installation Notes

Installation is performed by machinists or toolroom personnel. Before seating the collet, ensure the spindle is fully powered down and the machine is in a safe, locked-out state. Insert the collet into the ER32 collet chuck and tighten using the appropriate spanner wrench to the chuck manufacturer's specified torque range. Inspect the collet bore and chuck taper for chips or debris before each use to maintain concentricity and prevent premature wear.
