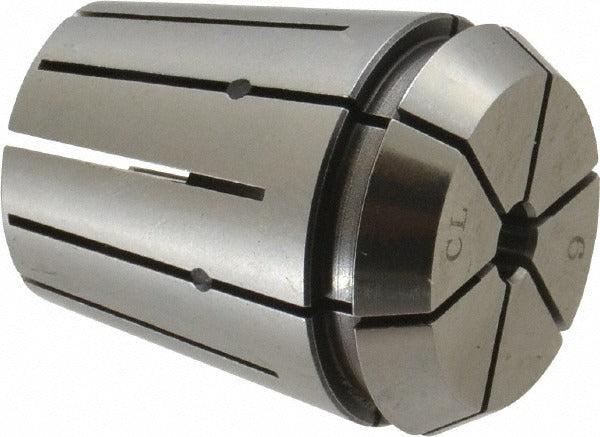

Parlec ERS32-0236 ER32 Collet 6 Mm Bore

Product Description

The PARLEC ERS32-0236 is an ER32 series collet designed for precision workholding in CNC machining and manual milling applications. It accepts a 6 mm bore diameter and measures 1.574 inches overall length with a 1.3-inch overall diameter. ER32 collets provide consistent clamping force across the bore range, making them a standard choice for shops running ER-compatible toolholders. Licensed machinists and toolroom technicians install this collet into ER32-spec chucks to secure round-shank cutting tools, drills, reamers, and taps during cutting operations.

This collet is suited for use in ER32-compatible chucks on vertical machining centers, horizontal mills, CNC lathes with live tooling, and manual milling machines. The 6 mm bore size accommodates metric tooling common in precision machining environments. It is a practical choice for shops running mixed metric and imperial tooling inventories that require reliable, repeatable runout performance at the spindle.

Key Features

• ER32 collet series - fits any ER32-spec chuck or toolholder
• 6 mm bore diameter for metric round-shank tooling
• 1.574-inch overall length for standard ER32 chuck engagement
• 1,800 psi rated clamping pressure for secure tool retention
• Compact 1.3-inch overall diameter
• Lightweight at 0.33 pounds for minimal spindle load contribution

Compatibility

Designed for use with ER32-series compatible chucks and toolholders accepting a 6 mm bore collet.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the machine spindle before inserting or removing collets. Seat the collet fully into the ER32 nut before threading onto the chuck body - never tighten the nut onto an unseated collet. Clean the chuck taper and collet exterior of chips and coolant residue prior to assembly to maintain runout accuracy.
