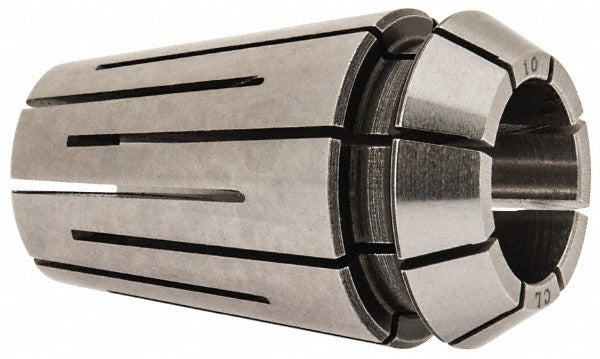

Parlec ERS16-0393 ER16 Collet 10 Mm

Product Description

The PARLEC ERS16-0393 is an ER16 series collet designed to hold 10 mm diameter tooling in compatible ER16 collet chucks. This precision workholding component clamps cutting tools, drills, reamers, and end mills securely during milling, drilling, and boring operations. It measures 1.082 inches in overall length with an overall diameter of 0.669 inches. The ER16 series is a widely adopted collet standard in CNC machining and manual milling centers. Machinists and toolroom technicians install and change these collets as part of routine tool setup and changeover. Accurate tool holding and proper clamping force are critical to dimensional accuracy and tool life.

This collet is suited for light to medium-duty machining applications in CNC machining centers, manual mills, and drill presses equipped with ER16 collet chuck bodies. It accepts 10 mm shank tooling and is appropriate for production environments, job shops, and toolroom use where consistent, repeatable tool holding is required. The compact ER16 form factor makes it common in high-speed spindle applications and benchtop CNC equipment where space is limited.

Key Features

• ER16 collet series - widely compatible with standard ER16 chuck bodies
• 10 mm collet size for direct clamping of 10 mm shank tools
• 1.082 inch overall length for compact spindle packaging
• 0.669 inch overall diameter fits standard ER16 chuck geometry
• 1800 clamping pressure rating for secure tool retention during cutting operations

Compatibility

Designed as an OEM-style replacement or standard tooling component for use with ER16 collet chuck bodies accepting 10 mm collets.

Installation Notes

ER16 collets are installed and removed by machinists or toolroom technicians using the appropriate ER16 spanner wrench and collet nut. Always ensure the spindle is fully stopped and the machine is powered down before changing collets. Inspect the collet bore and chuck taper for chips or damage before seating the collet. Do not exceed the rated clamping torque for the chuck body being used.
