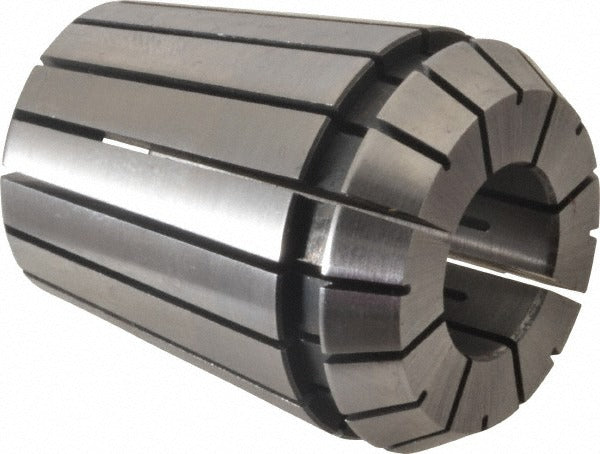

Parlec ER32-0593 ER32 Collet 0.593 in Capacity

Product Description

The PARLEC ER32-0593 is an ER32 series collet designed for precision workholding in CNC machining and milling applications. It accepts tool shanks up to 0.593 inches at maximum capacity, with a minimum clamping capacity of 0.554 inches, giving the tool a clamping range appropriate for a wide variety of end mills, drills, and round-shank tooling. The collet measures 1.574 inches in overall length. Machinists and tooling technicians install this collet in compatible ER32 collet chucks mounted to CNC machining centers, milling machines, and similar spindle equipment.

This collet fits ER32 collet chuck holders used in production and job-shop machining environments. It is suited for both roughing and finishing operations where secure, repeatable tool clamping is required. The ER32 standard is widely adopted across CNC machining centers, manual mills, and live tooling applications, making this collet a common replacement and standard stock item for machine shops running ER32 toolholding systems.

Key Features

• ER32 collet series for broad compatibility with ER32 chuck holders
• Maximum clamping capacity of 0.593 inches for common shank sizes
• Minimum clamping capacity of 0.554 inches provides a defined clamping range
• Overall length of 1.574 inches for standard ER32 chuck seating
• Lightweight at 0.33 pounds for easy handling during tool changes

Compatibility

Designed as an OEM-style replacement collet for use in ER32 series collet chuck holders. Specific compatible chuck models were not provided; verify ER32 series designation on the chuck before installation.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Power down and lock out the machine spindle before removing or installing collets. Seat the collet fully into the ER32 nut before inserting the tool shank, and ensure the shank is clean and free of chips or debris prior to clamping. Follow the machine manufacturer and toolholder manufacturer torque recommendations for the ER32 nut using a calibrated collet nut wrench.
