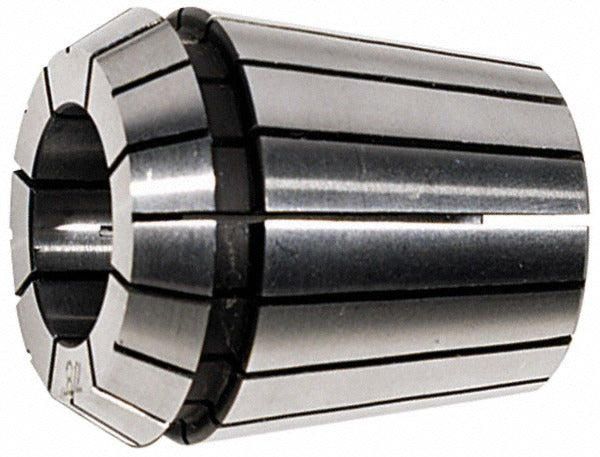

Parlec ER25-0062 ER25 Collet 0.062 Inch

Product Description

The PARLEC ER25-0062 is an ER25 series collet designed for use in CNC machining centers, milling machines, and other rotating spindle equipment that accepts ER25 toolholders. It clamps tool shanks with a clamping range down to 0.04 inches and a maximum collet capacity of 0.062 inches, making it suited for small-diameter end mills, drills, and reamers. The collet measures 1.338 inches overall length and is built to the ER25 standard, ensuring consistent runout performance. Machinists and CNC setup technicians install this collet as part of a standard ER toolholding system.

This collet is used in production and job-shop environments where precise small-diameter tool clamping is required. It fits any ER25-compliant collet chuck or toolholder nut, covering a wide range of machining applications including drilling, milling, tapping, and reaming operations on mills and machining centers. The 0.062 inch size is a common selection for small-shank tooling used in precision metalworking and light-duty cutting operations.

Key Features

• ER25 series collet compatible with standard ER25 collet chucks and toolholder nuts
• Maximum collet capacity of 0.062 inches for small-diameter tool shanks
• Minimum collet capacity of 0.04 inches for clamping range flexibility
• Overall length of 1.338 inches for consistent projection and setup repeatability
• Lightweight at 0.18 pounds for easy handling during tool changes

Compatibility

Designed as an OEM-style replacement or standard collet for use with ER25-compliant collet chucks and toolholding systems.

Installation Notes

Installation is performed by machinists or CNC setup technicians. Before changing collets, ensure the spindle is fully stopped and the machine is in a locked-out, de-energized state per applicable OSHA lockout/tagout procedures. The collet should be seated fully into the ER25 collet nut before threading onto the toolholder body. Do not tighten the collet nut without a tool shank or plug gauge inserted, as this can deform the collet.
