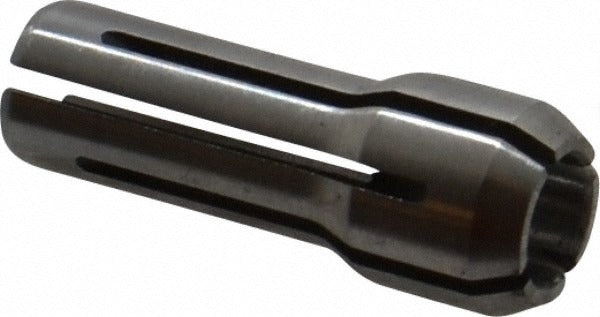

Parlec DA300-0203 Double Angle Collet DA300 13/64 in

Product Description

The PARLEC DA300-0203 is a Double Angle (DA) collet in the DA300 series, designed to hold round-shank cutting tools and workholding tooling in compatible DA-style collet chucks. This collet accepts tool shanks from 0.1875 inches to 0.2031 inches in diameter and has an overall length of 1.0 inch and an overall diameter of 0.375 inch. Machinists and toolroom technicians install this collet in CNC machining centers, lathes, and manual milling machines where precise, repeatable tool gripping is required. Its double-angle geometry provides secure clamping force across the full grip range.

This collet is suited for production and job-shop environments where 13/64 inch diameter tooling - such as drills, end mills, and reamers - is run in DA300-compatible collet chucks. It is appropriate for both light and moderate-duty cutting operations on ferrous and non-ferrous materials. The 1.0 inch overall length makes it a standard fit in DA300 chuck bodies used in both manual and CNC spindle applications.

Key Features

• DA300 series double-angle collet for use in DA300-style collet chucks
• Gripping range of 0.1875 inches to 0.2031 inches accommodates 13/64 inch shank tooling
• Overall length of 1.0 inch for standard DA300 chuck body fitment
• Overall diameter of 0.375 inch
• Single-piece quantity - sold individually

Compatibility

Designed as an OEM-style replacement or standard collet for use in DA300-series double-angle collet chucks compatible with the DA300 collet specification.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the spindle before inserting or removing collets. Inspect the collet bore and chuck taper for chips, burrs, or wear before seating. Do not exceed the collet gripping range, as under- or over-sized shanks will result in reduced clamping force and potential tool pull-out.
