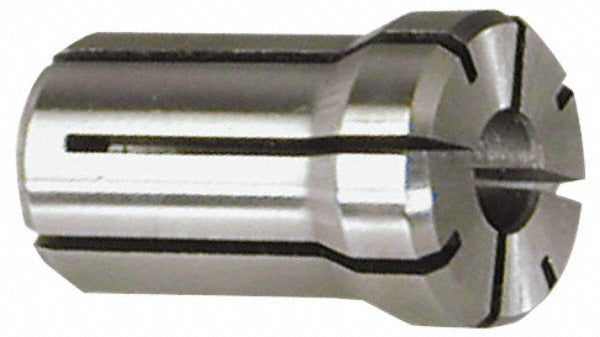

Parlec DA200-9MM Double Angle Collet 9mm 0.3543 in

Product Description

The PARLEC DA200-9MM is a double angle collet designed for use with DA200 series collet chucks on CNC machining centers and manual milling machines. With a bore size of 9mm (0.3543 inches) and an overall length of 1.187 inches (30.15mm), this collet provides secure, concentric clamping of round shank tooling including end mills, drills, and reamers. The outer diameter measures 0.539 inches. Machining professionals rely on double angle collets for their rigidity and vibration resistance during high-speed cutting operations.

This collet is suited for production machining environments where consistent tool holding and repeatable runout are critical. It fits DA200 series collet chuck bodies commonly found on vertical machining centers and knee mills. The 9mm bore accommodates metric-shank tooling, making it a practical choice for shops running mixed metric and inch tooling inventories. Installation is performed by qualified machinists or CNC setup technicians as part of routine tool changes and spindle setup procedures.

Key Features

• DA200 collet series - fits DA200 series collet chuck bodies
• 9mm (0.3543 inch) bore for metric-shank cutting tools
• Overall length of 1.187 inches (30.15mm) for standard DA200 reach
• Outer diameter of 0.539 inches for proper chuck seating
• Double angle collet design provides rigid clamping and reduced vibration

Compatibility

Designed as a direct-fit replacement or additional collet for DA200 series collet chuck bodies used in CNC and manual milling applications.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. Power down and lock out the machine spindle before inserting or removing any collet. Inspect the collet and chuck bore for chips or debris before seating the collet. Do not exceed the chuck manufacturer's recommended clamping torque for the collet nut.
