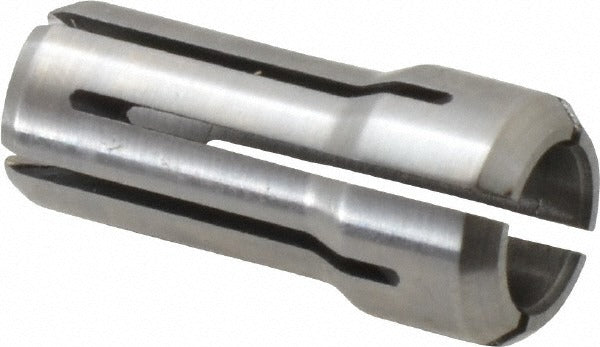

Parlec DA200-0343 Double Angle Collet DA200 11/32 in

Product Description

The PARLEC DA200-0343 is a Double Angle (DA) collet in the DA200 series, designed to hold cutting tools and workpieces in CNC machining centers, milling machines, and drilling applications. It accepts tool shanks in the 11/32-inch size range, with a minimum collet capacity of 0.3281 inches and a maximum of 0.3438 inches. The overall length is 1.187 inches and the overall diameter is 0.539 inches. This collet is installed and serviced by machinists and tool-room technicians working in precision machining environments.

The DA200-0343 is suited for use in production and job-shop machining operations where the DA200 collet system is specified. It fits DA200-compatible collet chucks and is commonly used in light-to-medium milling, drilling, and reaming setups. The compact overall length makes it appropriate for applications where minimal tool projection is required.

Key Features

• DA200 collet series for use with DA200-compatible collet chucks
• 11/32-inch nominal size with a capacity range of 0.3281 to 0.3438 inches
• Overall length of 1.187 inches for compact tool projection
• Overall diameter of 0.539 inches
• Double angle collet design provides secure clamping force on round tool shanks

Compatibility

Designed as an OEM-style replacement or direct-fit collet for DA200-series collet chuck systems used in CNC and manual milling and drilling machine setups.

Installation Notes

Installation should be performed by a qualified machinist or tool-room technician. Always power down and lock out the machine spindle before removing or installing collets. Inspect the collet bore and chuck taper for chips, wear, or damage before seating the collet. Use the appropriate collet nut and torque wrench as specified by the collet chuck manufacturer.
