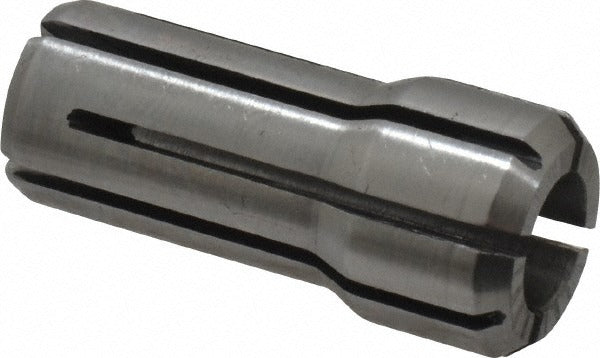

Parlec DA200-0296 Double Angle Collet DA200 19/64 in

Product Description

The PARLEC DA200-0296 is a double angle collet designed for use in DA200 series collet chucks on CNC machining centers and manual milling machines. It provides secure, concentric workholding for round cutting tools and round-shank tooling. The collet accepts shank diameters from 0.2812 inches minimum to 0.2969 inches maximum capacity, covering the standard 19/64 inch nominal size. Overall length is 1.187 inches and overall diameter is 0.539 inches. Licensed machinists and toolroom technicians install this collet as part of a toolholding assembly for precision milling, drilling, and reaming operations.

This collet is suited for production and job-shop environments where the DA200 collet system is in use. It fits standard DA200 collet chucks and is appropriate for light to medium-duty cutting applications requiring accurate tool runout and repeatable tool positioning. The 19/64 inch capacity makes it a common selection when tooling with near-0.297 inch shanks is in use.

Key Features

• DA200 collet series - fits DA200 collet chucks
• 19/64 inch nominal size with 0.2812 to 0.2969 inch capacity range
• Overall length of 1.187 inches for compact toolholding assemblies
• Overall diameter of 0.539 inches
• Double angle design provides uniform clamping force distribution across the collet bore

Compatibility

Designed for use with DA200 series collet chucks. Verify chuck series compatibility before installation. No additional specific model compatibility data was provided.

Installation Notes

Installation is performed by qualified machinists or toolroom personnel. Ensure the spindle is fully stopped and the machine is powered down before changing collets. Clean the chuck bore and collet taper surfaces before seating the collet to prevent runout caused by chips or debris. Use the appropriate DA200 collet nut and torque to the chuck manufacturer's specified procedure.
